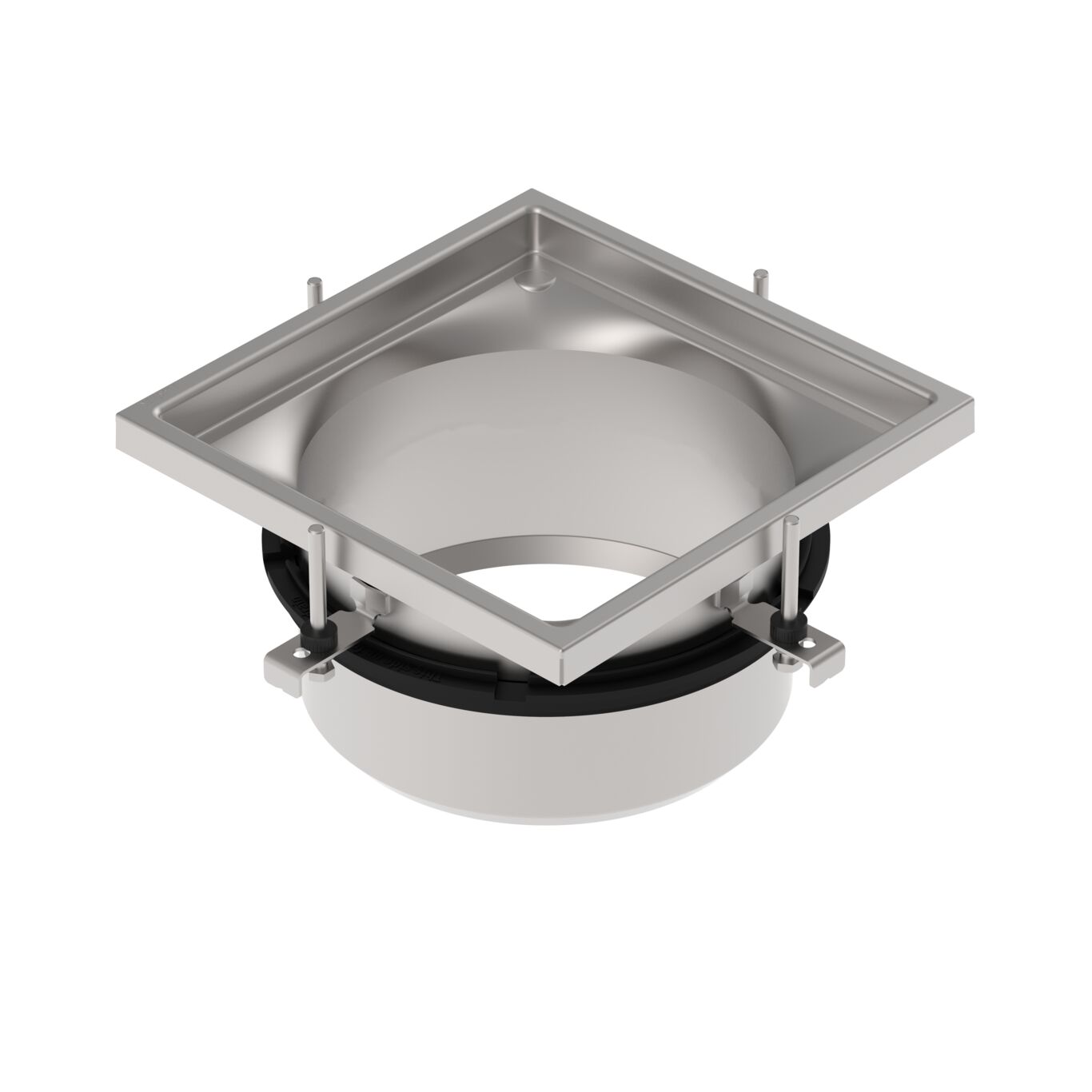

UPPER PART - (774.403.000 S)

Part Of the Series: Upper part-No membrane-300

Type no.: 774.403.000 S

EAN no.: 5705499112122

VVS no.: 153018322

LVI no.: 3303827

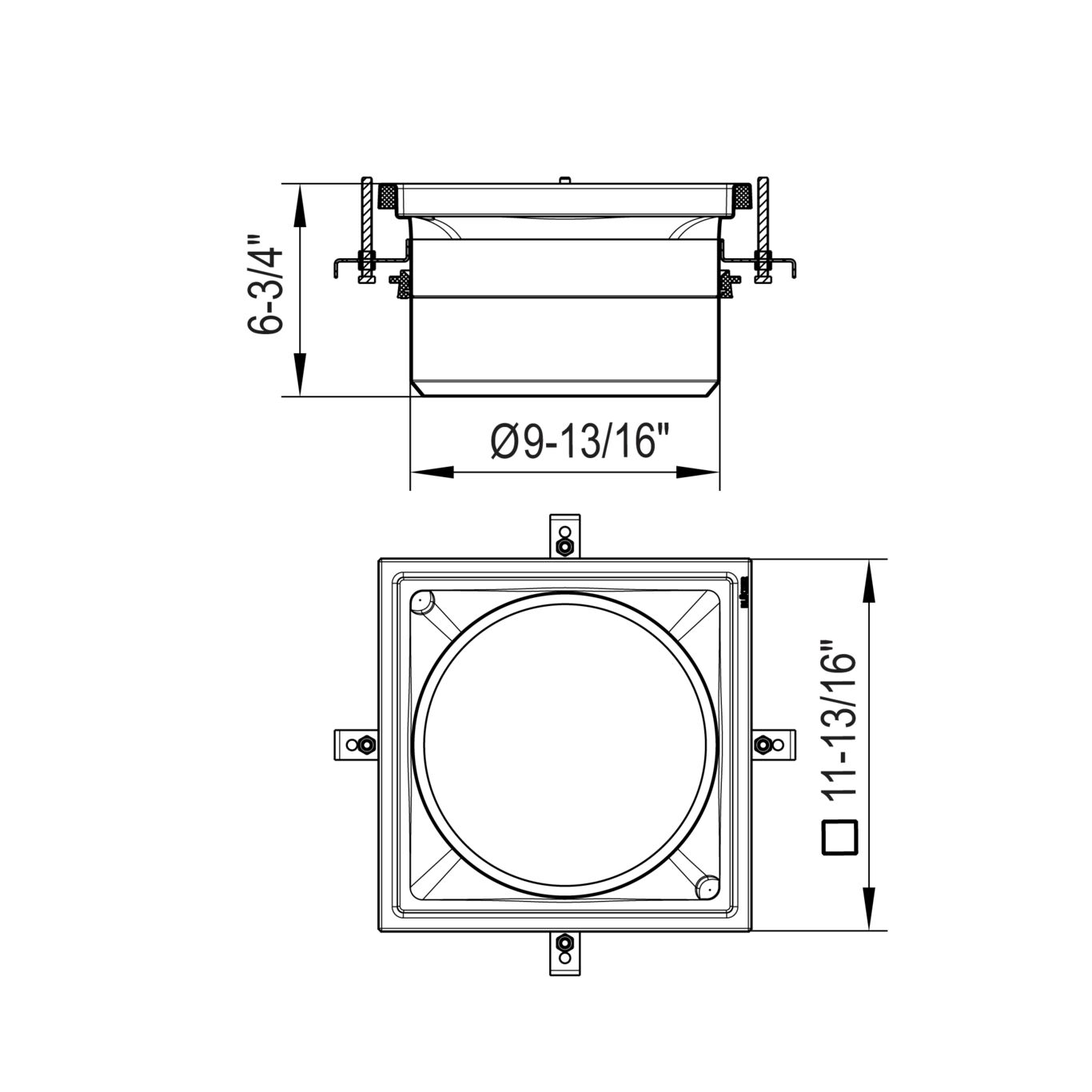

Size: 300x300


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 316L
Material (EN) EN 1.4404
Number of Screw Holes 0
Outlet dia. (mm) 250
Outlet Diameter (Inch) 10
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 3.77
Weight (lbs) 8.31
