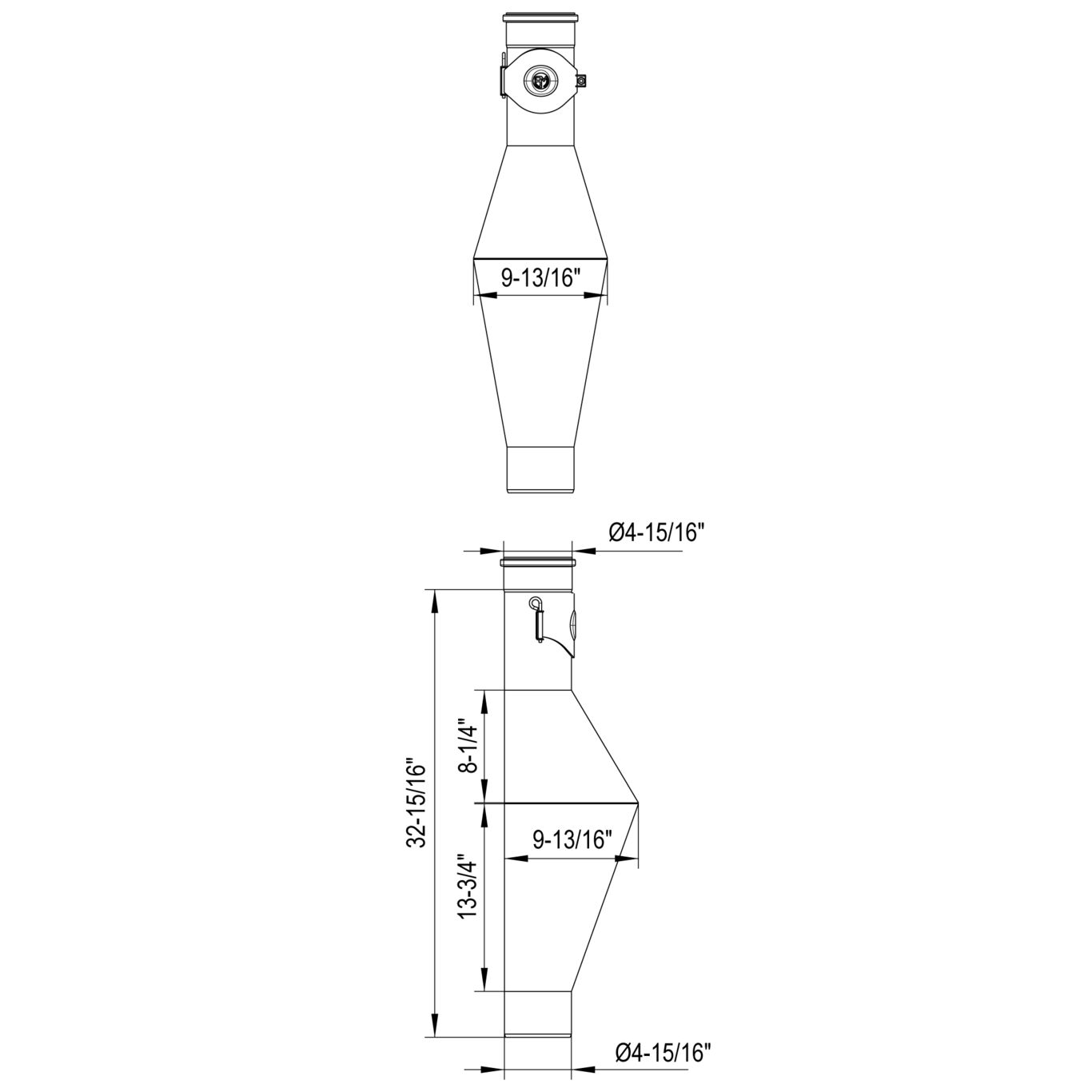

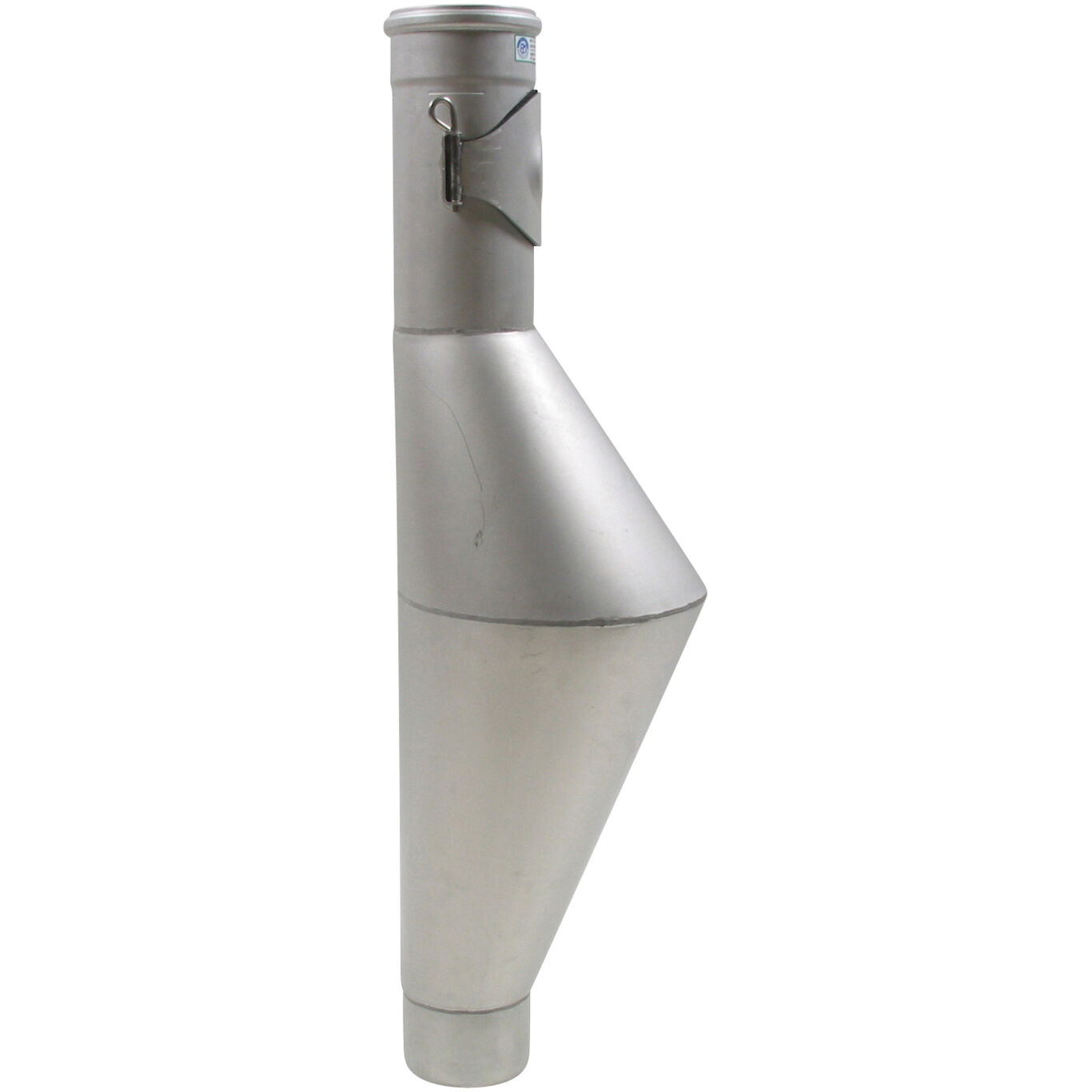

RAT STOP, WITH ACCESS - (891.125.125)

Part Of the Series: Rat stop-access

Type no.: 891.125.125

EAN no.: 5705499413496

VVS no.: 154321125

LVI no.: 0246038


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Length (mm) 836
Material AISI 304
Material (EN) EN 1.4301
Outlet dia. (mm) 125
Outlet Diameter (Inch) 5
Weight (kg) 5.56
Weight (lbs) 12.26
