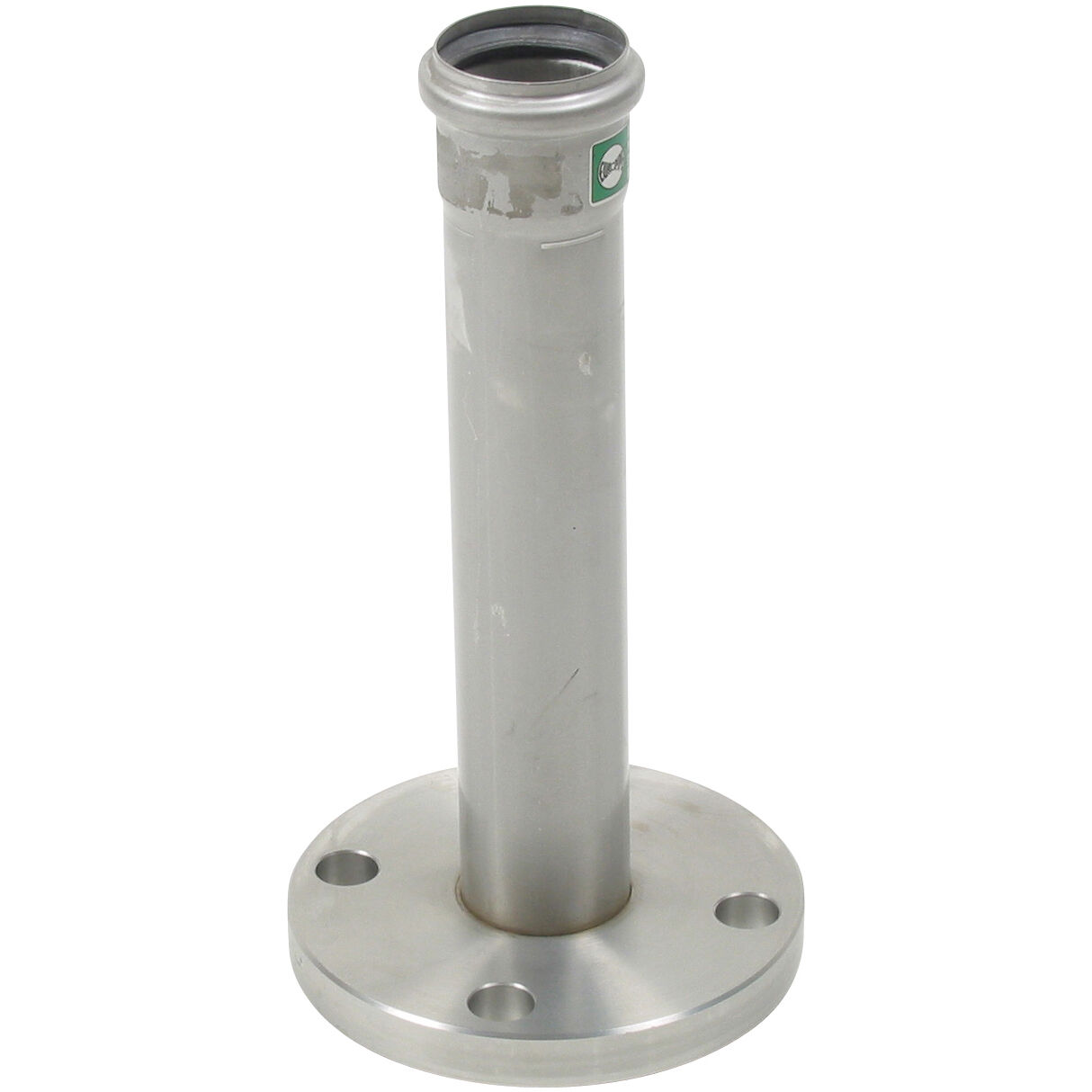

ANSI FLANGE ADAPTOR WITH SOCKET - (854.025.040 S)
×
![]()
Part Of the Series: Adaptor-flange-ANSI
Type no.: 854.025.040 S
EAN no.: 5705499413243
NRF no.: 2172714
ANSI FLANGE ADAPTOR WITH SOCKET
-Diameter: Ø40mm
-Flange ANSI B16.5
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 250 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 292 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 2.56 |
| Weight (lbs) | 5.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
