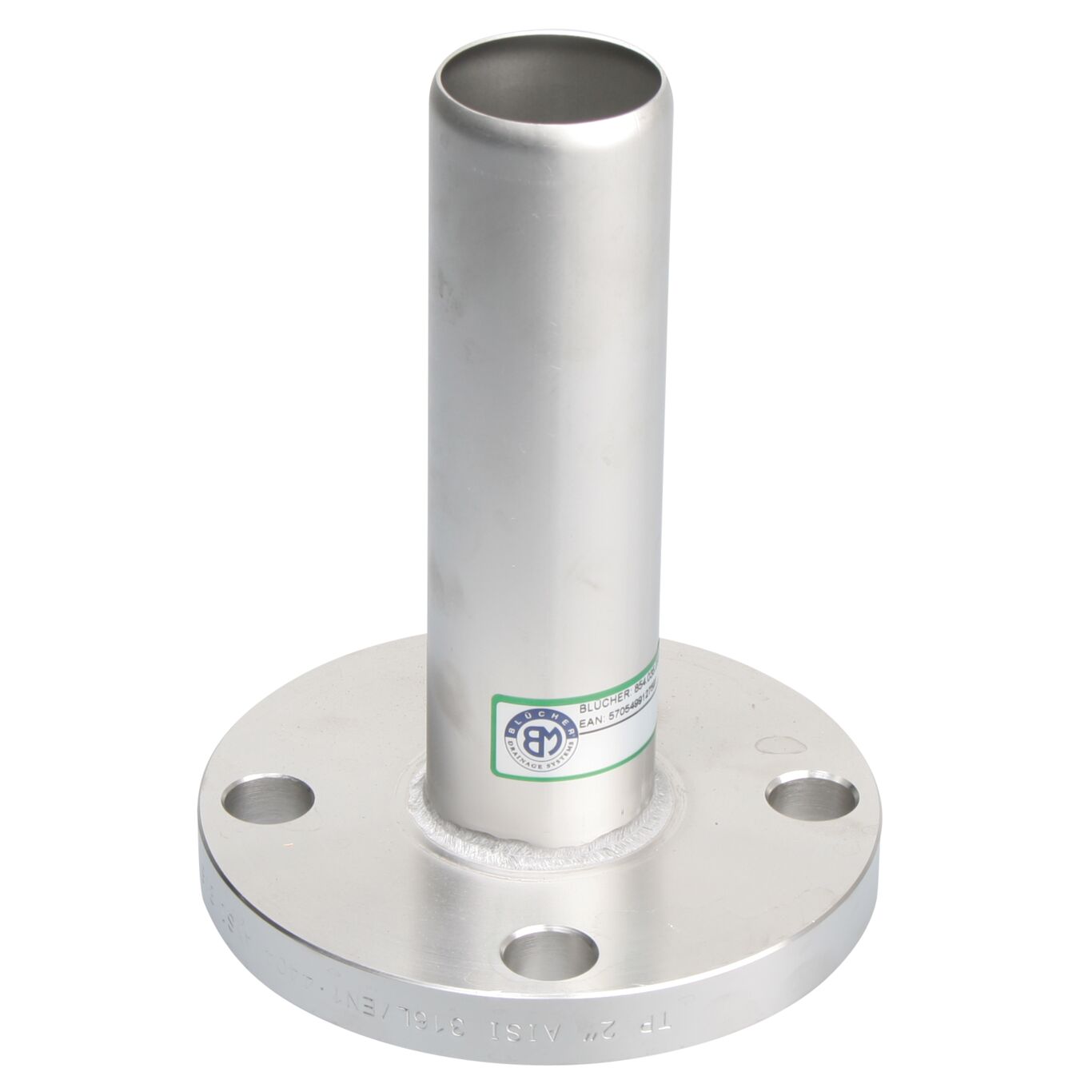

ANSI FLANGE ADAPTOR WITH SPIGOT - (854.035.050 S)
×
![]()
Part Of the Series: Adaptor-flange-ANSI
Type no.: 854.035.050 S
EAN no.: 5705499127591
NRF no.: 2172719
ANSI FLANGE ADAPTOR WITH SPIGOT
-Diameter: Ø50mm
-Flange ANSI B16.5
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 197 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 2.39 |
| Weight (lbs) | 5.27 |
-
Approval Information
For approval information, please refer to the below approval certificates.
