UNIVERSAL FLANGE WITH SPIGOT - (854.510.050 S)
×
![]()
Part Of the Series: Adaptor-flange-universal
Type no.: 854.510.050 S
EAN no.: 5705499138887
NRF no.: 2172733

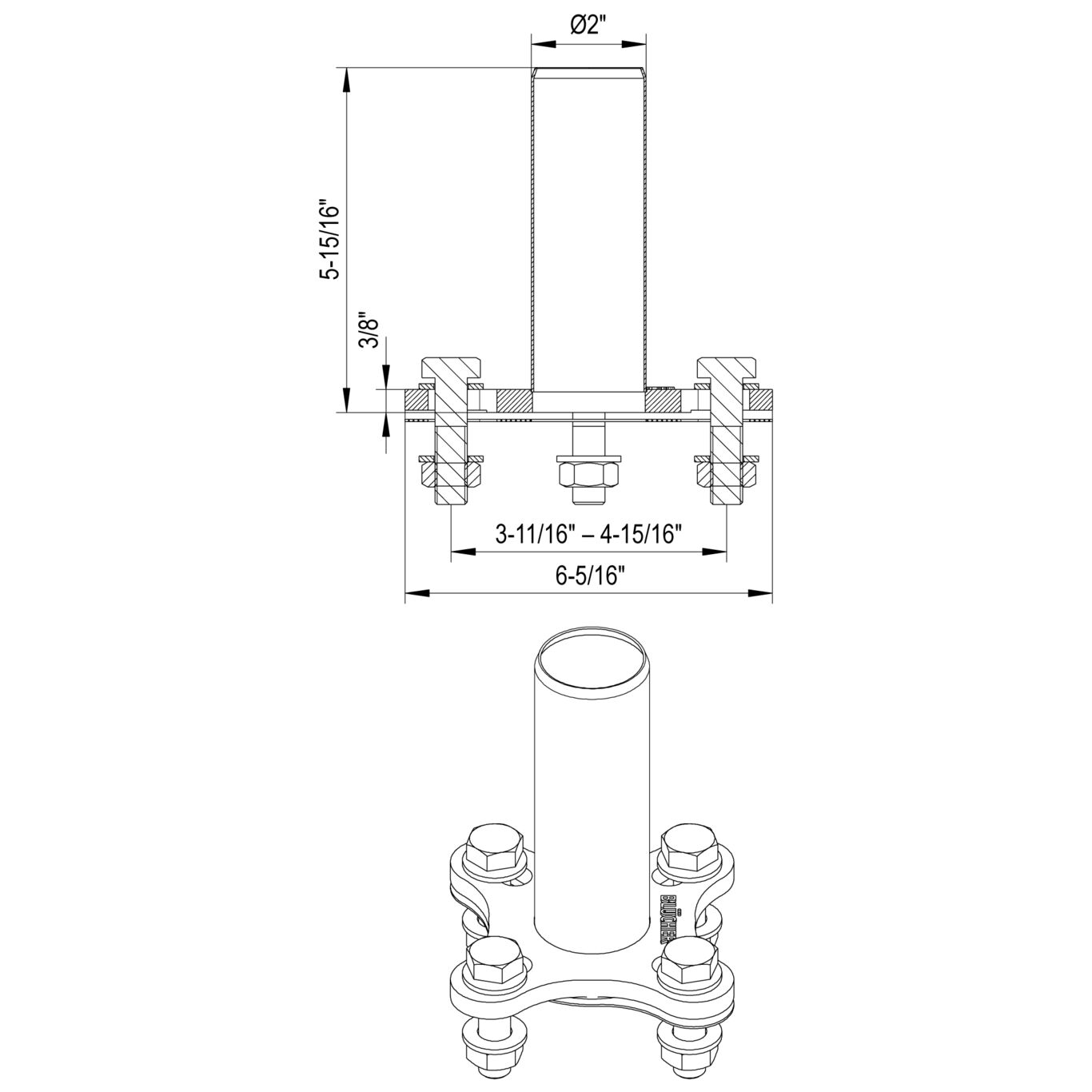

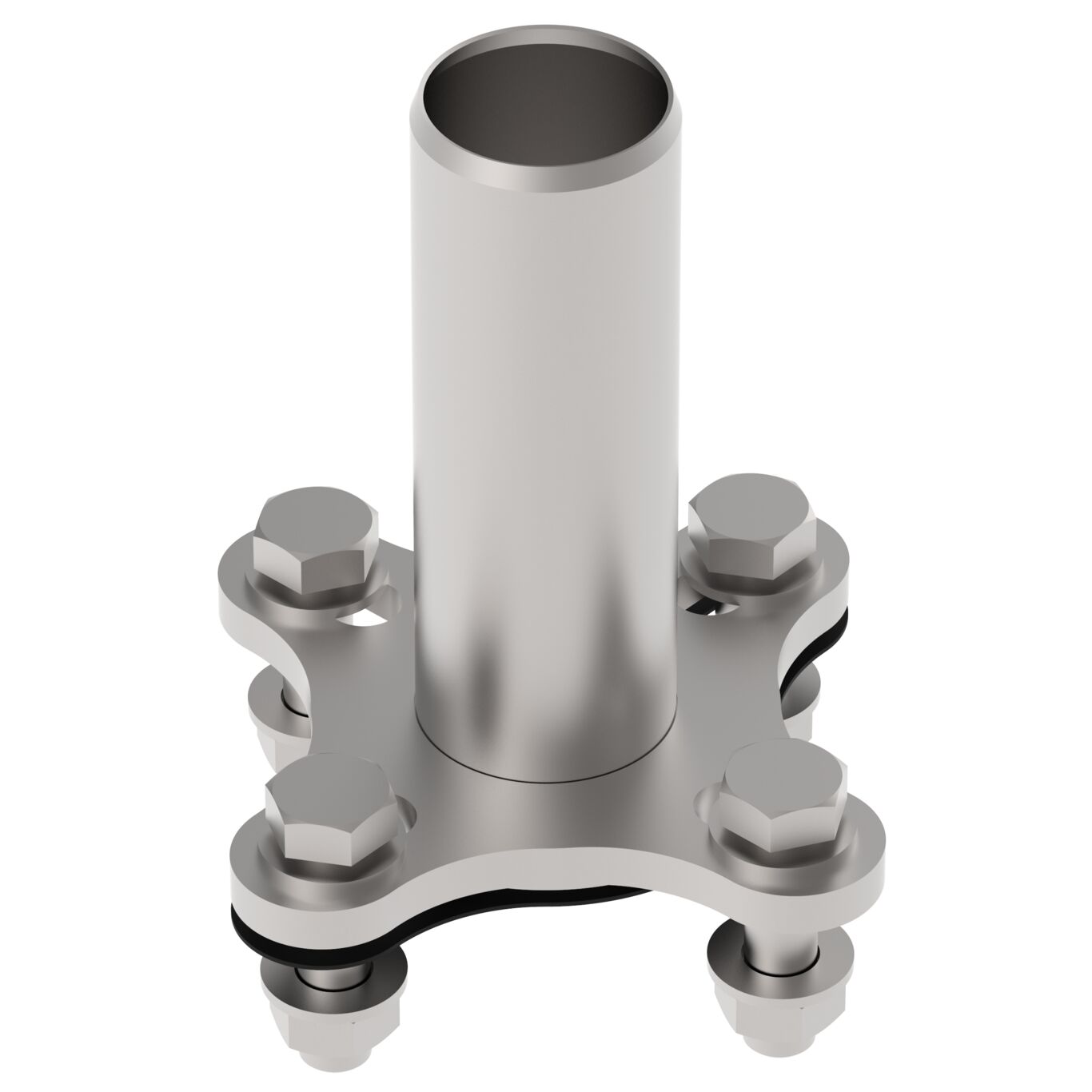

UNIVERSAL FLANGE WITH SPIGOT
-Diameter: Ø50mm
-Equivalent to ANSI 2" / JIS40-50 5K-10K / DIN DN40-50 PN6-16
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Number of Bolts | 4 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.95 |
| Weight (lbs) | 2.09 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
