UNIVERSAL FLANGE WITH SPIGOT - (854.510.110 S)
×
![]()
Part Of the Series: Adaptor-flange-universal
Type no.: 854.510.110 S
EAN no.: 5705499138924
NRF no.: 2172735

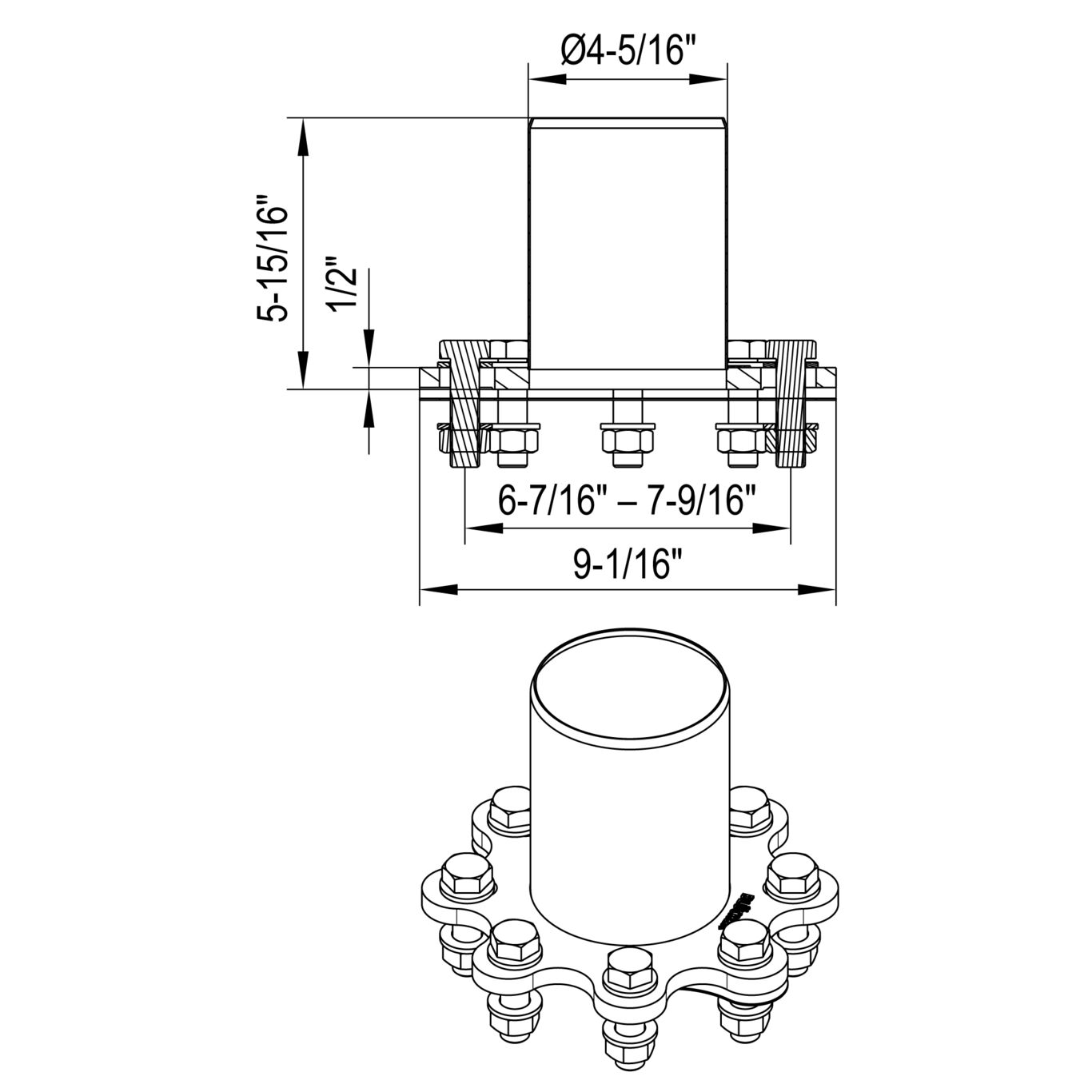

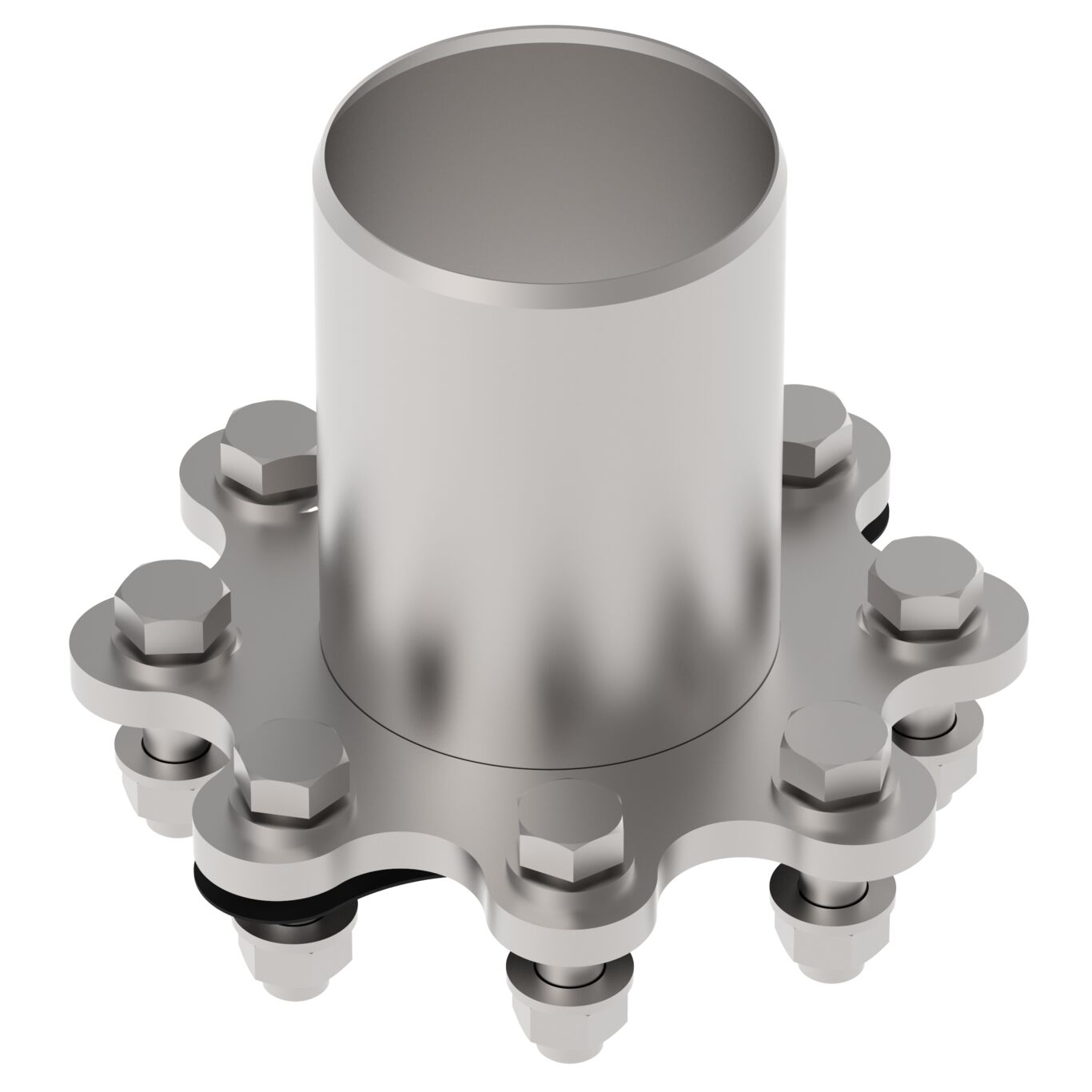

UNIVERSAL FLANGE WITH SPIGOT
-Diameter: Ø110mm
-Equivalent to ANSI 4" / JIS100 5K-10K / DIN DN100 PN6-16
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Number of Bolts | 8 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 2.32 |
| Weight (lbs) | 5.11 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
