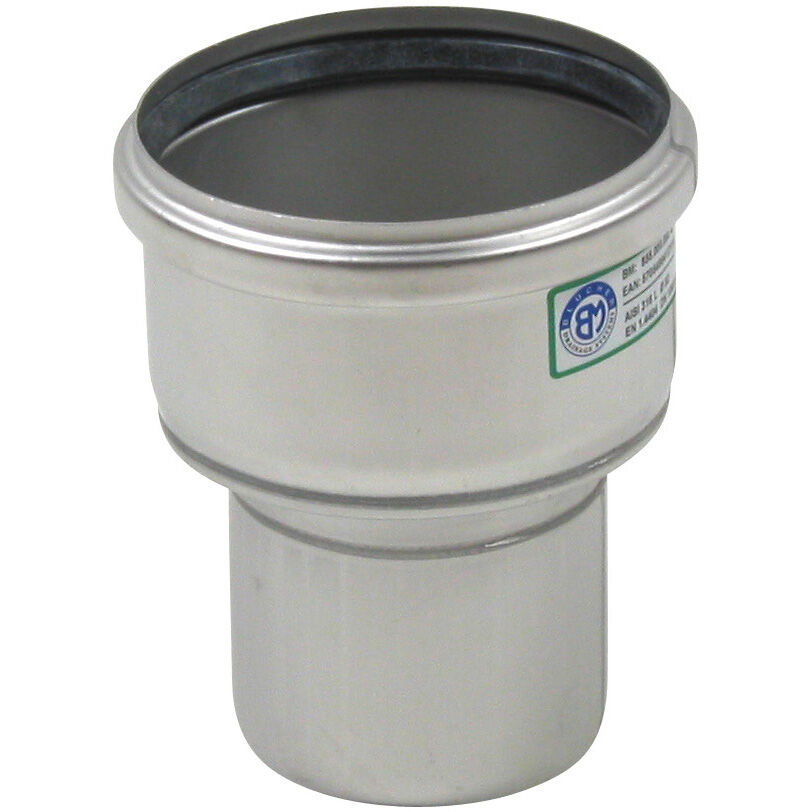

TOILET ADAPTOR STRAIGHT - (855.000.082 S)

Part Of the Series: Adaptor-toilet

Type no.: 855.000.082 S

EAN no.: 5705499412116

VVS no.: 160347382


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
All Renovation 82 Products RS82
Angle (°) 180
Length (mm) 90
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 147
Outlet dia. (mm) 82
Outlet Diameter (Inch) 3-1/4
Weight (kg) 0.41
Weight (lbs) 0.9
