BEND 15° - (820.015.125 S)
×
![]()
Part Of the Series: Bend-15
Type no.: 820.015.125 S
EAN no.: 5705499408614
VVS no.: 160209425
RSK no.: 1551170
NRF no.: 2170772
LVI no.: 0256078

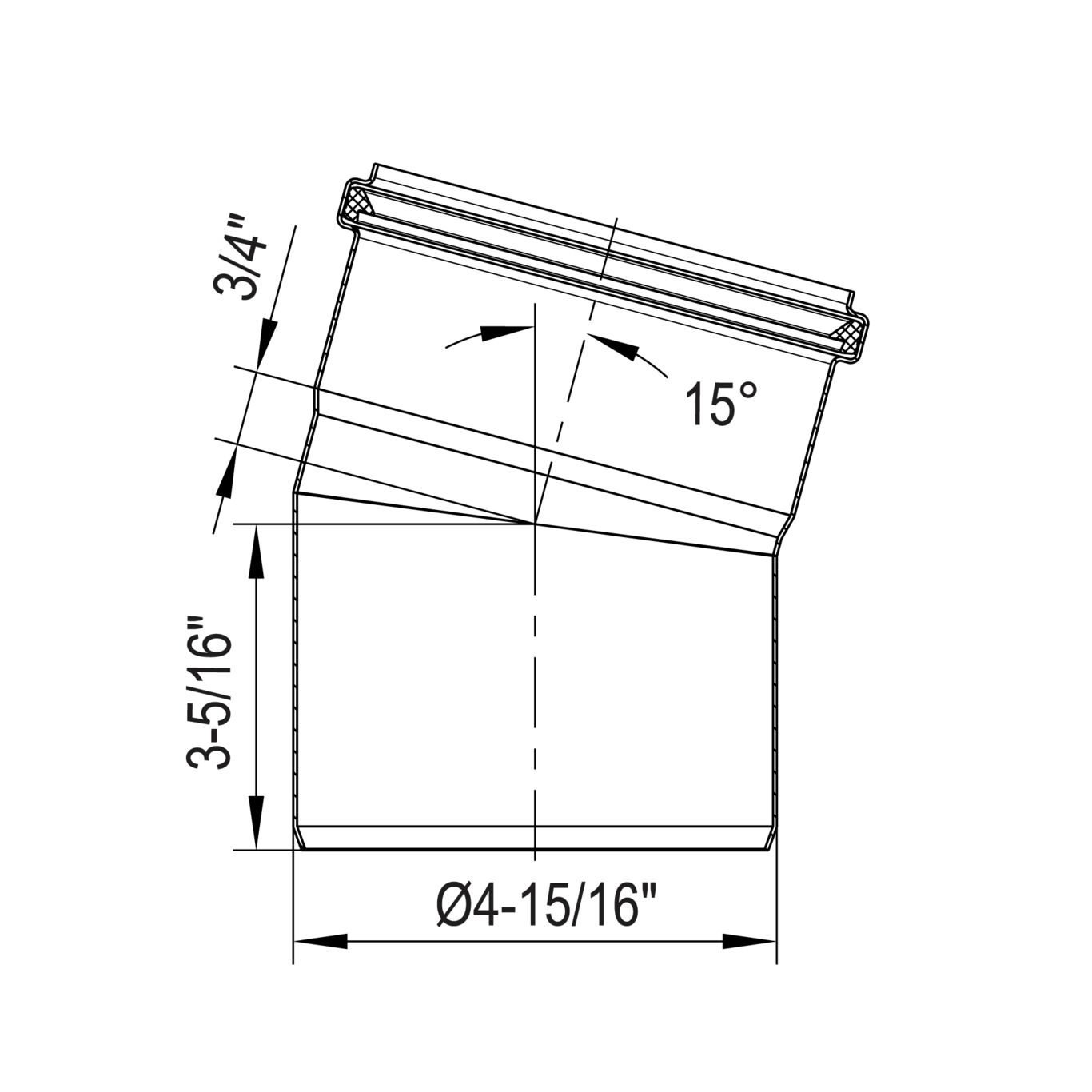

BEND 15°
-Diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 15 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Weight (kg) | 0.56 |
| Weight (lbs) | 1.23 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA
