BEND 30° - (820.030.250 S)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.250 S
EAN no.: 5705499121605
VVS no.: 160207550
RSK no.: 1552156
NRF no.: 2172522
LVI no.: 0250637

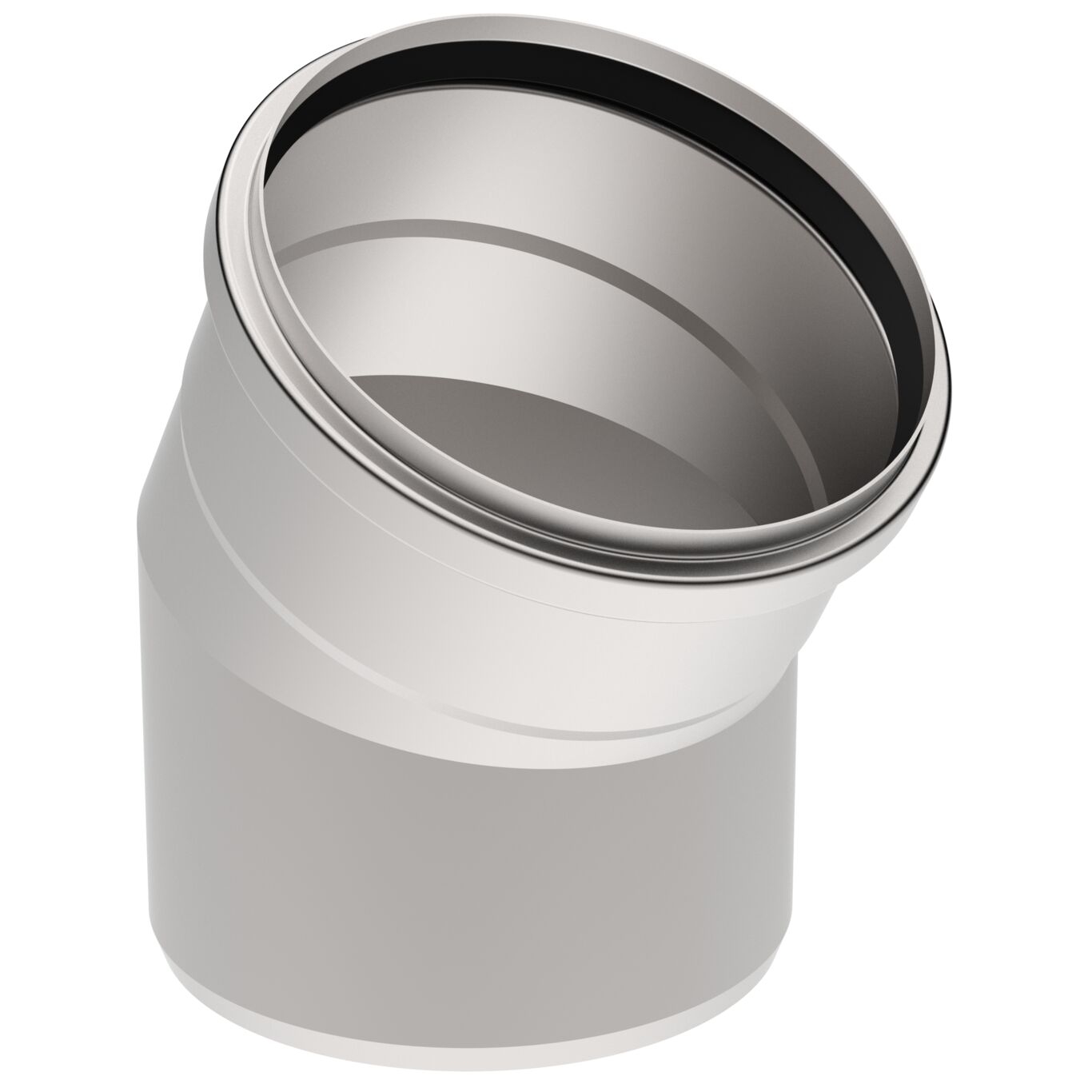

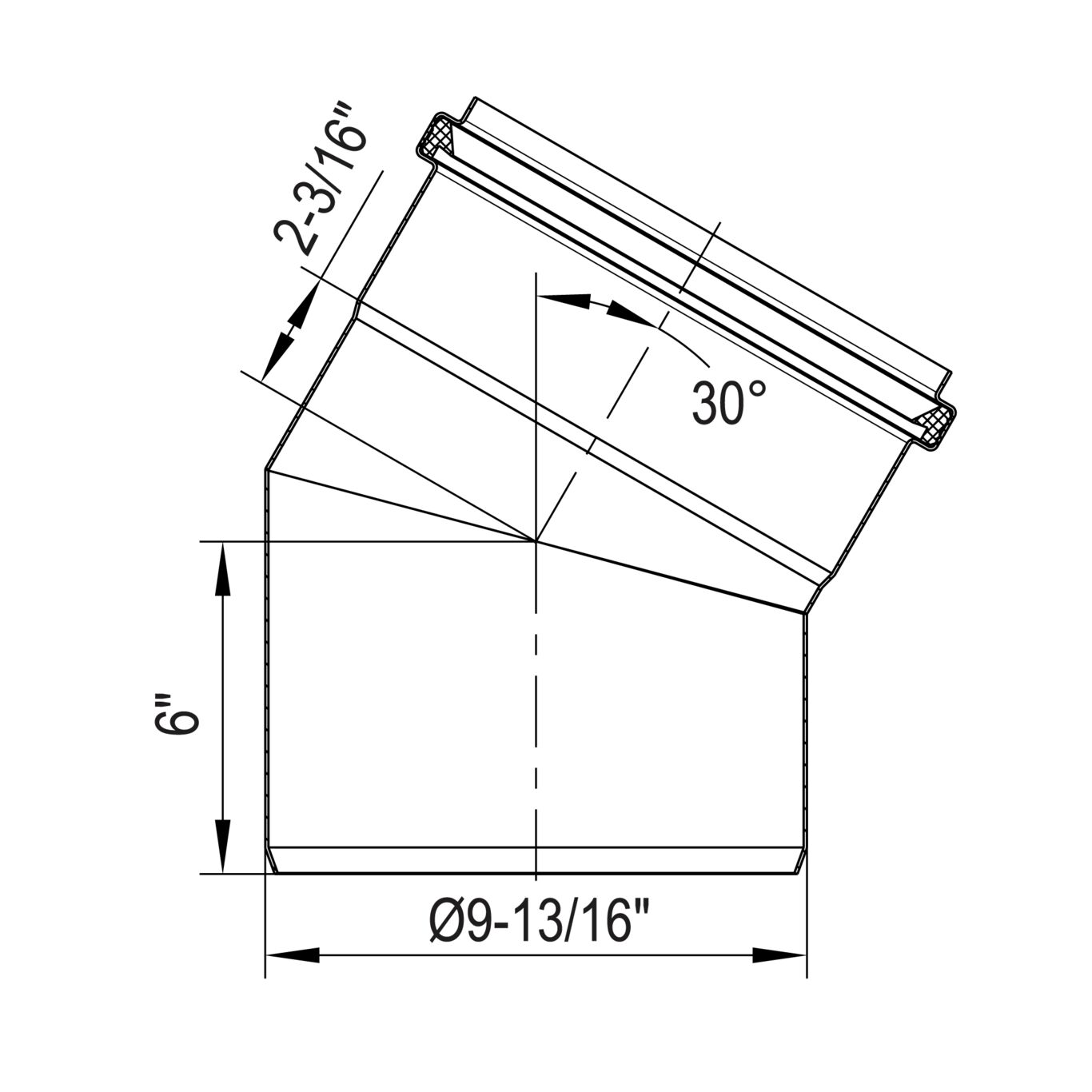

BEND 30°
-Diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Weight (kg) | 3.35 |
| Weight (lbs) | 7.39 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
