BEND 45° - (820.045.110 S)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.110 S
EAN no.: 5705499401356
VVS no.: 160205410
RSK no.: 1550291
NRF no.: 2170756
LVI no.: 0250684

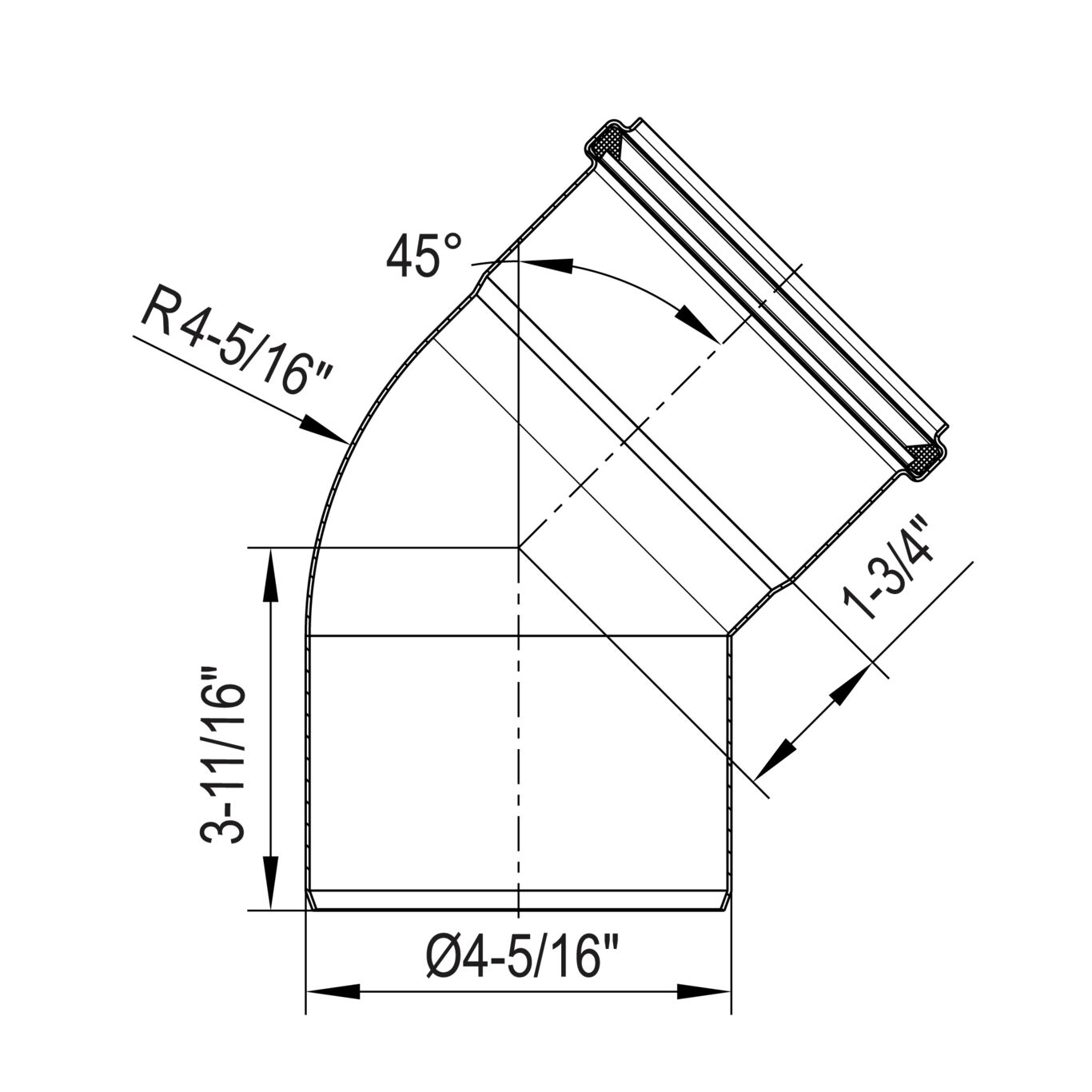

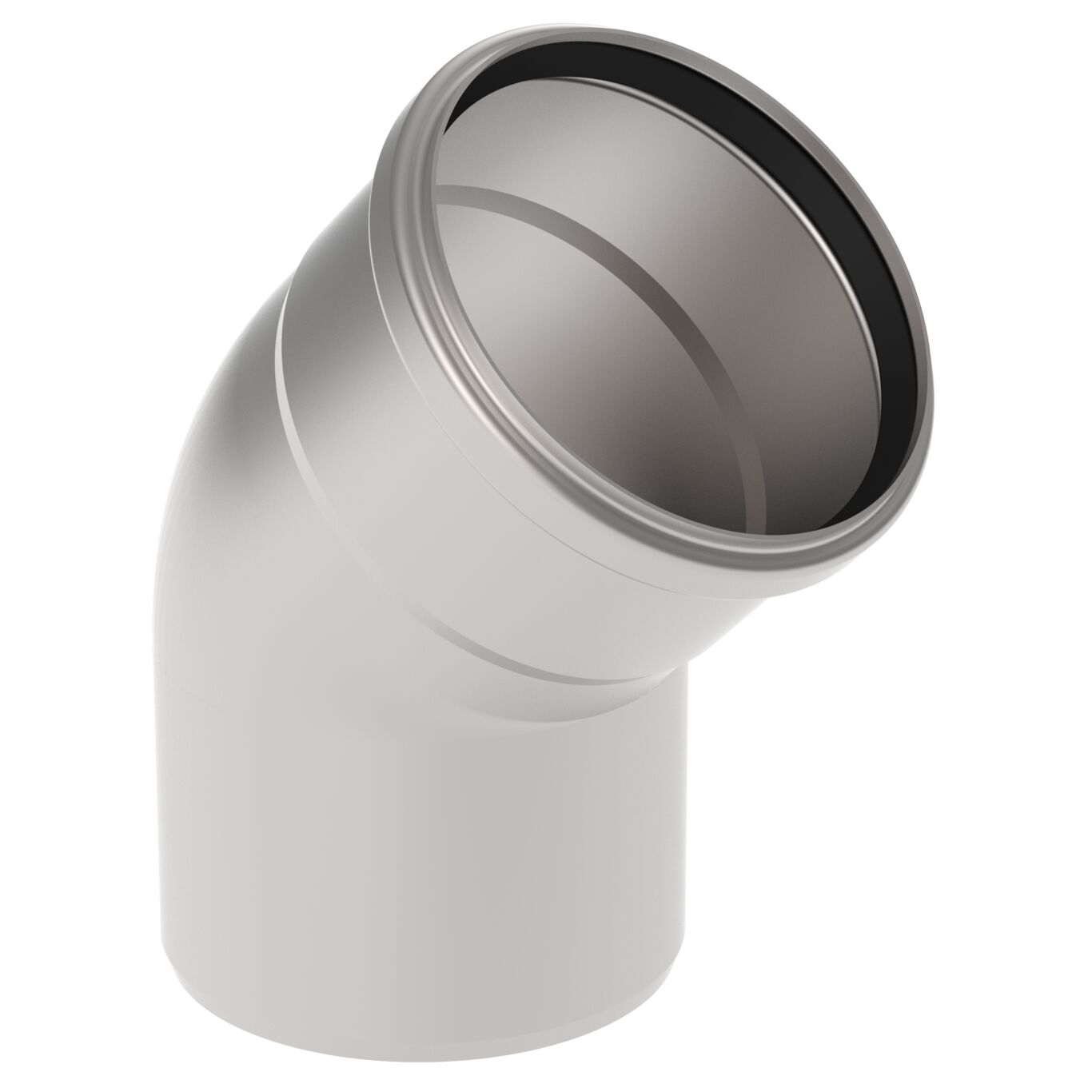

BEND 45°
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.56 |
| Weight (lbs) | 1.23 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Europe
