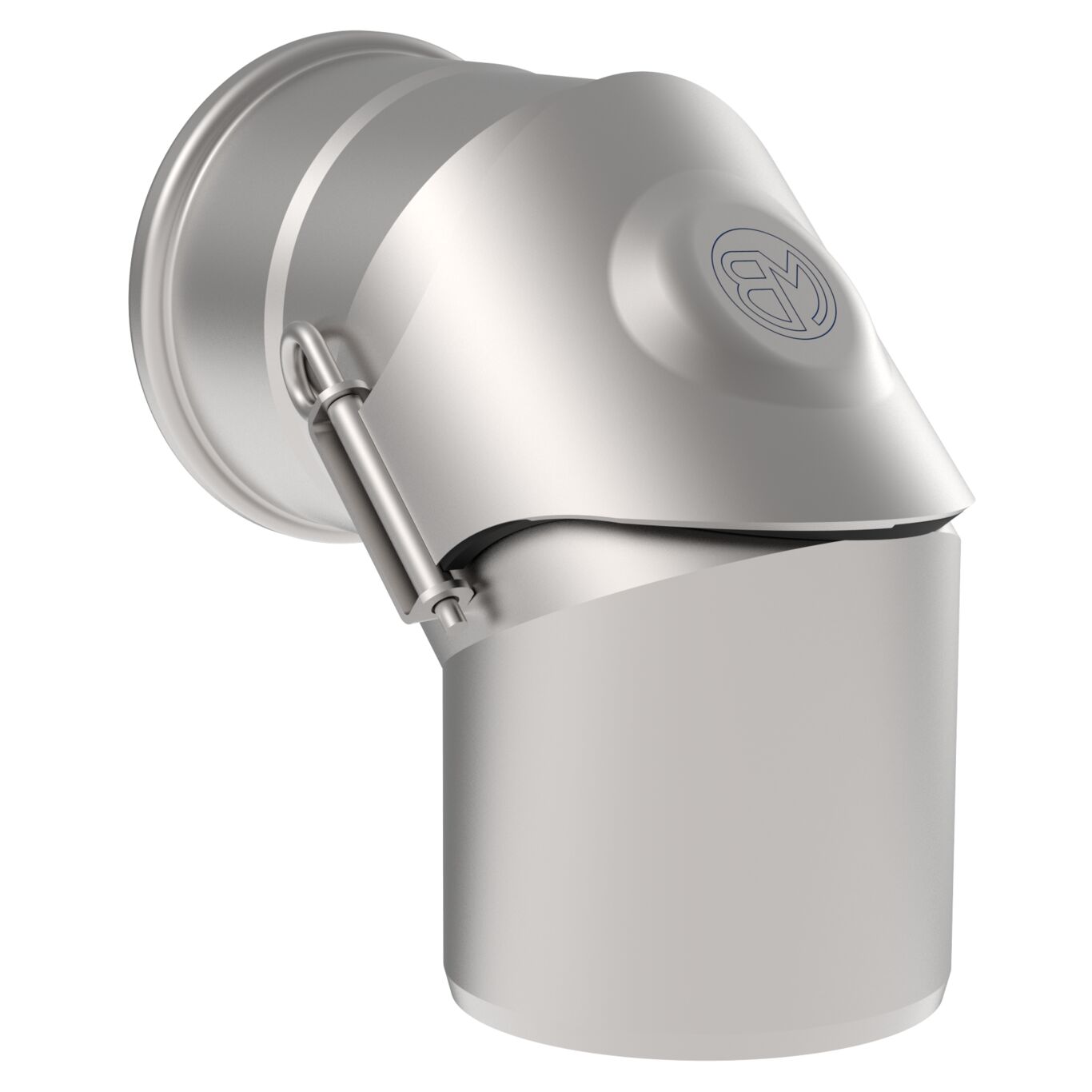

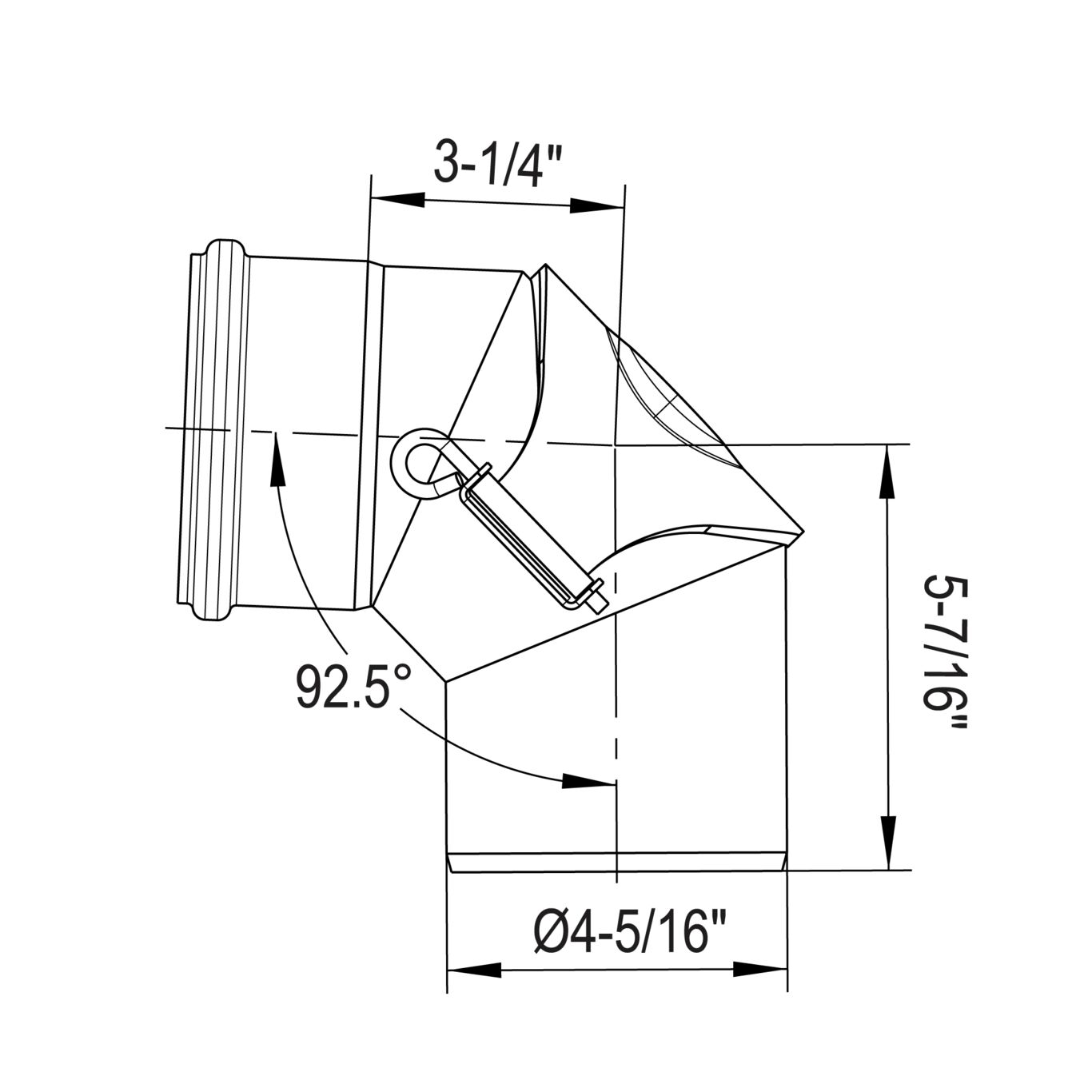

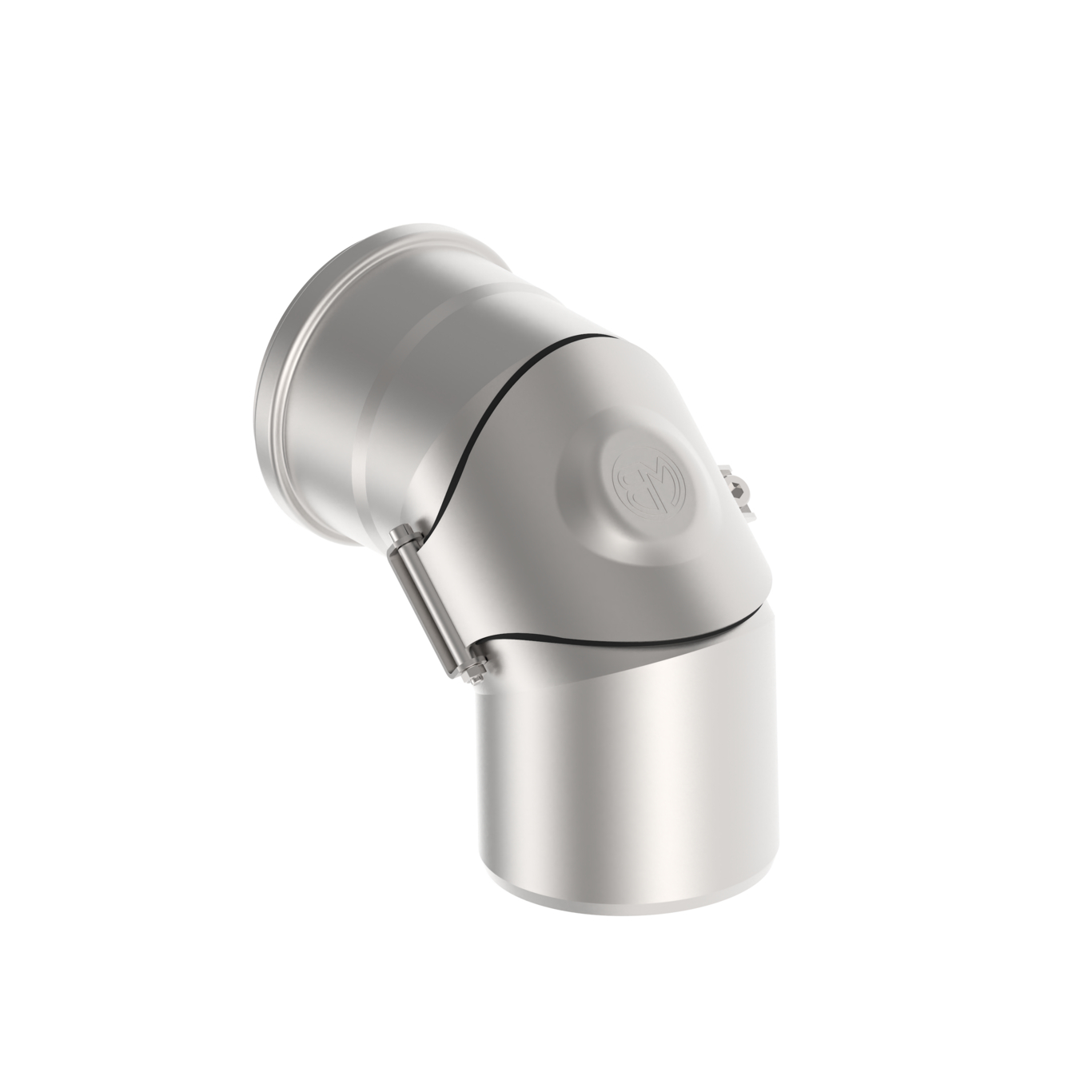

BEND 87.5° WITH ACCESS - (822.090.110 S)
×
![]()
Part Of the Series: Bend-87.5-access
Type no.: 822.090.110 S
EAN no.: 5705499401530
RSK no.: 1550282
NRF no.: 2172546
LVI no.: 0256035
BEND 87.5° WITH ACCESS
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.96 |
| Weight (lbs) | 2.12 |
-
Approval Information
For approval information, please refer to the below approval certificates.
