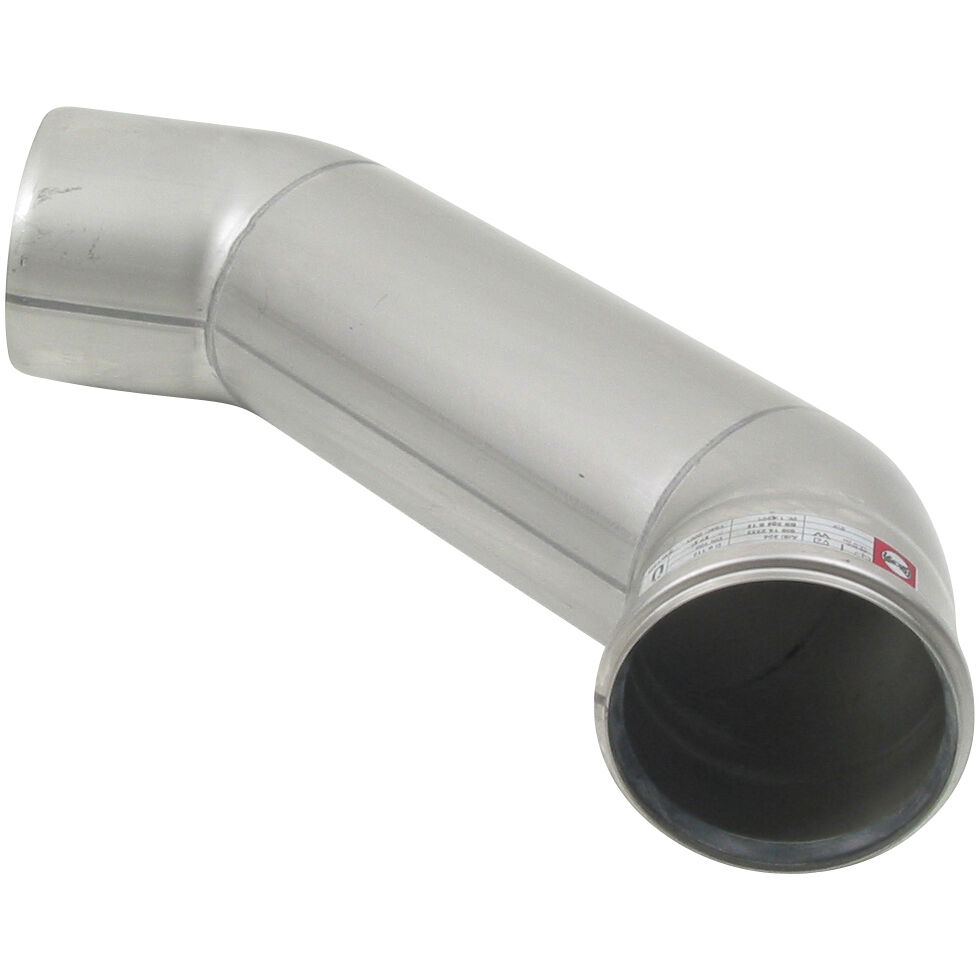

BEND, LONG 87.5°, 250 MM - (821.090.110)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.110
EAN no.: 5705499401462
VVS no.: 160211110
RSK no.: 1550083
NRF no.: 2172318
LVI no.: 0240854

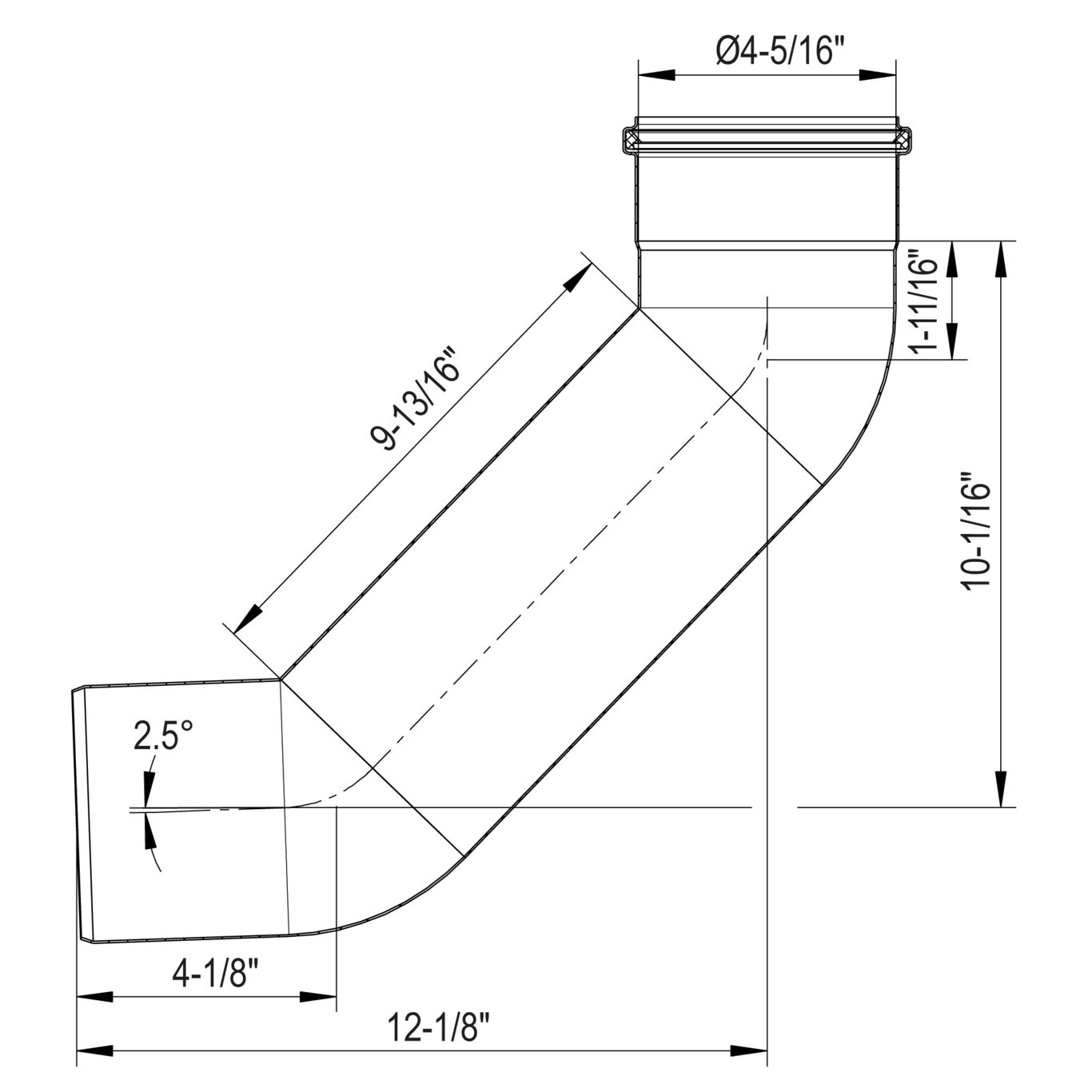

BEND, LONG 87.5°, 250 MM
-Diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 255 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1.61 |
| Weight (lbs) | 3.55 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19350
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24 KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA ABS - LD1716353-PDA
