OBLIQUE BRANCH 45° - (838.040.040)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.040.040
EAN no.: 5705499412994
VVS no.: 160224040
RSK no.: 1552788
NRF no.: 2171208
LVI no.: 0241151

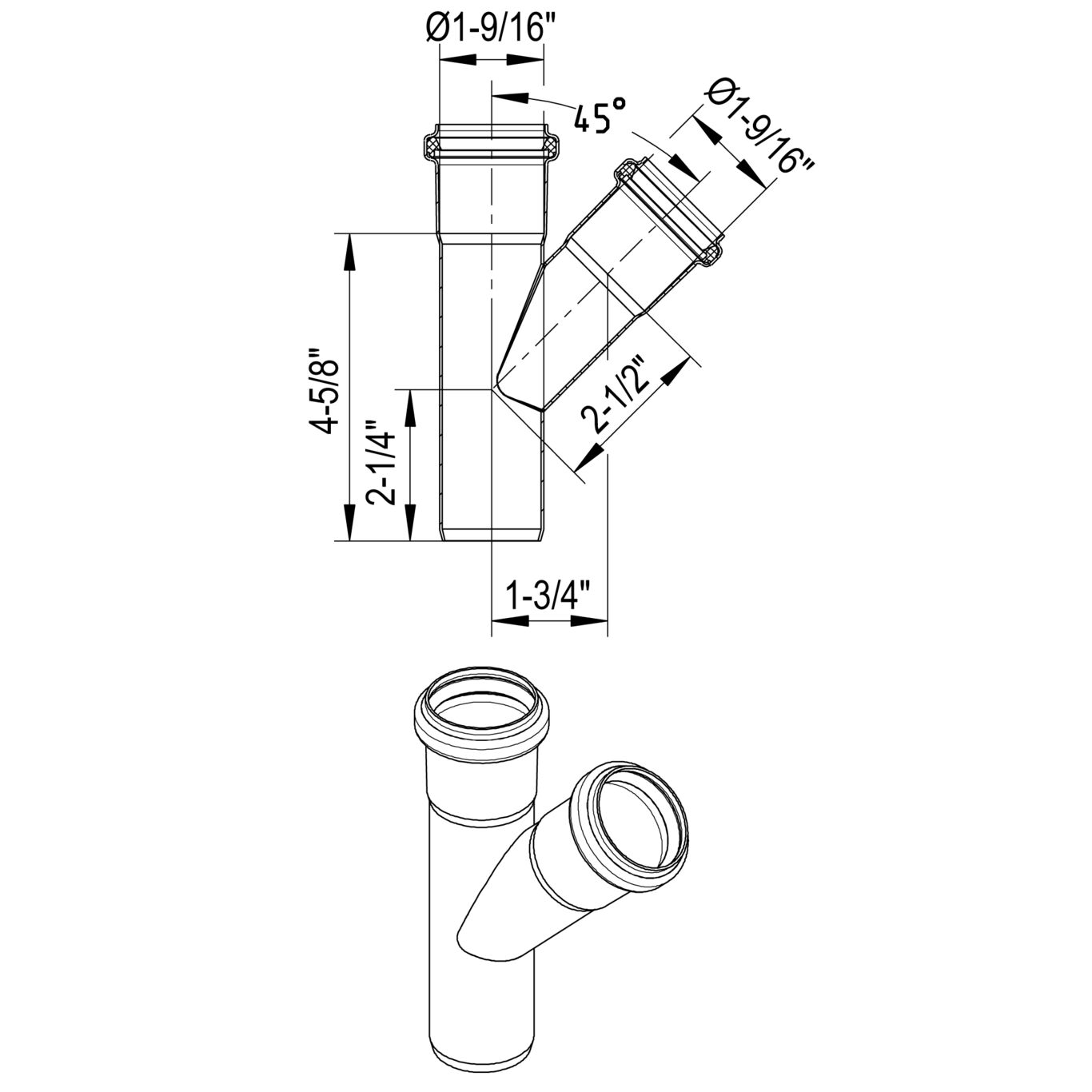

OBLIQUE BRANCH 45°
-Pipe diameter: Ø40mm. Branch diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 118 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 0.25 |
| Weight (lbs) | 0.55 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
