OBLIQUE BRANCH 45° - (838.110.125)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.110.125
EAN no.: 5705499409338
VVS no.: 160224124
RSK no.: 1551534
NRF no.: 2170117
LVI no.: 0246021

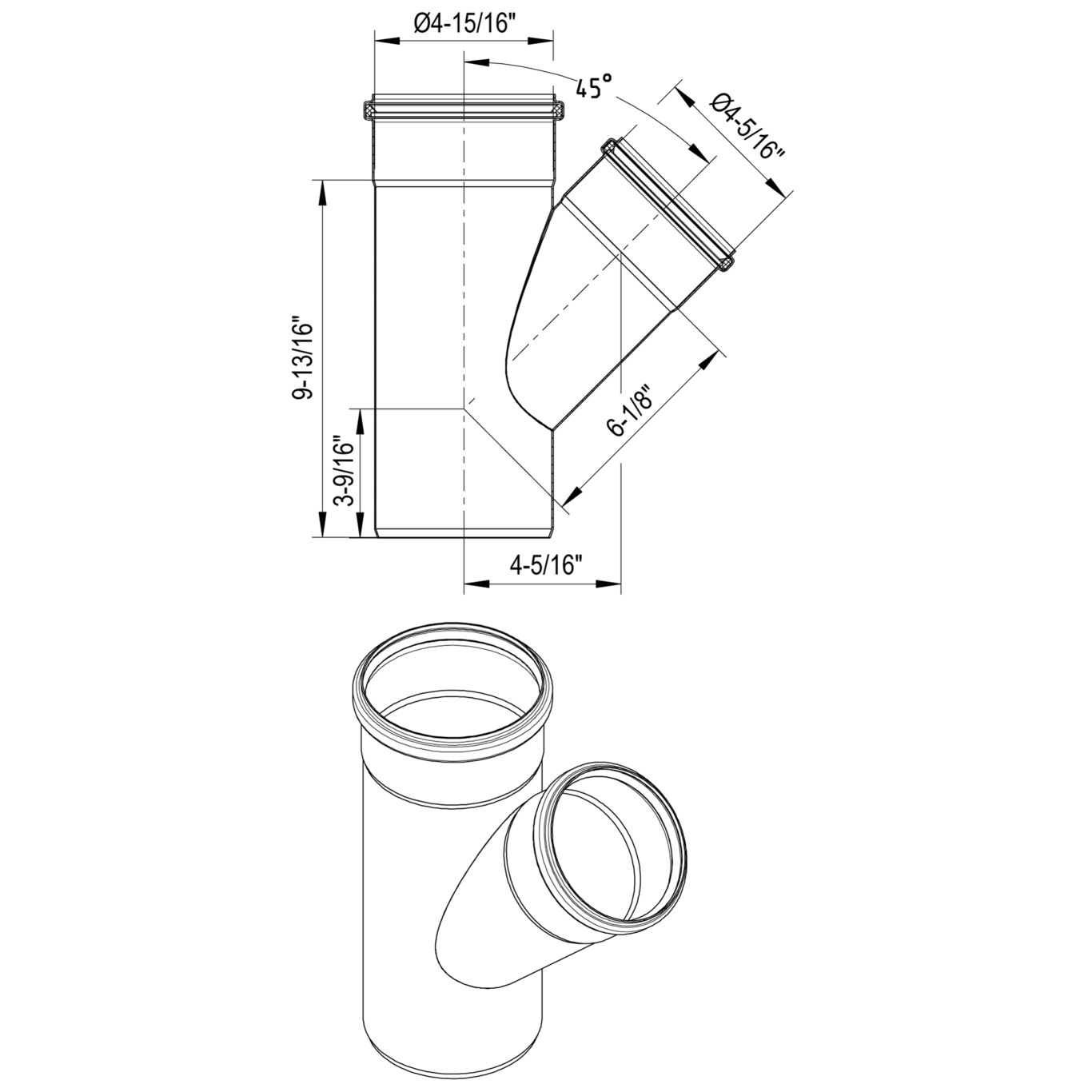

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Weight (kg) | 1.5 |
| Weight (lbs) | 3.31 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
