OBLIQUE BRANCH 45° - (838.250.250 S)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.250.250 S
EAN no.: 5705499121667
VVS no.: 160224550
RSK no.: 1552161
LVI no.: 0251171

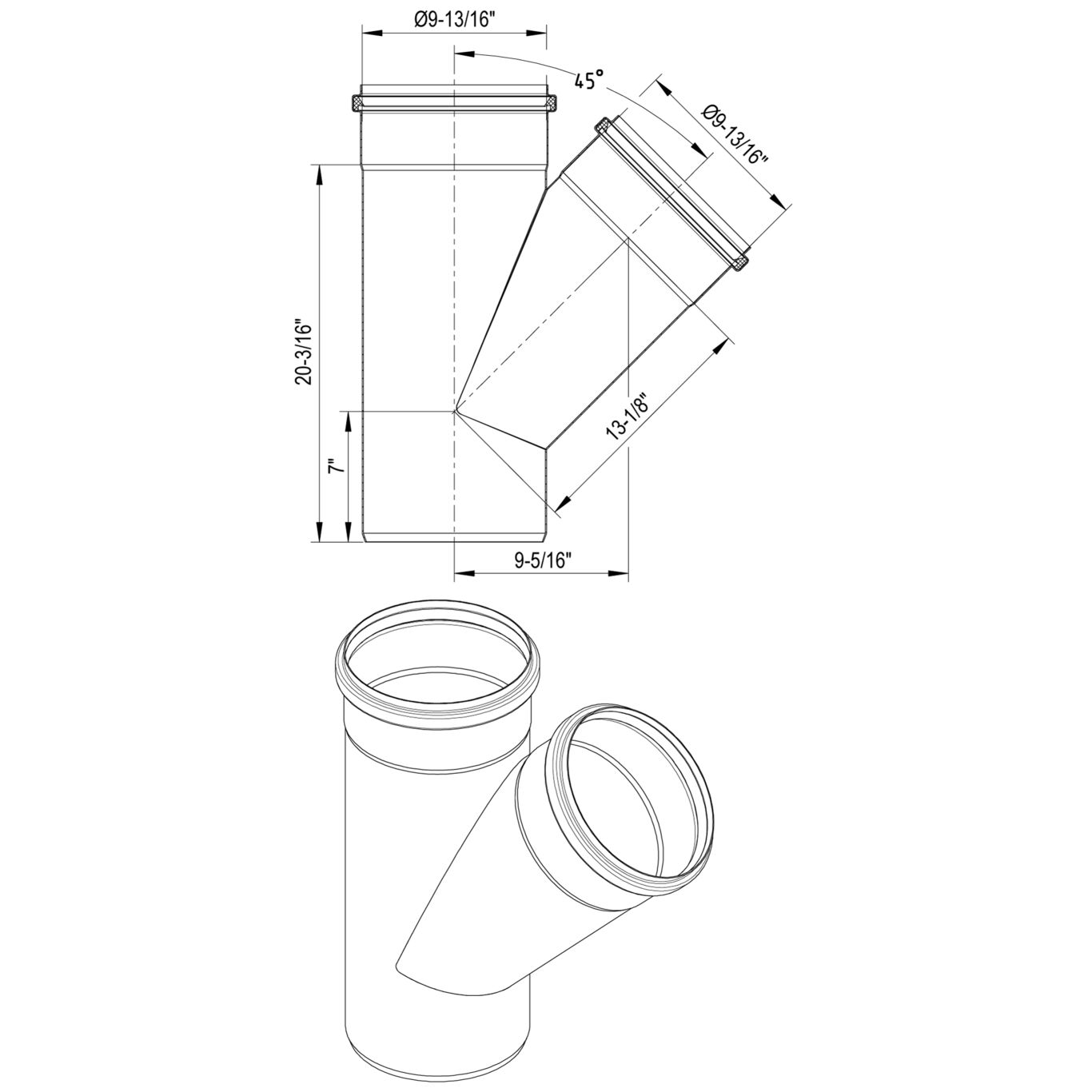

OBLIQUE BRANCH 45°
-Pipe diameter: Ø250mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 512 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Weight (kg) | 8.57 |
| Weight (lbs) | 18.89 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains RU - 0212322 Pipes-21 Achilles Certificate - 46702-22
