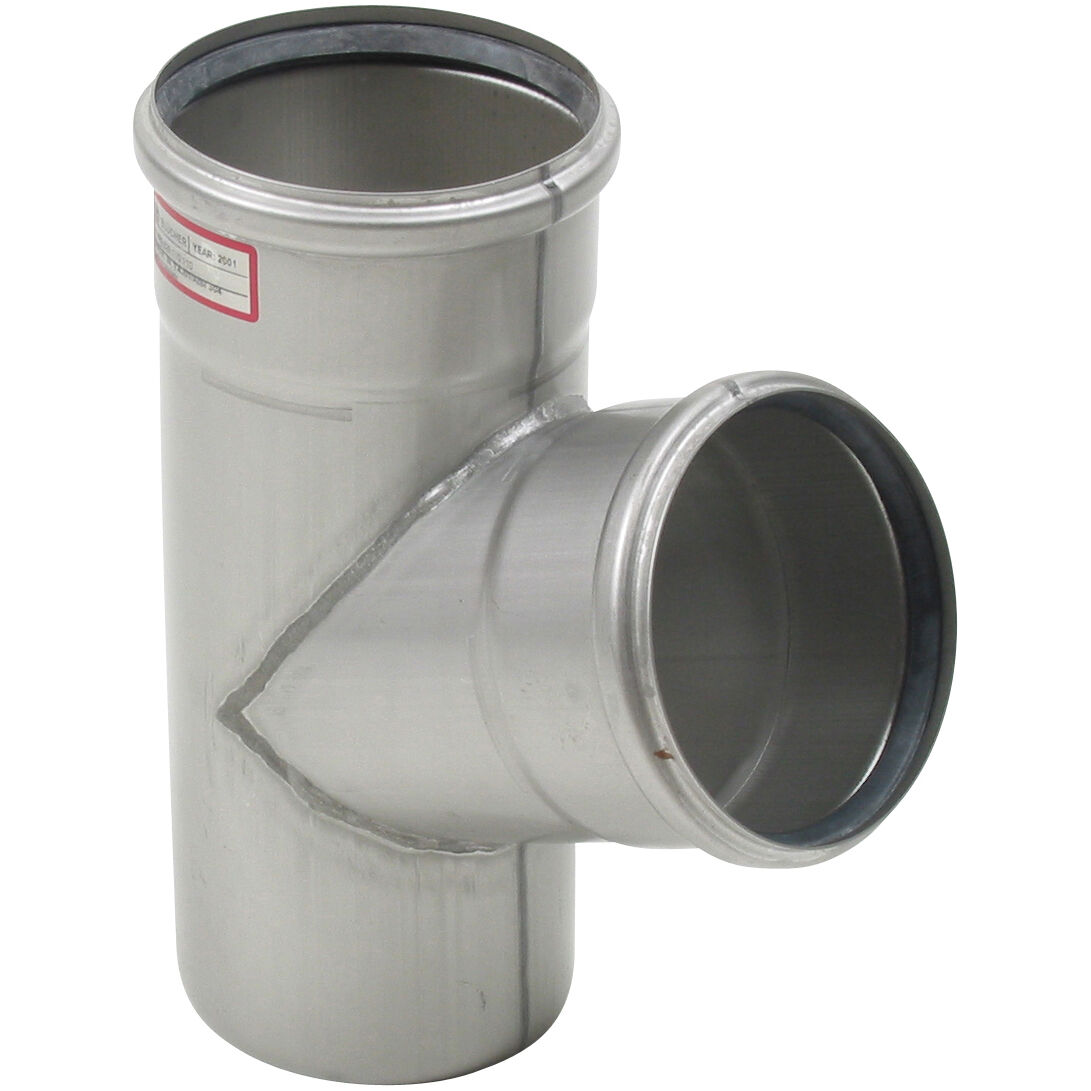

BRANCH 67.5° - (829.110.110)
×
![]()
Part Of the Series: Branch-67.5
Type no.: 829.110.110
EAN no.: 5705499403824
VVS no.: 160223110
LVI no.: 0246013
BRANCH 67.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 67.5 |
| Length (mm) | 209 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.88 |
| Weight (lbs) | 1.94 |
-
Approval Information
For approval information, please refer to the below approval certificates.
