BRANCH 87.5° - (830.200.200 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.200.200 S
EAN no.: 5705499411010
VVS no.: 160221500
RSK no.: 1551550
NRF no.: 2170822
LVI no.: 0251969

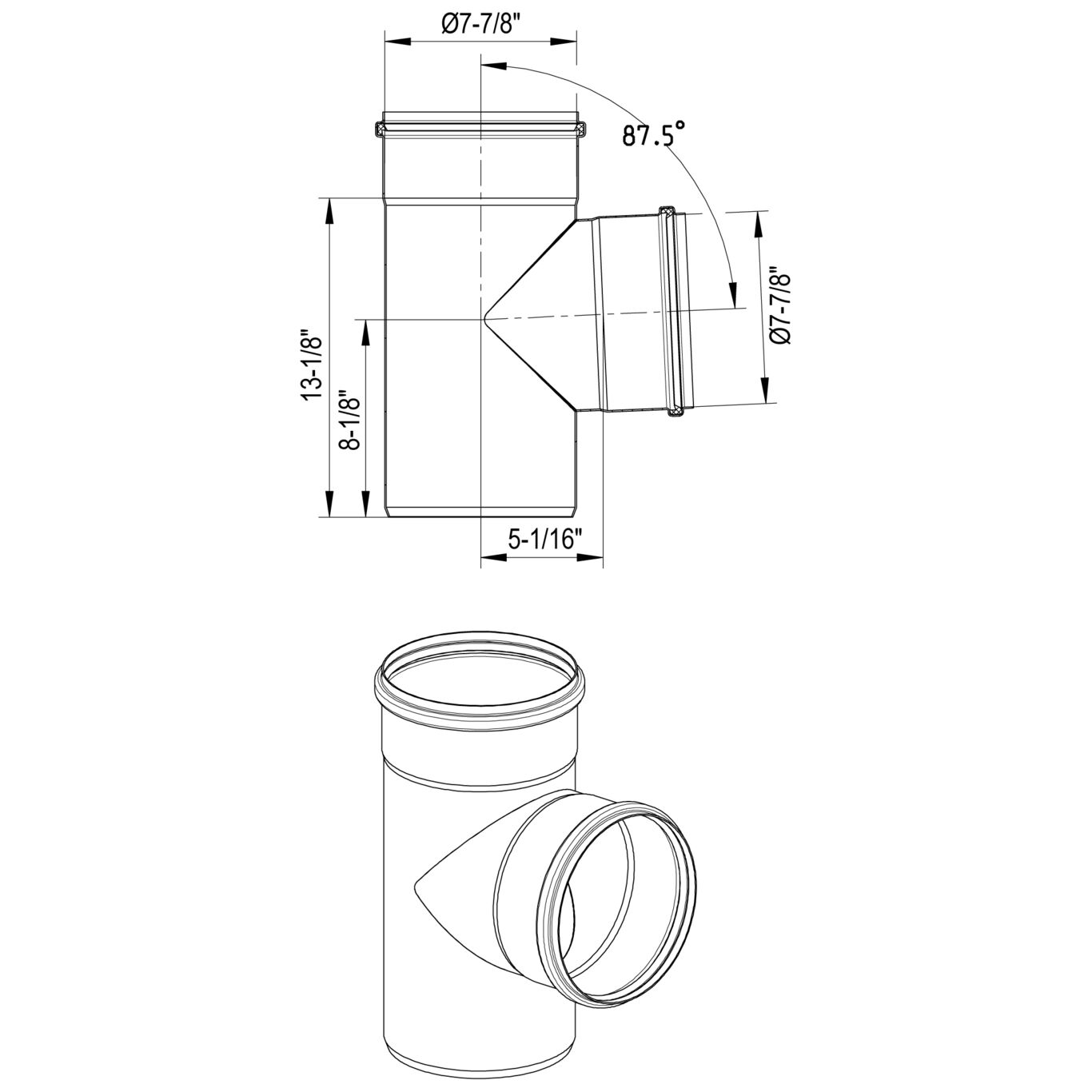

BRANCH 87.5°
-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 333 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 4.17 |
| Weight (lbs) | 9.19 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
