BRANCH 87.5° - (830.315.315 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.315.315 S
EAN no.: 5705499413861
VVS no.: 160221615
NRF no.: 2172574
LVI no.: 0256026

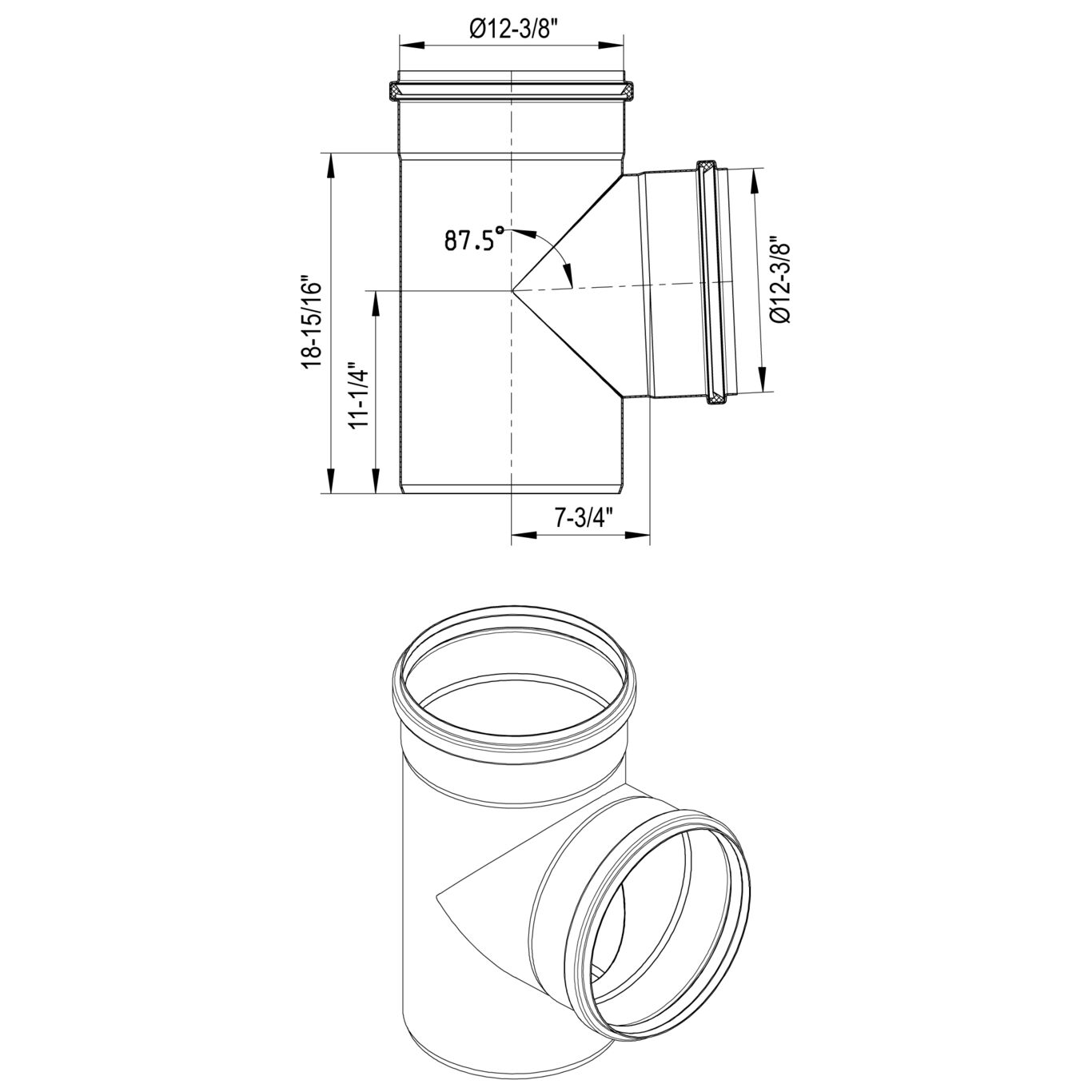

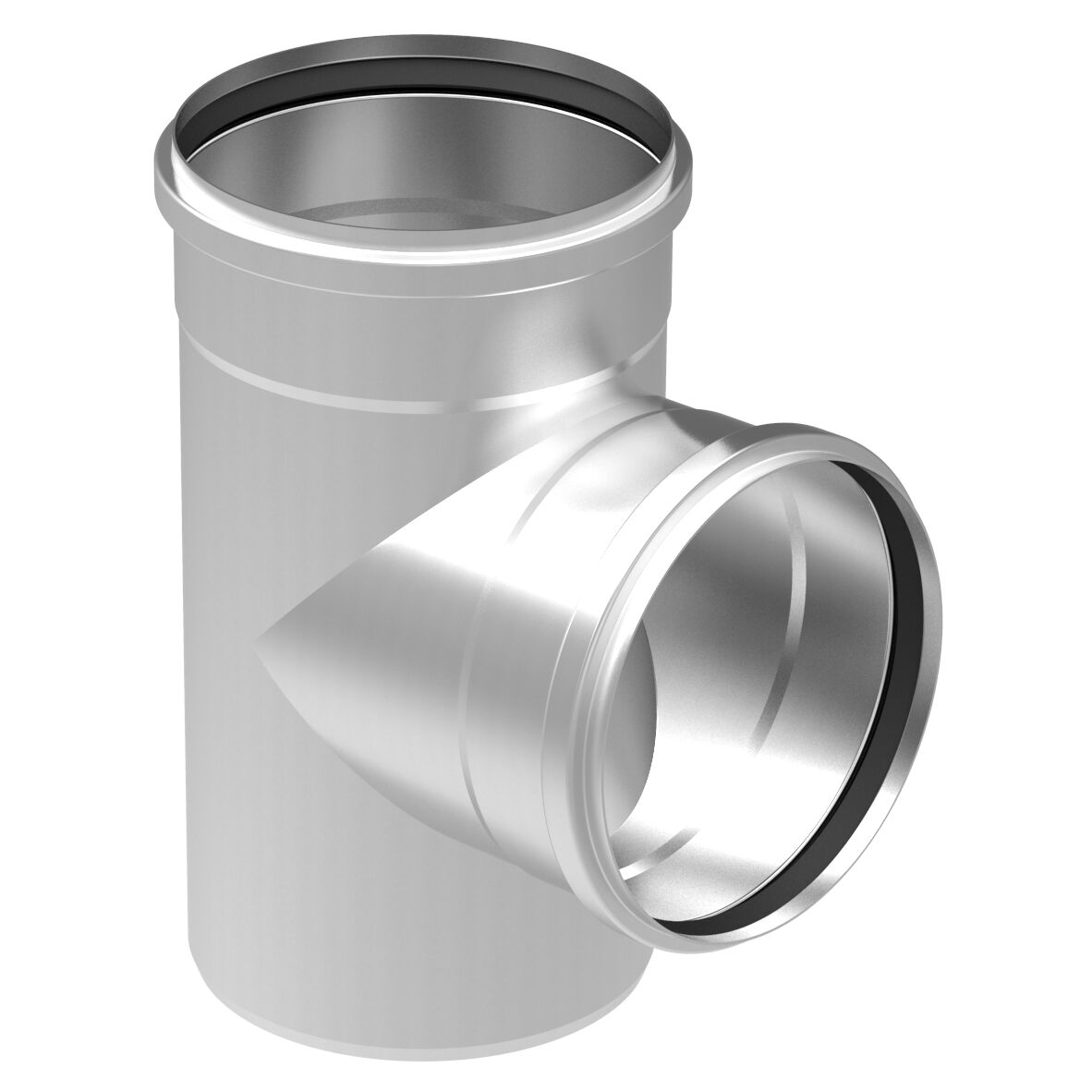

BRANCH 87.5°
-Pipe diameter: Ø315mm. Branch diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 481 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 315 |
| Outlet Diameter (Inch) | 12 |
| Weight (kg) | 12.22 |
| Weight (lbs) | 26.94 |
-
Approval Information
For approval information, please refer to the below approval certificates.
