DOUBLE BRANCH 45° - (836.200.200 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.200.200 S
EAN no.: 5705499412598
NRF no.: 2172616
LVI no.: 0256029

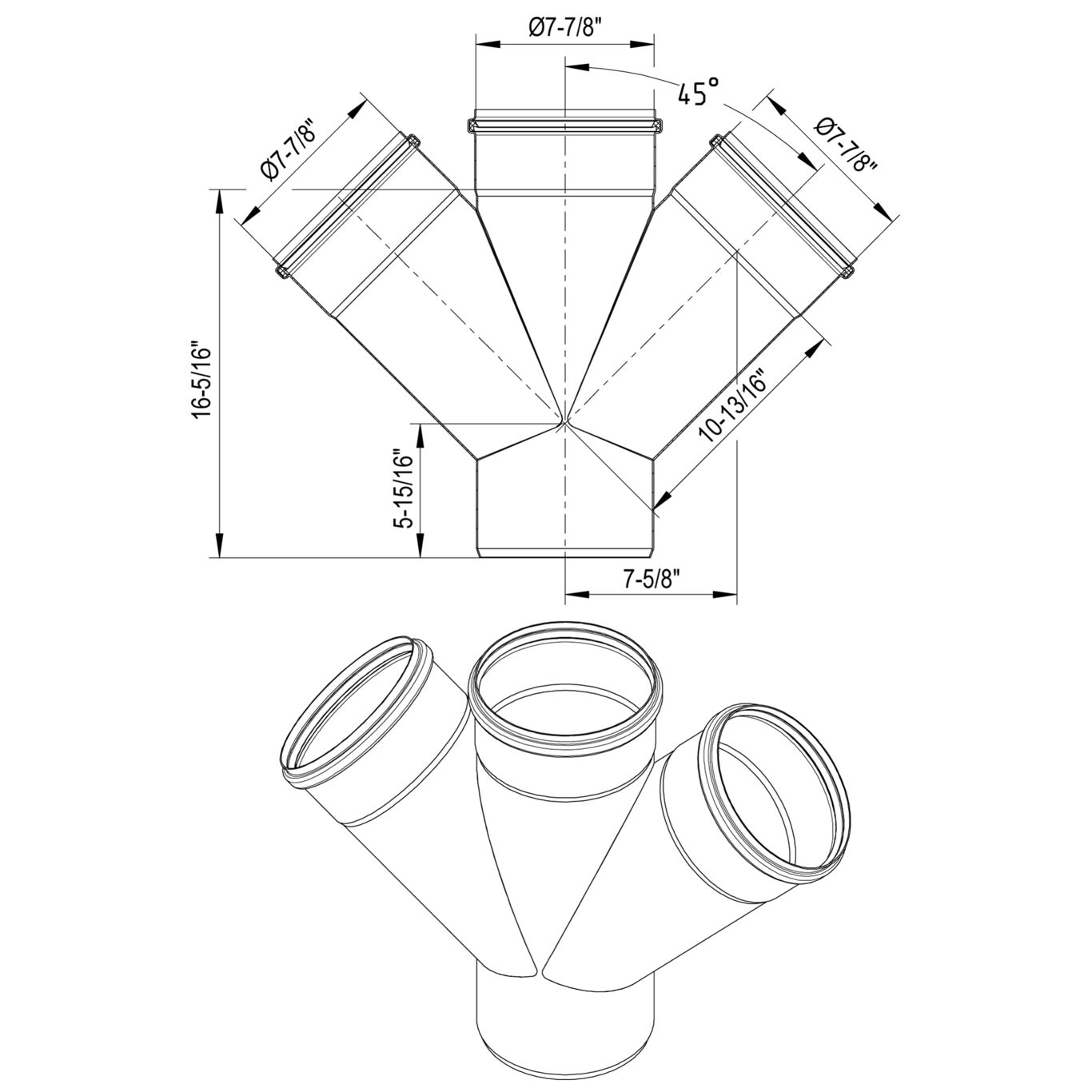

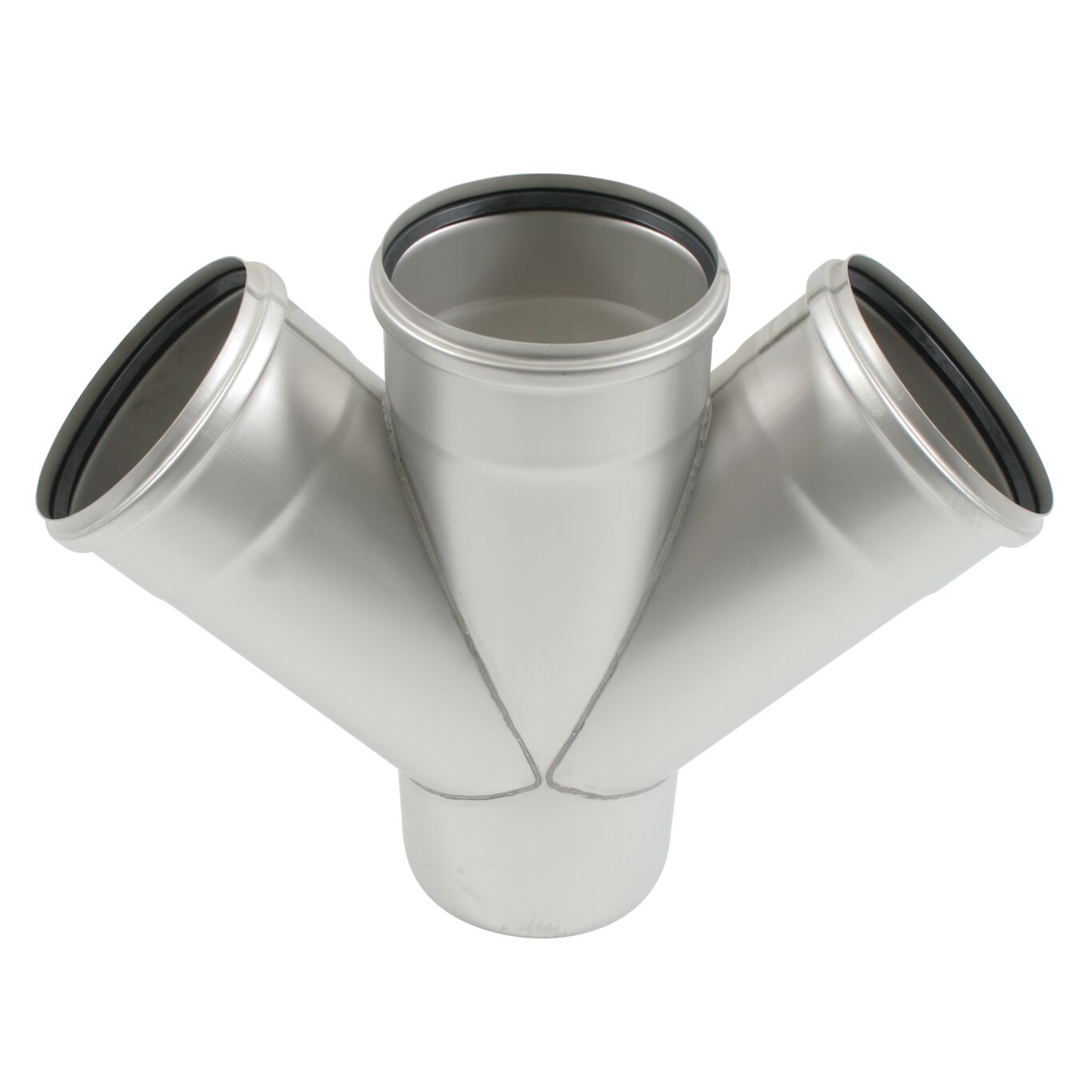

DOUBLE BRANCH 45°
-Pipe diameter: Ø200mm. Branch diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 415 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 5.28 |
| Weight (lbs) | 11.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
