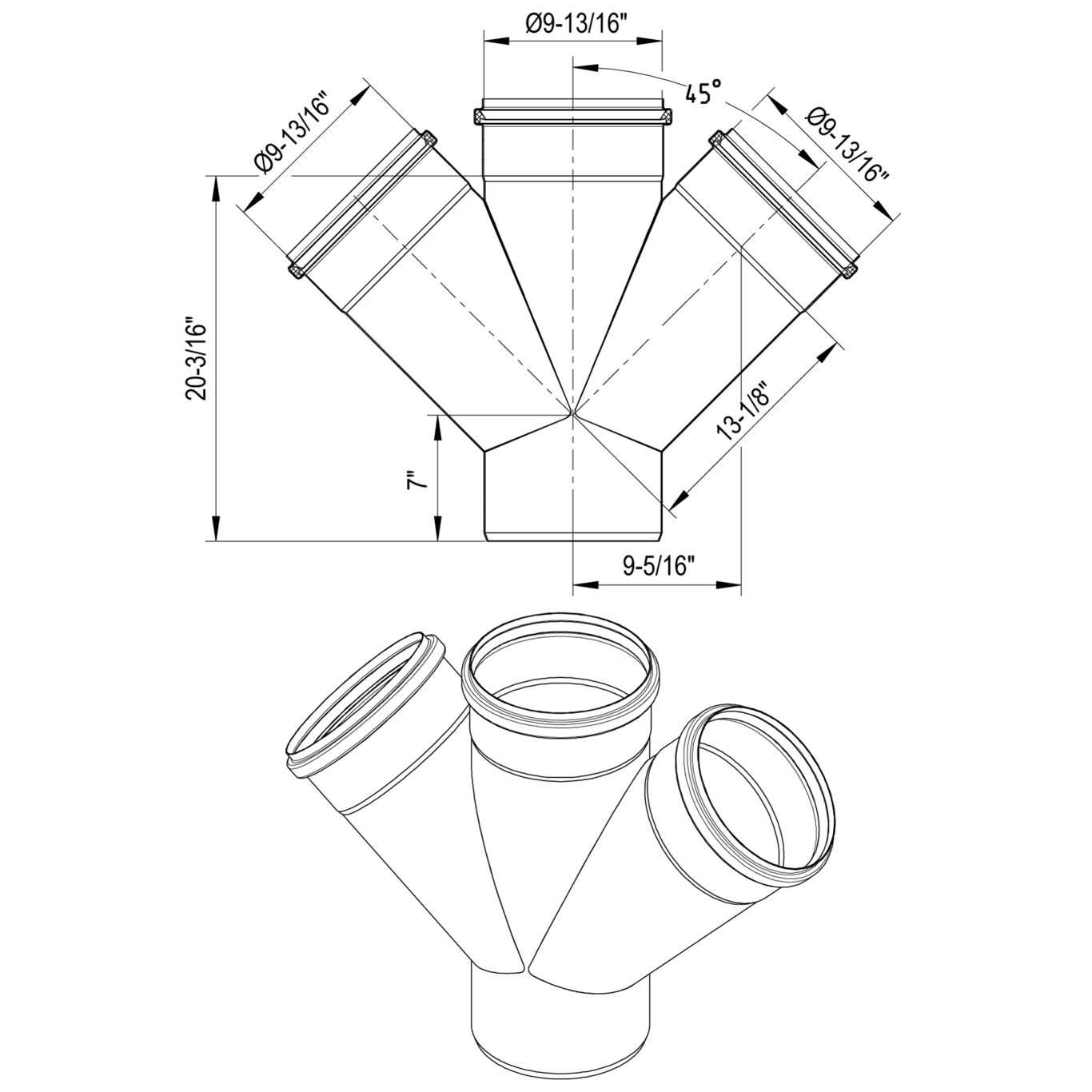

DOUBLE BRANCH 45° - (836.250.250 S)

Part Of the Series: Double branch-45-180

Type no.: 836.250.250 S

EAN no.: 5705499412604

NRF no.: 2172617

LVI no.: 0256030


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Angle (°) 45
Length (mm) 512
Material AISI 316L
Material (EN) EN 1.4404
Outlet dia. (mm) 250
Outlet Diameter (Inch) 10
Weight (kg) 7.01
Weight (lbs) 15.45
