DOUBLE BRANCH 87.5° - (832.110.110)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.110.110
EAN no.: 5705499402049
VVS no.: 160232110
RSK no.: 1550176
NRF no.: 2172353
LVI no.: 0244963

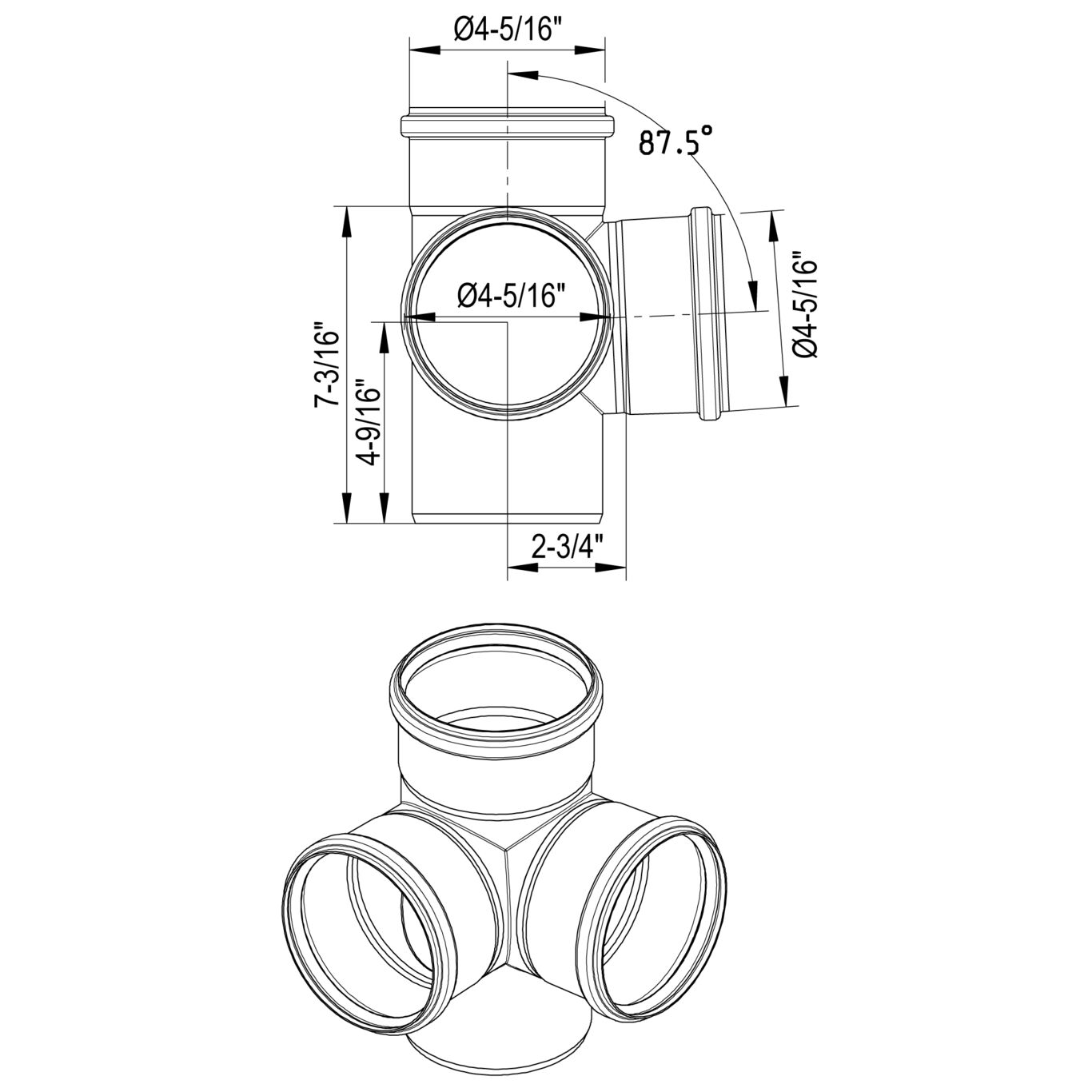

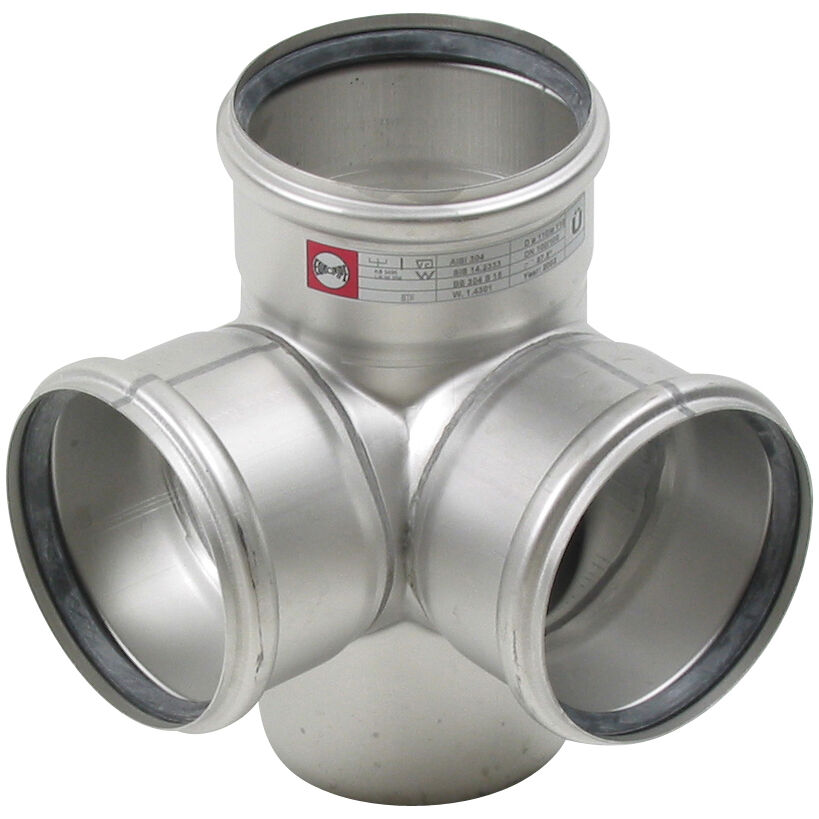

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø110mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 183 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1.14 |
| Weight (lbs) | 2.51 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes
