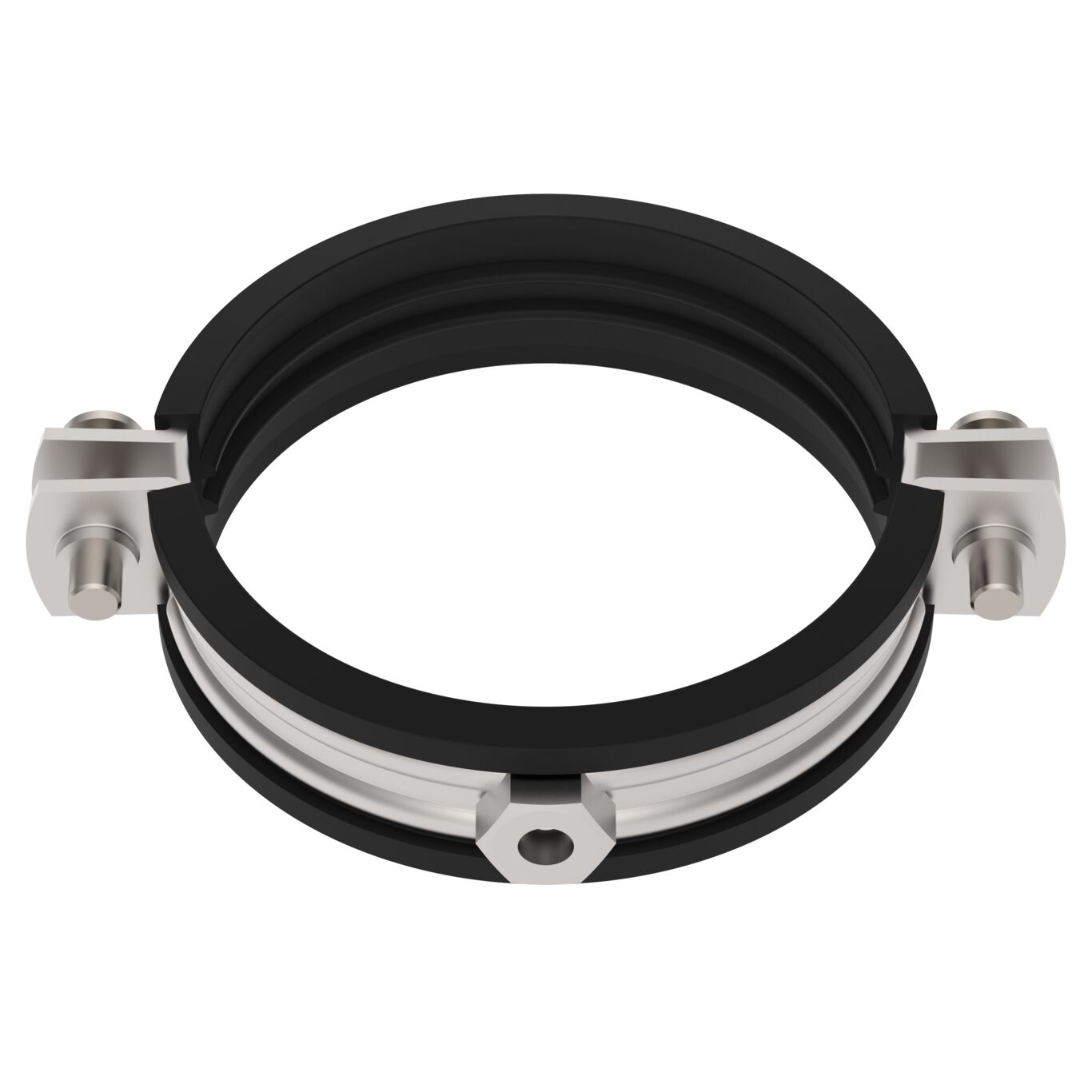

PIPE HANGER WITH EPDM - (895.403.075 S)

Part Of the Series: Pipe hanger-EPDM-stainless

Type no.: 895.403.075 S

EAN no.: 5705499128178

VVS no.: 160363075

RSK no.: 3808785

NRF no.: 2171011


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 20
Nut M8
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Weight (kg) 0.14
Weight (lbs) 0.31
