SADDLE CLAMP - (890.110.050)
×
![]()
Part Of the Series: Saddle clamp
Type no.: 890.110.050
EAN no.: 5705499104813
VVS no.: 154311412
RSK no.: 1551580
NRF no.: 3395079

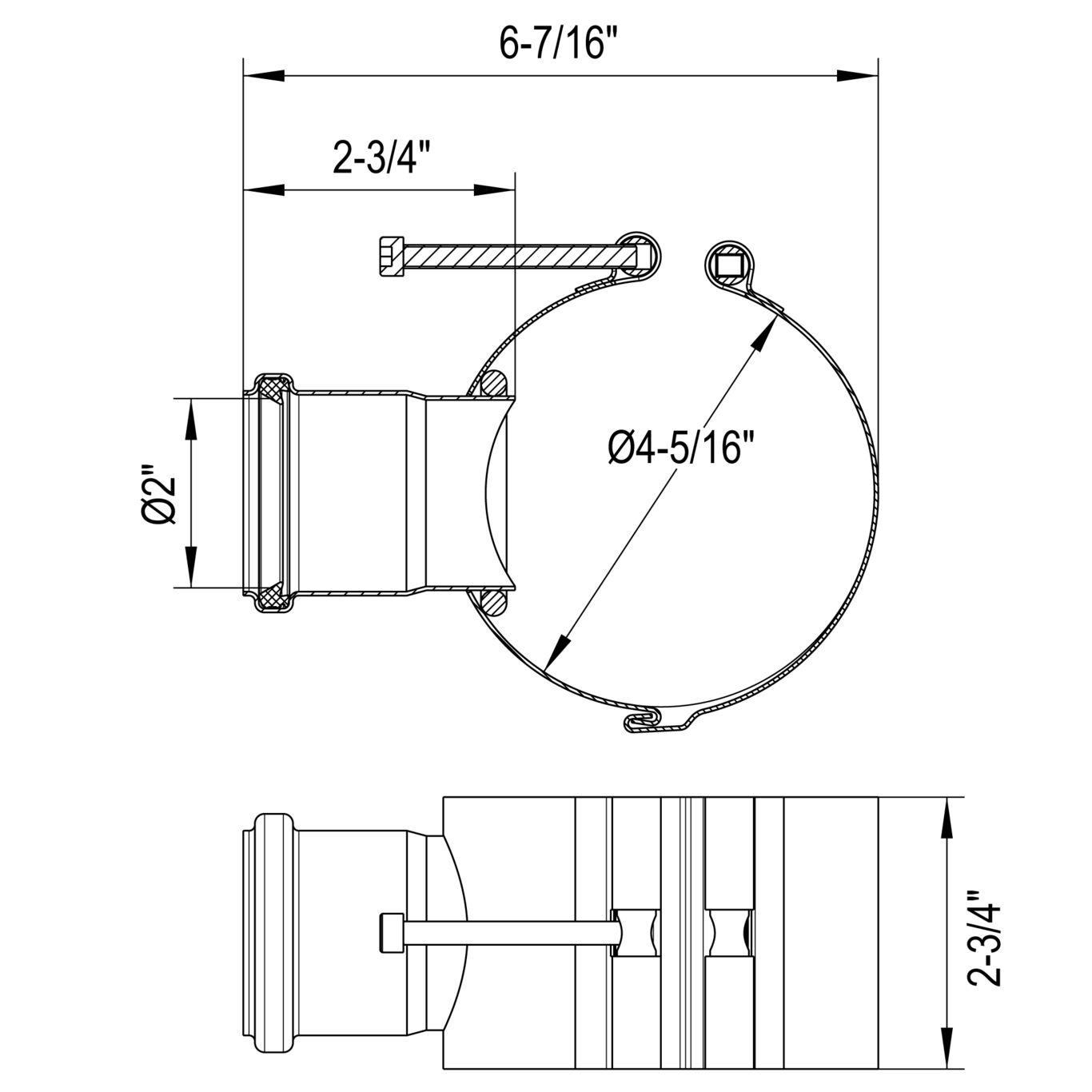

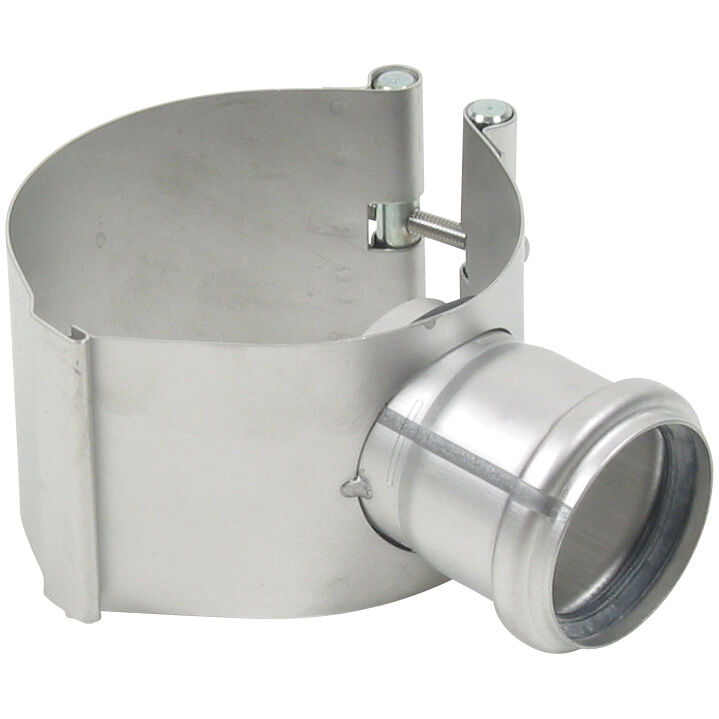

SADDLE CLAMP
-Diameter: Ø110mm
-Side inlet: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 70 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.35 |
| Weight (lbs) | 0.77 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
