SOCKET PLUG - (844.100.050 S)
×
![]()
Part Of the Series: Socket Plug
Type no.: 844.100.050 S
EAN no.: 5705499411393
VVS no.: 160264350
RSK no.: 1550351
NRF no.: 2171164
LVI no.: 0253237

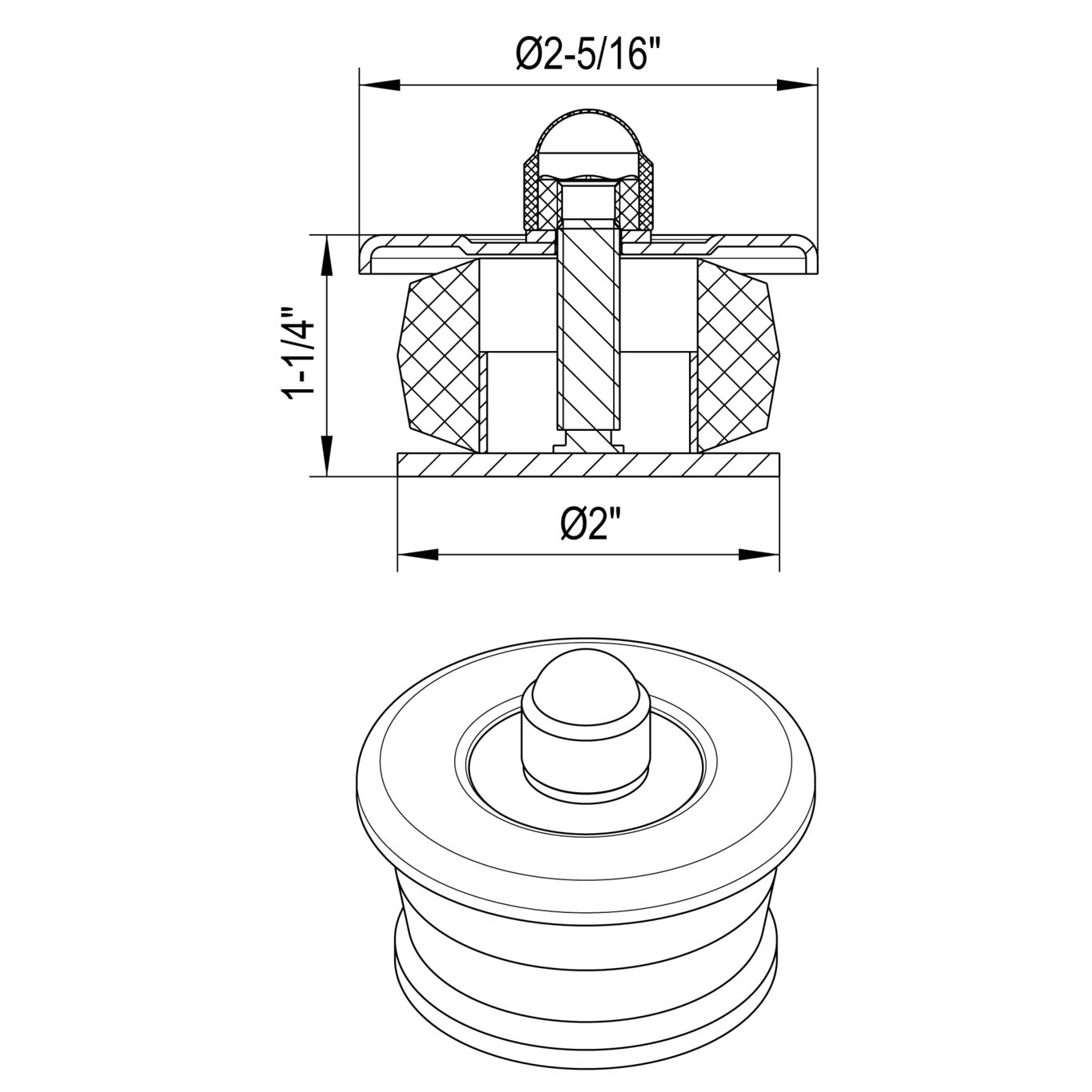

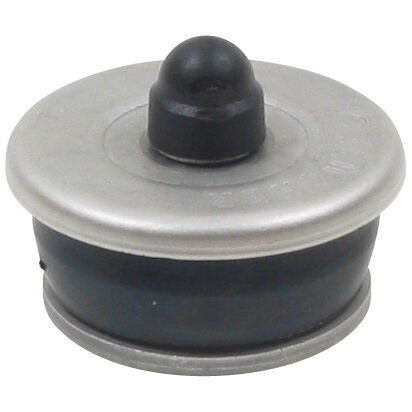

SOCKET PLUG
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 31 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.16 |
| Weight (lbs) | 0.35 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24 Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 RU - 0212322 Pipes-21 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA Achilles Certificate - 46702-22 ABS - LD1716353-PDA
