SOCKET PLUG - (845.000.160 S)
×
![]()
Part Of the Series: Socket Plug
Type no.: 845.000.160 S
EAN no.: 5705499403008
VVS no.: 160265460
RSK no.: 1549456
NRF no.: 2172667
LVI no.: 0253242

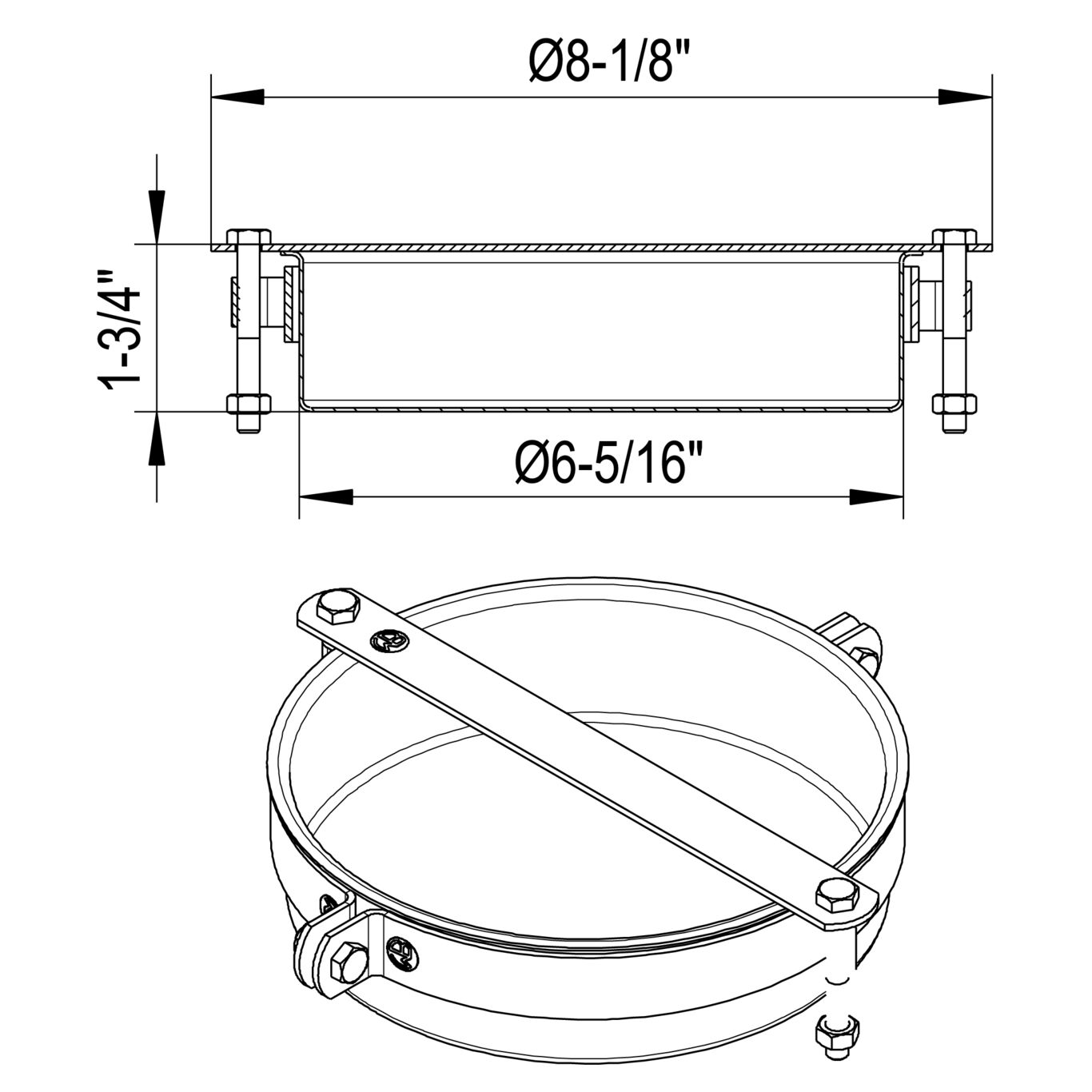

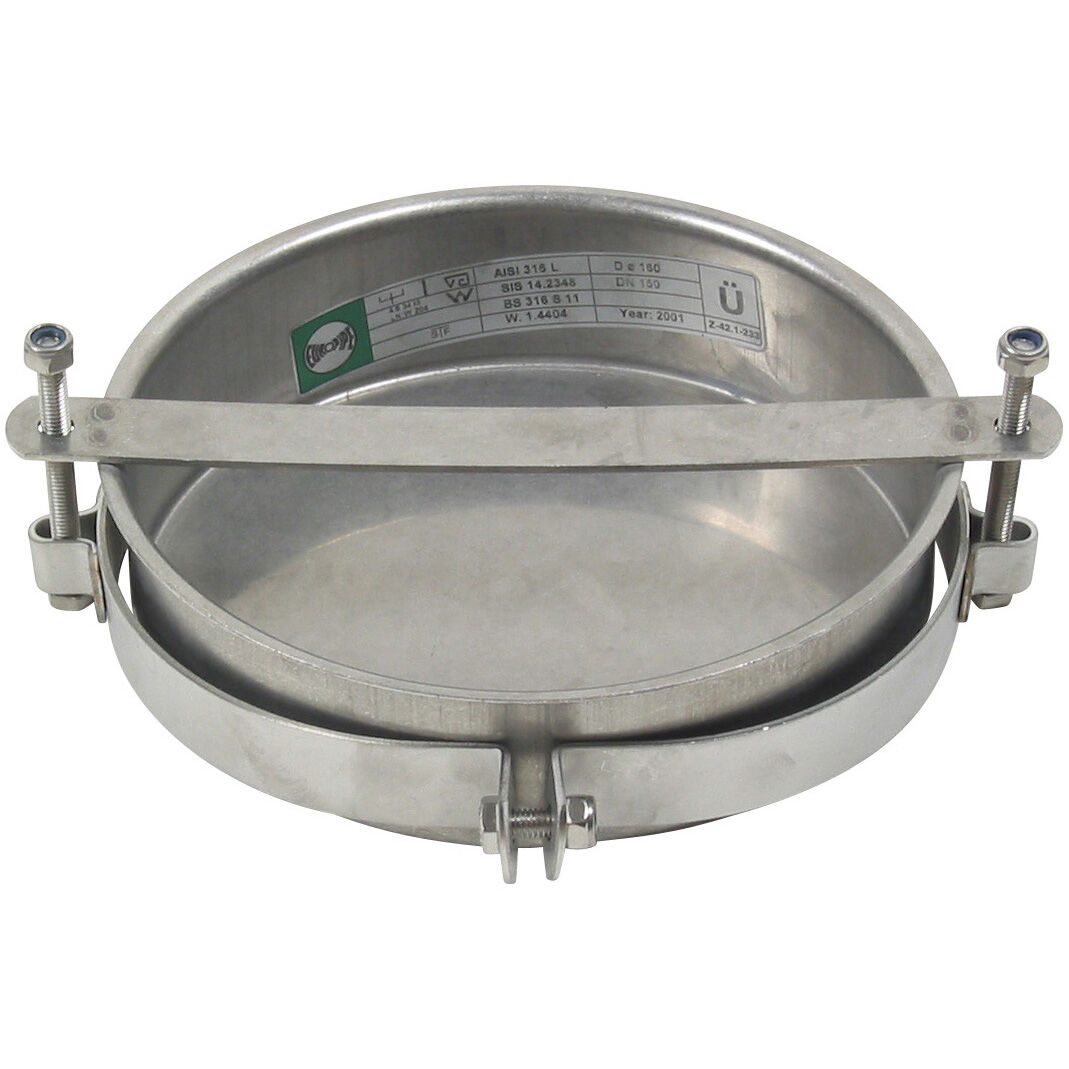

SOCKET PLUG
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 45 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 1.33 |
| Weight (lbs) | 2.93 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe RU - 0212322 Pipes-21 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA
