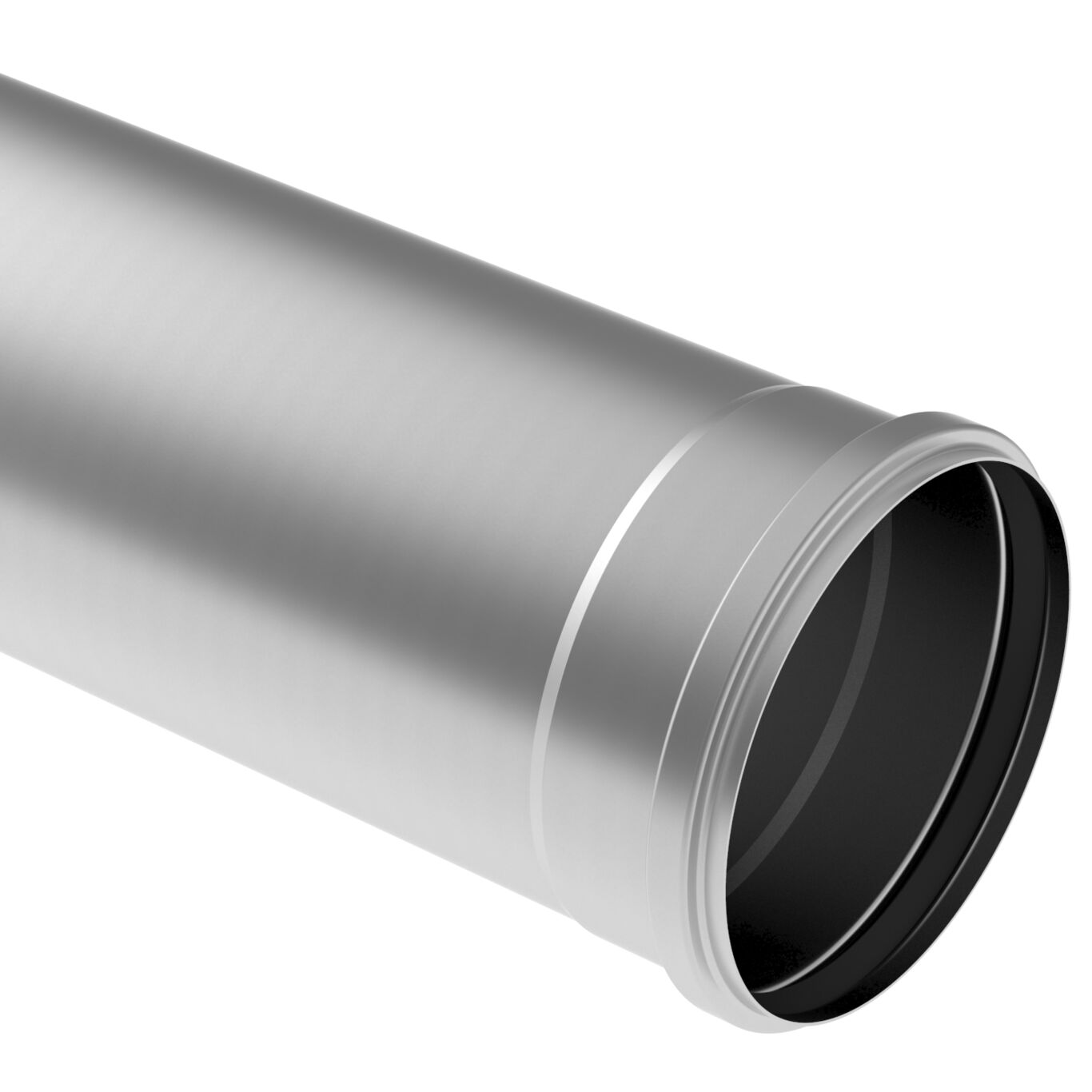

STRAIGHT PIPE WITH ONE SOCKET - (811.050.315 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.050.315 S
EAN no.: 5705499413748
VVS no.: 160138050
RSK no.: 1554574
NRF no.: 2172461
LVI no.: 0250335

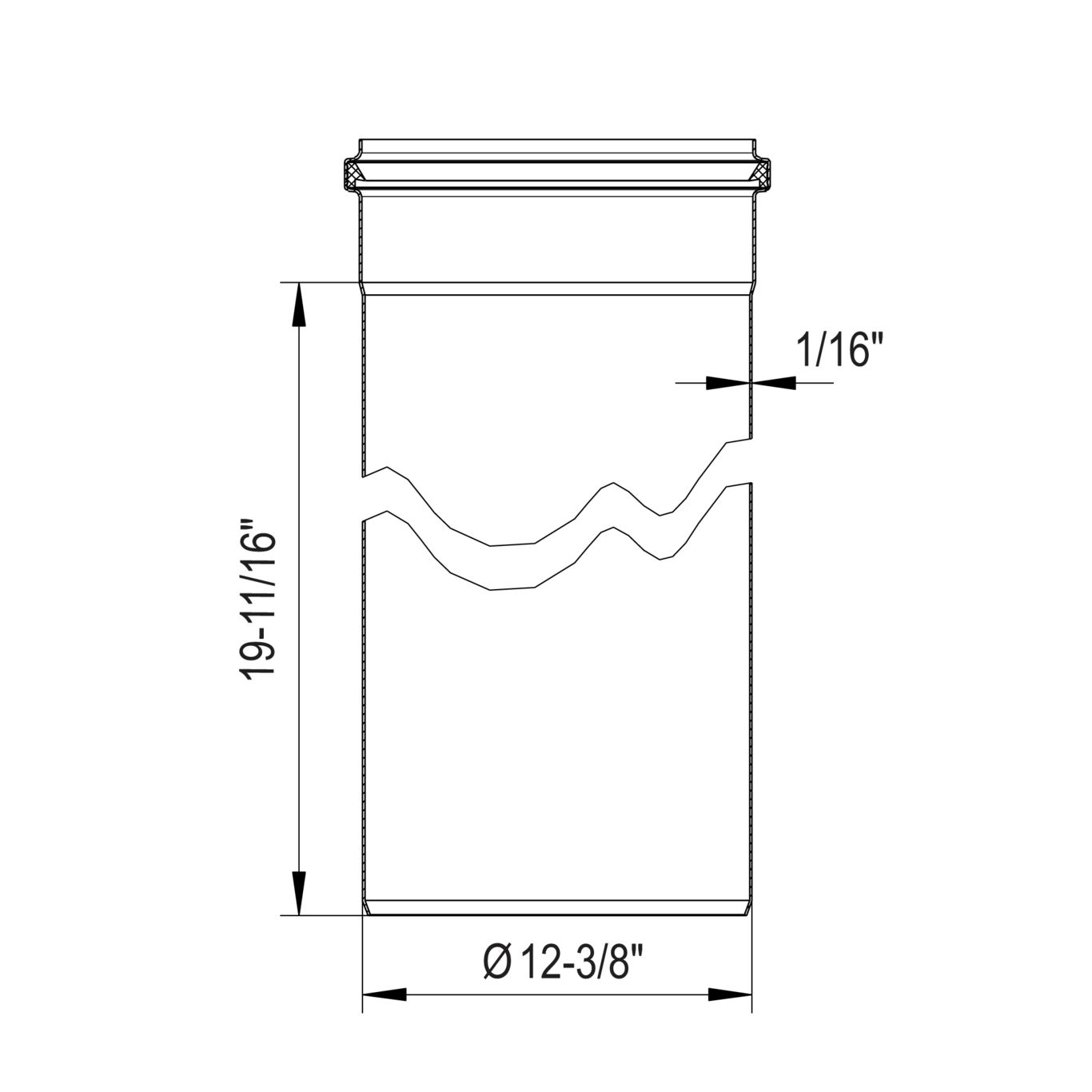

STRAIGHT PIPE WITH ONE SOCKET
-Length: 500mm
-Diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 1' 8" |
| Length of straight pipe (mm) | 500 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 315 |
| Outlet Diameter (Inch) | 12 |
| Weight (kg) | 9.93 |
| Weight (lbs) | 21.89 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
