STRAIGHT PIPE WITH ONE SOCKET - (811.075.200)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.075.200
EAN no.: 5705499412321
VVS no.: 160134075
NRF no.: 2172279
LVI no.: 0241154

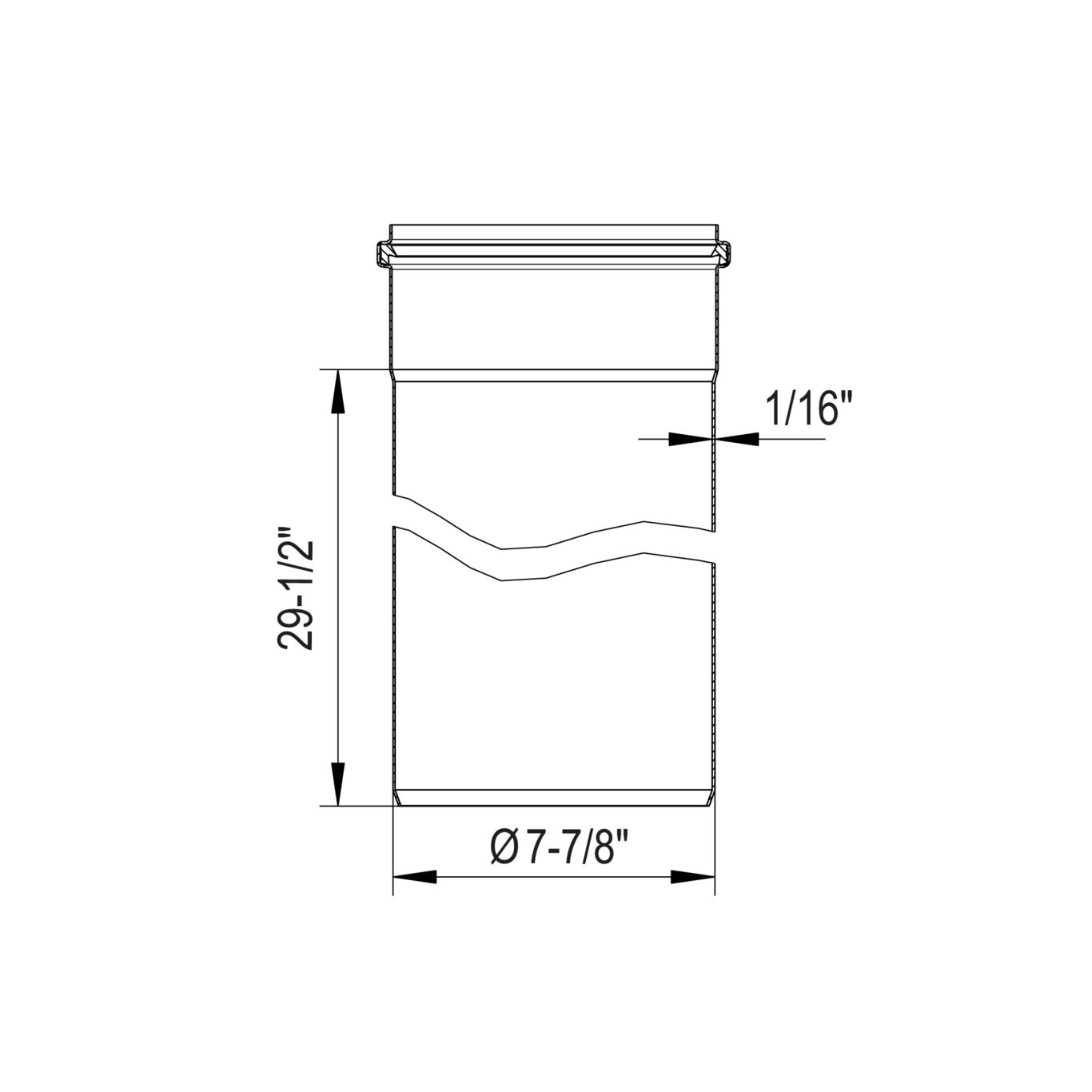

STRAIGHT PIPE WITH ONE SOCKET
-Length: 750mm
-Diameter: Ø200mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 2' 6" |
| Length of straight pipe (mm) | 750 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 6.47 |
| Weight (lbs) | 14.26 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
