STRAIGHT PIPE WITH ONE SOCKET - (811.100.125 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.100.125 S
EAN no.: 5705499408270
VVS no.: 160130400
RSK no.: 1551163
NRF no.: 2170713
LVI no.: 0256004

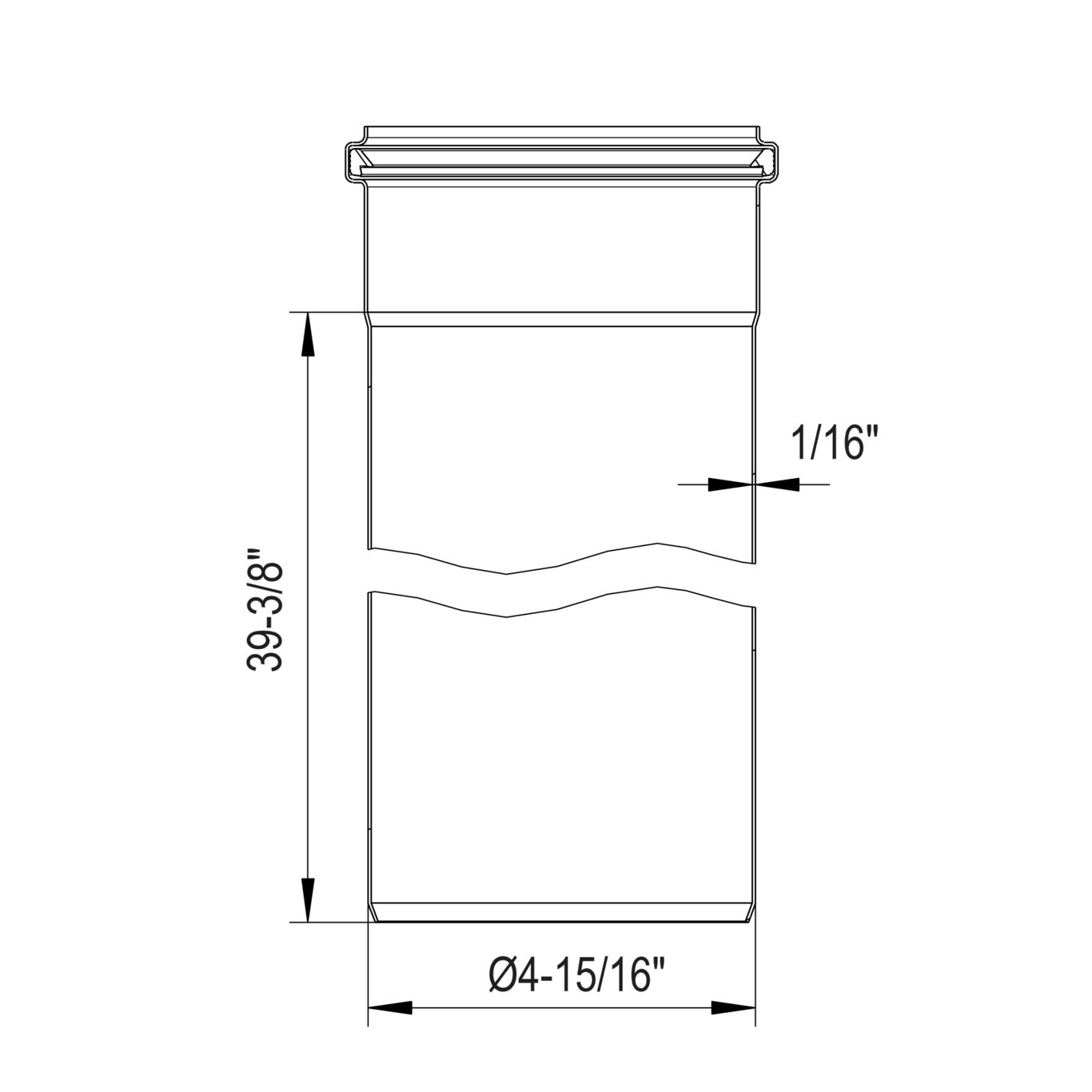

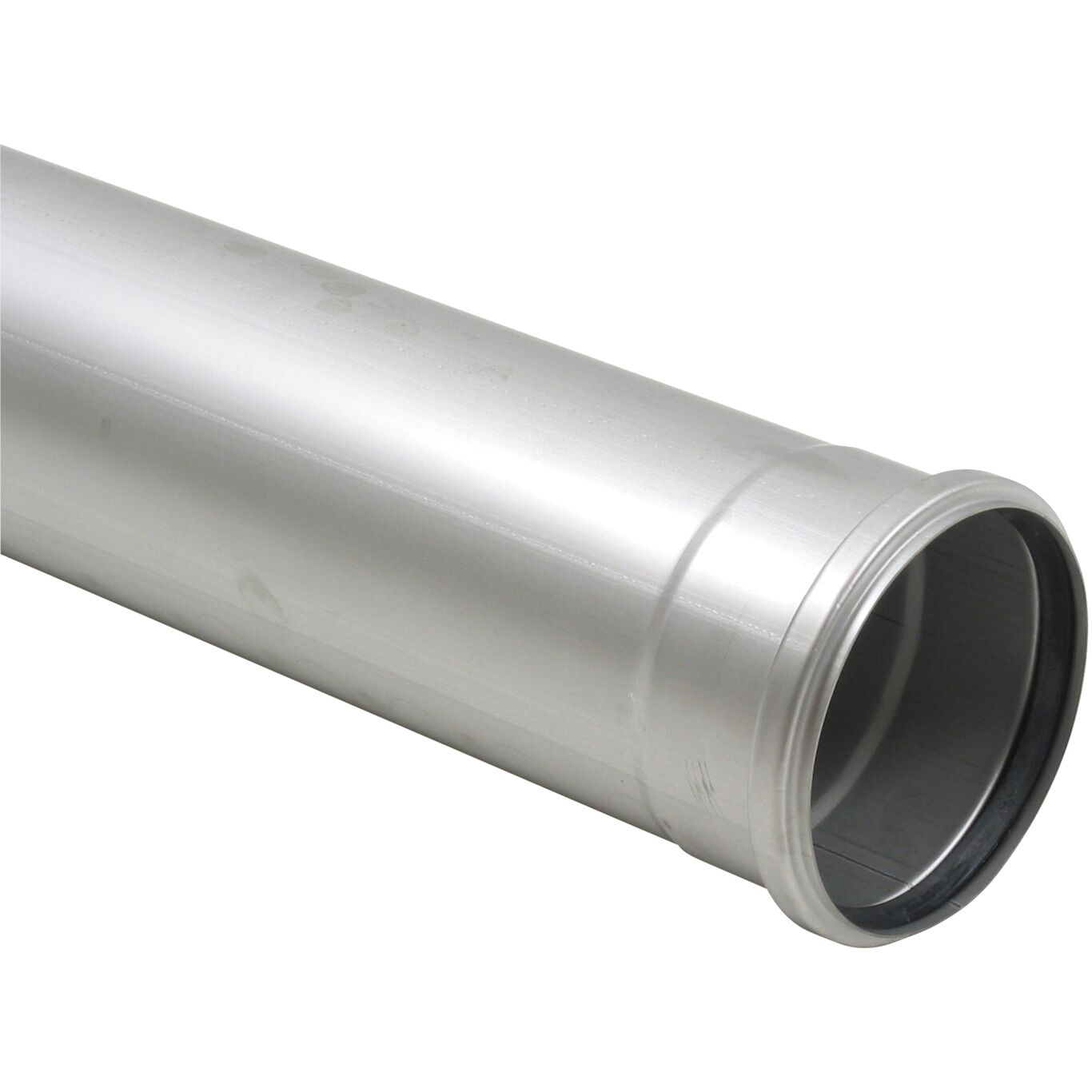

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø125mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 3' 3" |
| Length of straight pipe (mm) | 1000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Weight (kg) | 3.32 |
| Weight (lbs) | 7.32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains
