STRAIGHT PIPE WITH ONE SOCKET - (811.100.200 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.100.200 S
EAN no.: 5705499410877
VVS no.: 160134400
RSK no.: 1551542
NRF no.: 2170719
LVI no.: 0250285

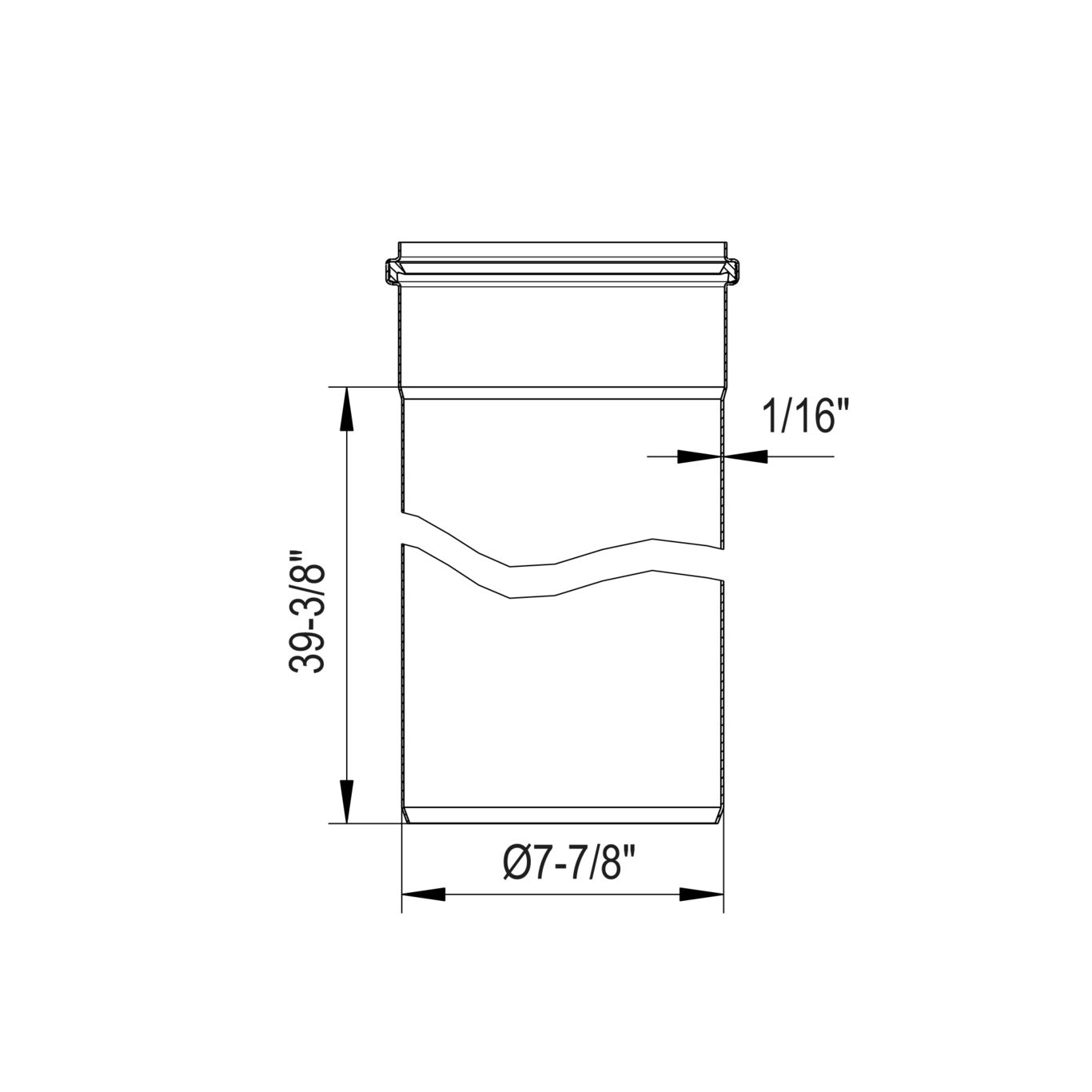

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 3' 3" |
| Length of straight pipe (mm) | 1000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 8.32 |
| Weight (lbs) | 18.34 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
