STRAIGHT PIPE WITH ONE SOCKET - (811.100.315 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.100.315 S
EAN no.: 5705499413762
VVS no.: 160138100
RSK no.: 1554575
NRF no.: 2172474
LVI no.: 0250336

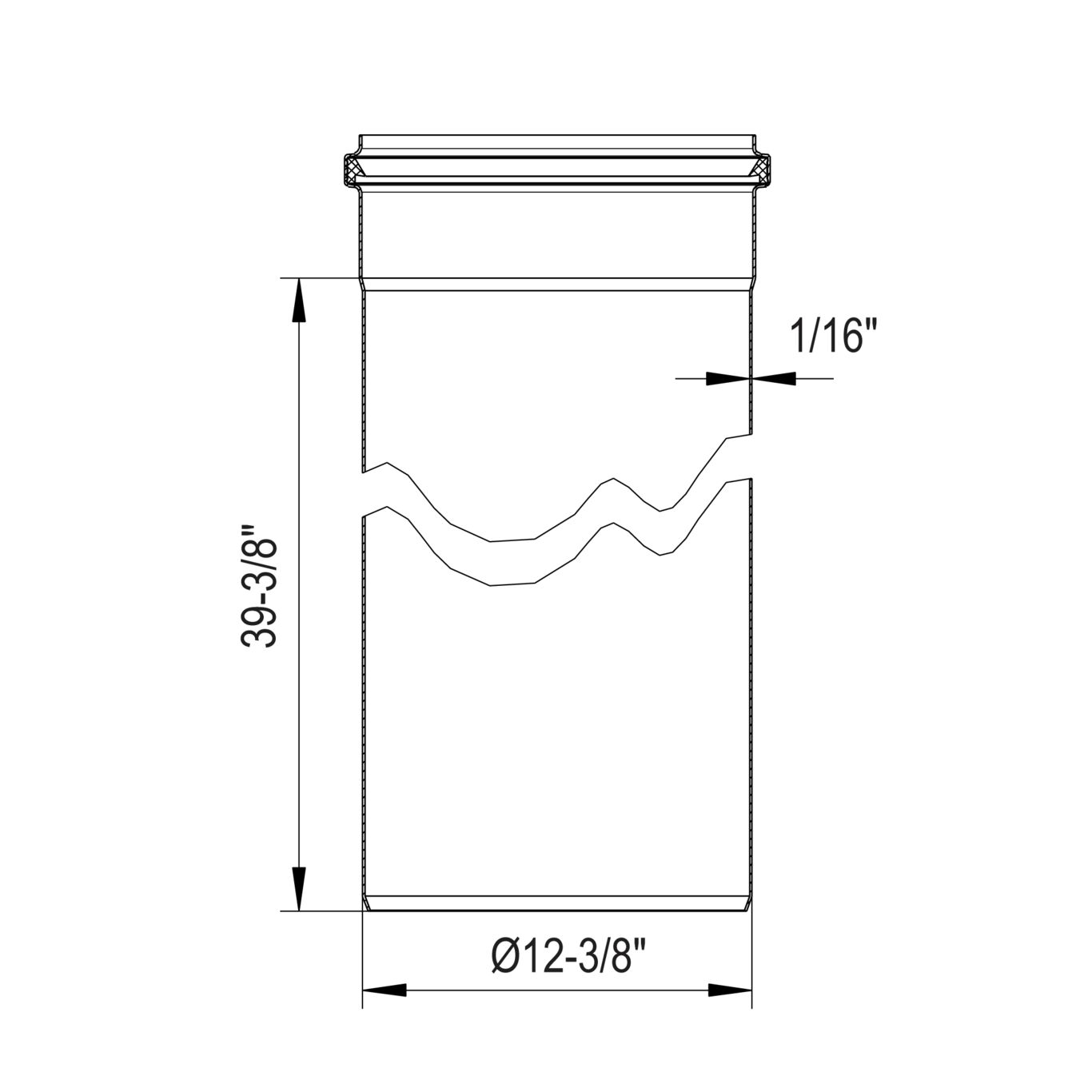

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 3' 3" |
| Length of straight pipe (mm) | 1000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 315 |
| Outlet Diameter (Inch) | 12 |
| Weight (kg) | 17.7 |
| Weight (lbs) | 39.02 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
