STRAIGHT PIPE WITH ONE SOCKET - (811.300.200 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.300.200 S
EAN no.: 5705499410891
VVS no.: 160134530
RSK no.: 1551544
NRF no.: 2170722
LVI no.: 0250288

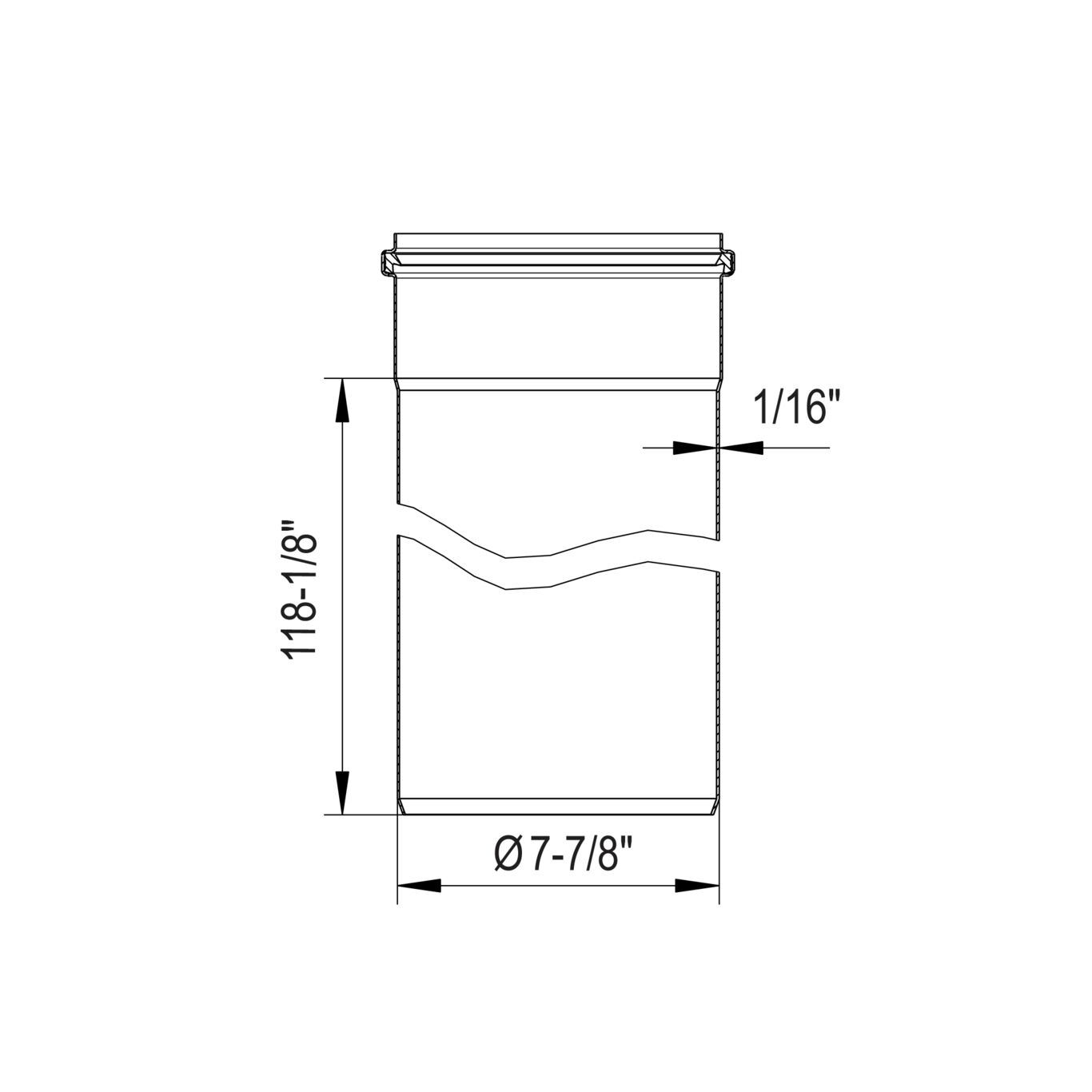

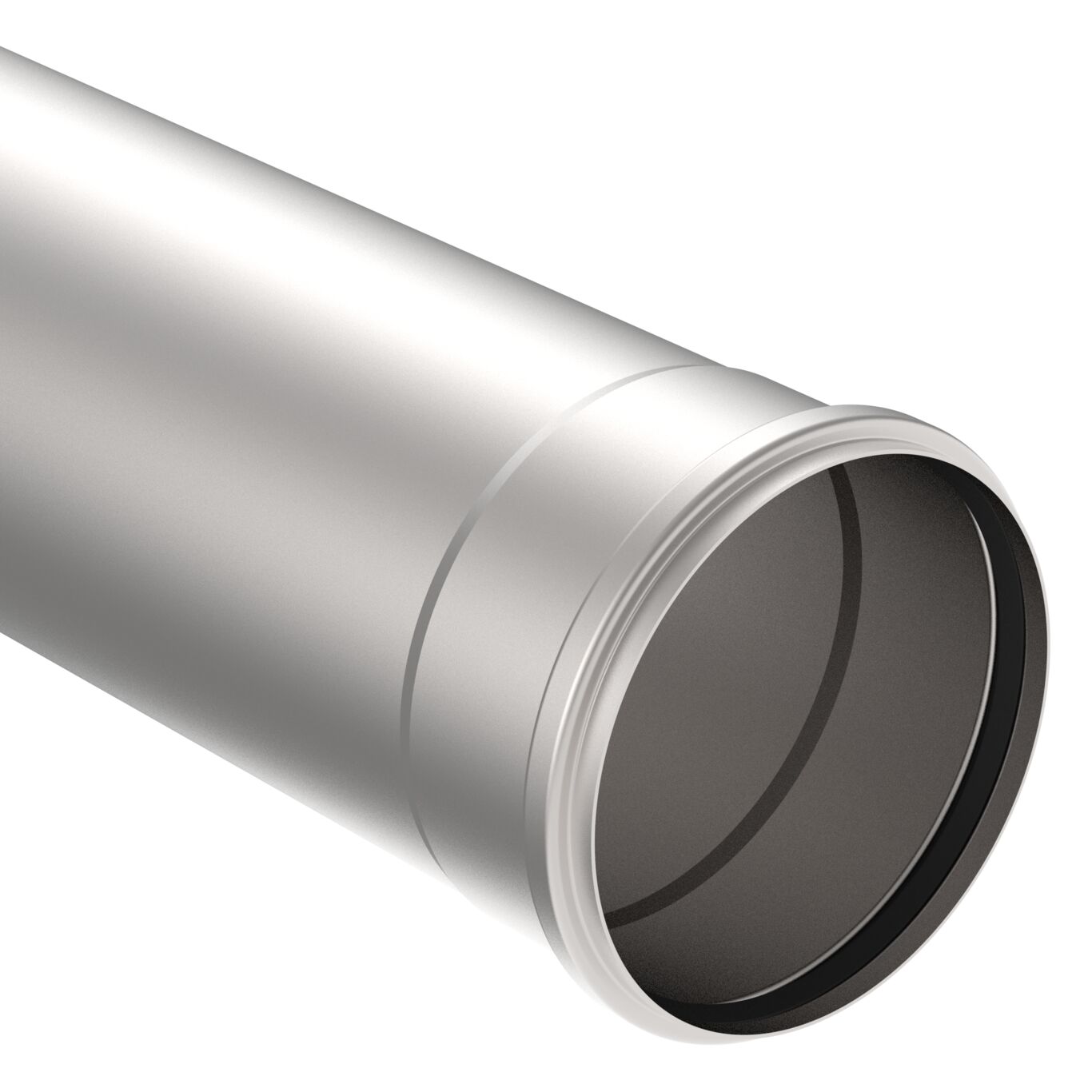

STRAIGHT PIPE WITH ONE SOCKET
-Length: 3000mm
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 9' 10" |
| Length of straight pipe (mm) | 3000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 200 |
| Outlet Diameter (Inch) | 8 |
| Weight (kg) | 23.1 |
| Weight (lbs) | 50.93 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings
