STRAIGHT PIPE WITH ONE SOCKET - (811.400.040)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.400.040
EAN no.: 5705499412796
VVS no.: 160120240
NRF no.: 2172288
LVI no.: 0240039

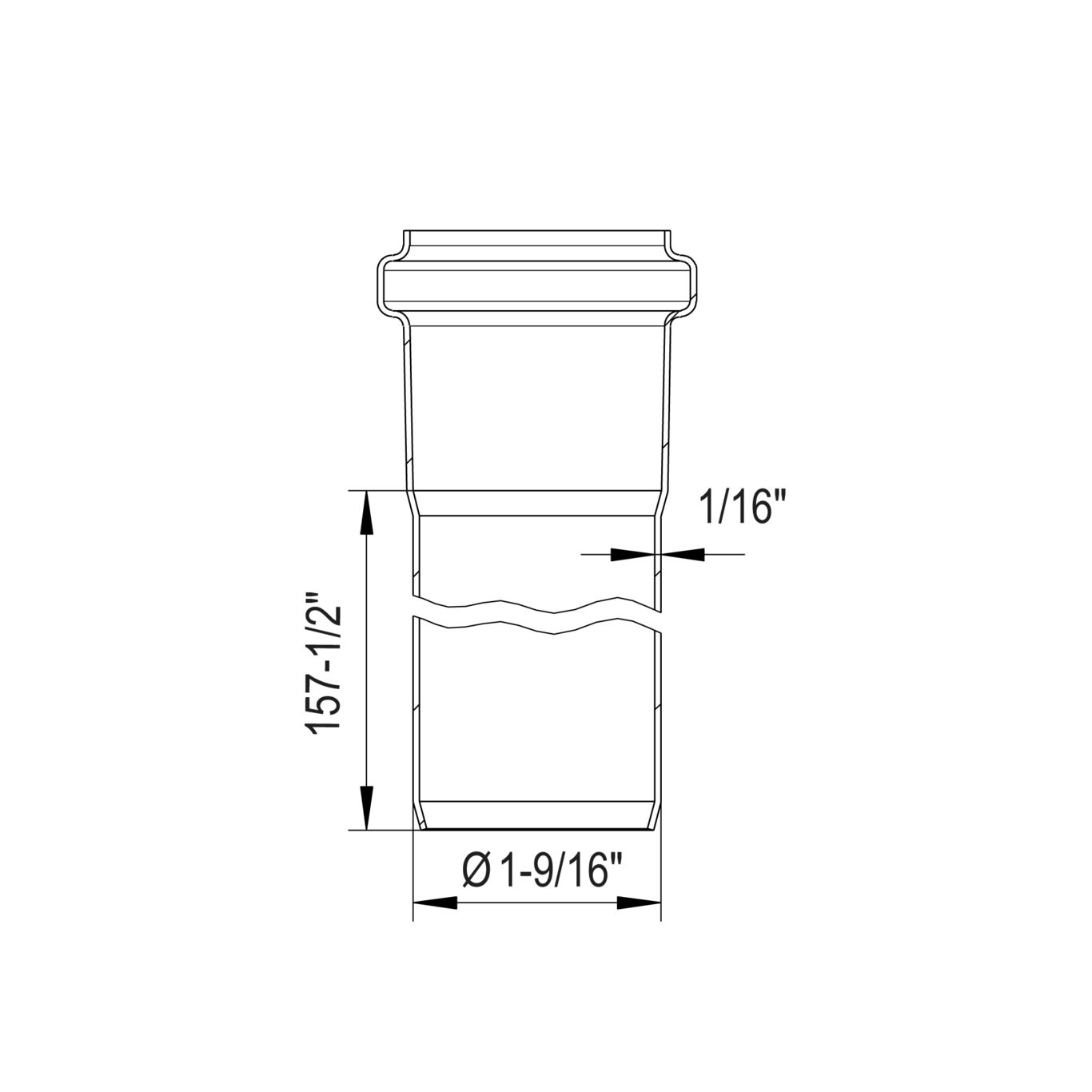

STRAIGHT PIPE WITH ONE SOCKET
-Length: 4000mm
-Diameter: Ø40mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 13' 1" |
| Length of straight pipe (mm) | 4000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 3.92 |
| Weight (lbs) | 8.64 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA
