ACCESS COVER - (793.100.100)
×
![]()
Part Of the Series: Access cover-Plate
Type no.: 793.100.100
EAN no.: 5705499131697
Size: 1000x1000

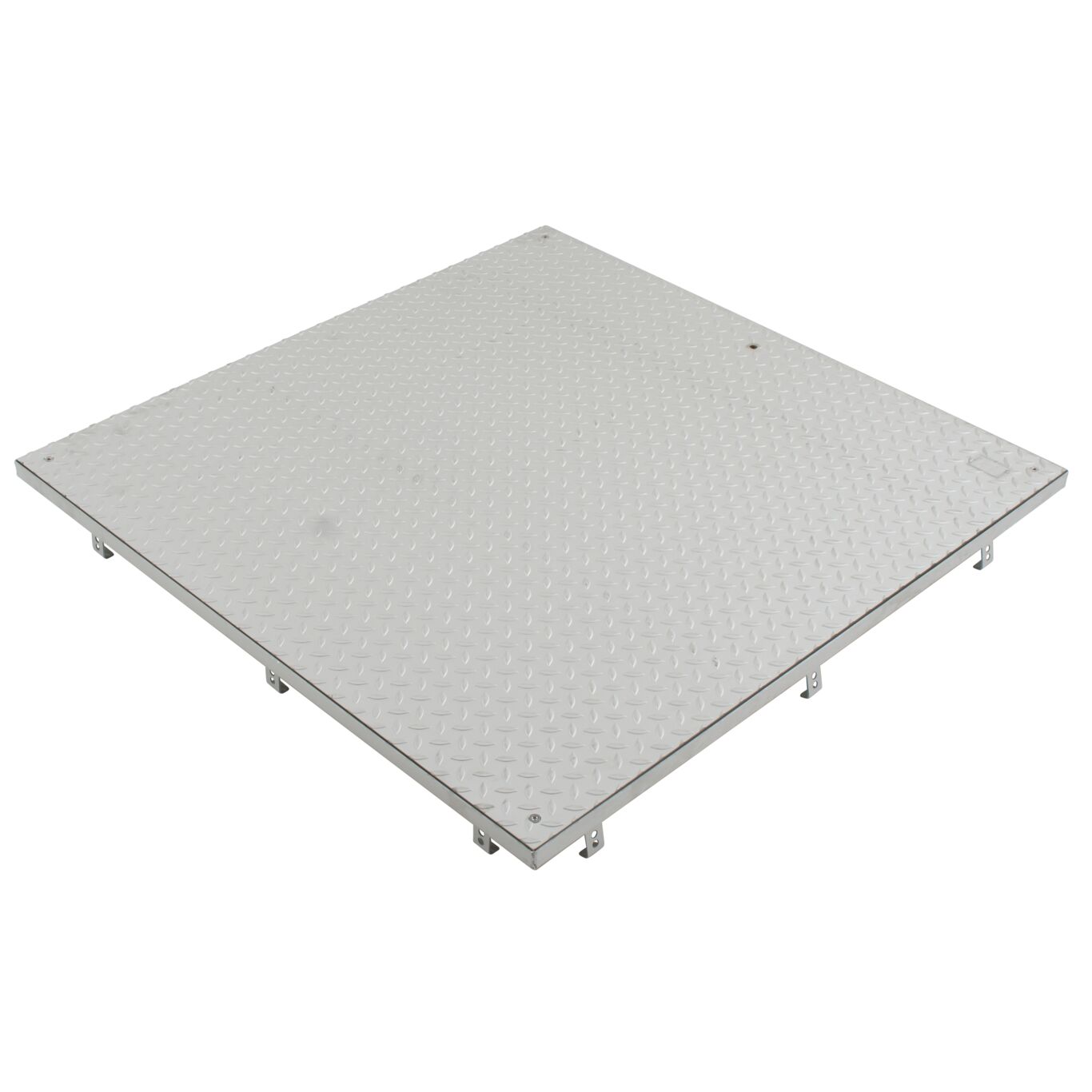

ACCESS COVER

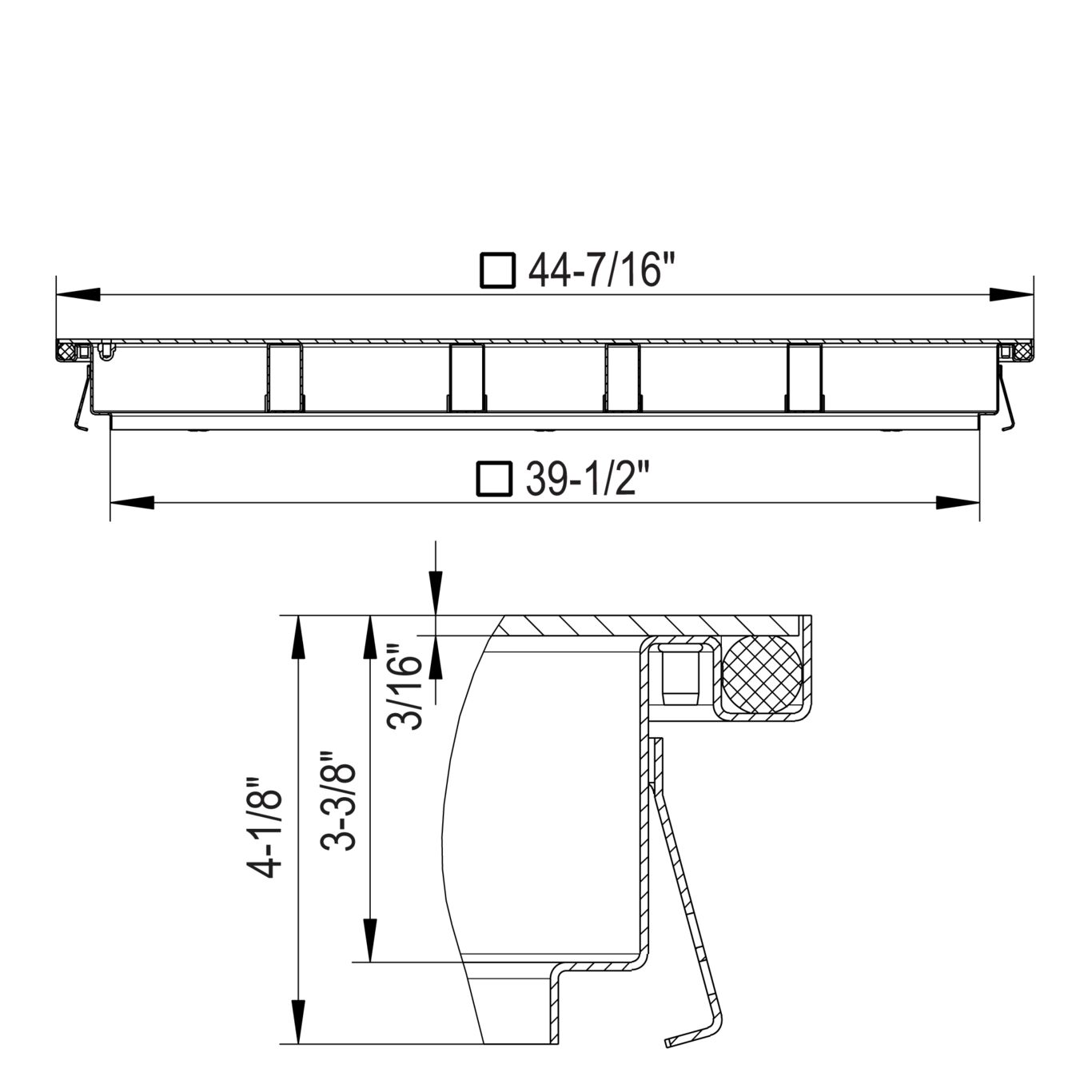

-Frame: 1000x1000mm
-With tear plate
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load class EN124(kg) | B125 (12.500) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Shape | Square |
| Size (mm) | 1000x1000 |
| Size of Frame (Inch) | 39-3/8 x 39-3/8 |
| Weight (kg) | 79.16 |
| Weight (lbs) | 174.52 |
-
Approval Information
For approval information, please refer to the below approval certificates.
