BHG Series Channel

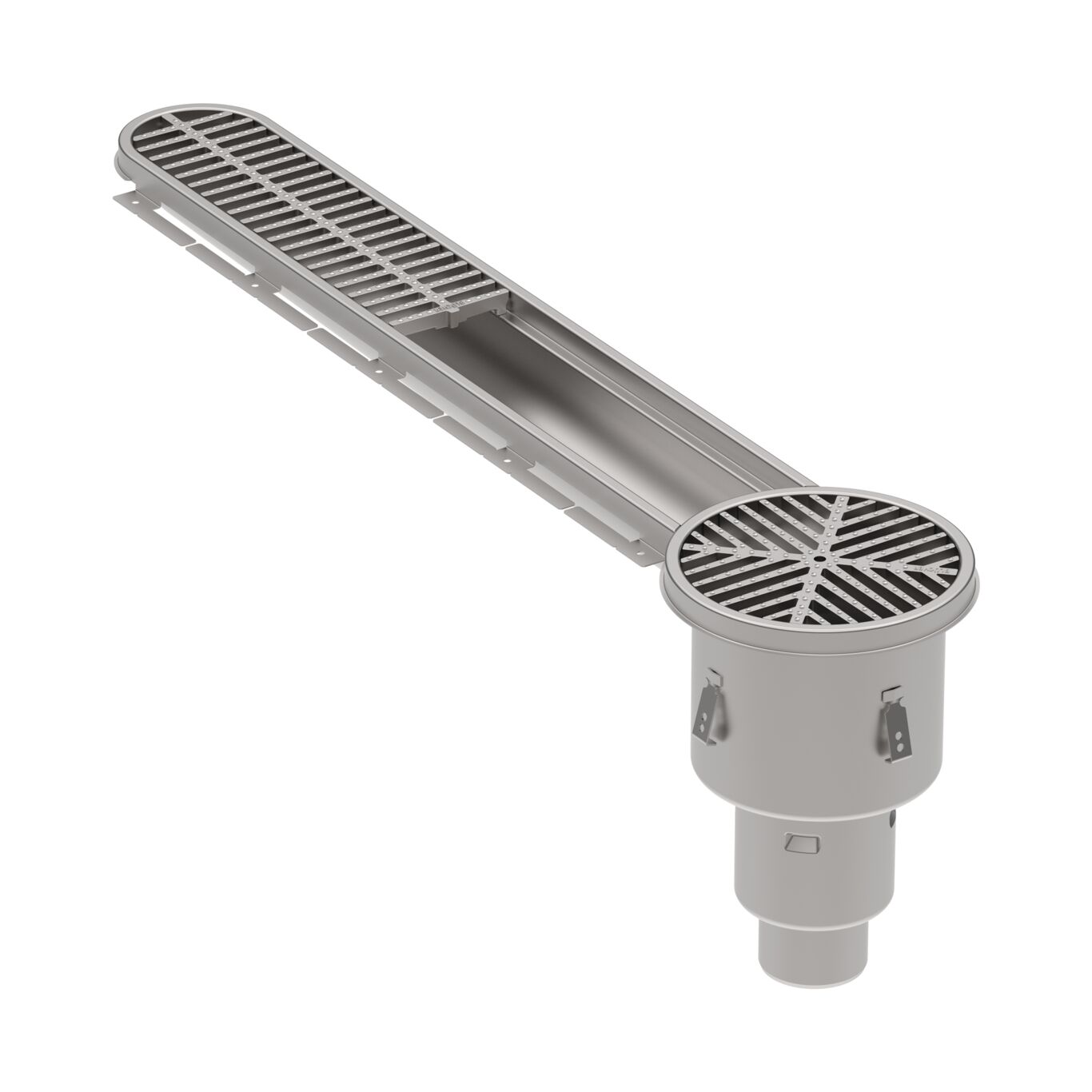

HygienicPro® BHG Series AISI Type 304 stainless steel pre-sloped channel (specify length) with smooth interior, 1% longitudinal slope and 160 degree cross fall, heavy duty frame and AISI CF-8 nonslip cast grating, and 4in. (110mm) drain outlet.

US Order # / Description

BHG-4EOM-X4 / 6"(147) W x 4'(1393) HP SS Trench Drain – 18" H End Out

BHG-4EOM-X6 / 6"(147) W x 6'(1893) HP SS Trench Drain – 18" H End Out

BHG-4EOM-X8 / 6"(147) W x 8'(2393) HP SS Trench Drain – 18" H End Out

BHG-4COM-X8 / 6"(147) W x 8'(2482) HP SS Trench Drain – 18" CTR Out

BHG-4EOM-X11 / 6"(147) W x 11'(3409) HP SS Trench Drain – 19" H End Out

BHG-4COM-X11 / 6"(147) W x 11'(3492) HP SS Trench Drain – 18" H CTR Out

BHG-4EOM-X14 / 6"(147) W x 14'(4417) HP SS Trench Drain – 19" H End Out

BHG-4COM-X14 / 6"(147) W x 14'(4482) HP SS Trench Drain – 18" H CTR Out

BHG-4EOM-X18 / 6"(147) W x 18'(5425) HP SS Trench Drain – 19" H End Out

BHG-4COM-X18 / 6"(147) W x 18'(5523) HP SS Trench Drain – 18" H CTR Out

BHG-4COM-X21 / 6"(147) W x 21'(6516) HP SS Trench Drain – 18" H CTR Out

BHG-4COM-X25 / 6"(147) W x 25'(7532) HP SS Trench Drain – 18" H CTR Out

BHG-4COM-X28 / 6"(147) W x 28'(8532) HP SS Trench Drain – 18" H CTR Out

BHG-4COM-X31 / 6"(147) W x 31'(9548) HP SS Trench Drain – 18" H CTR Out

BHG-4COM-X35 / 6"(147) W x 35'(10548) HP SS Trench Drain – 18" H CTR Out
