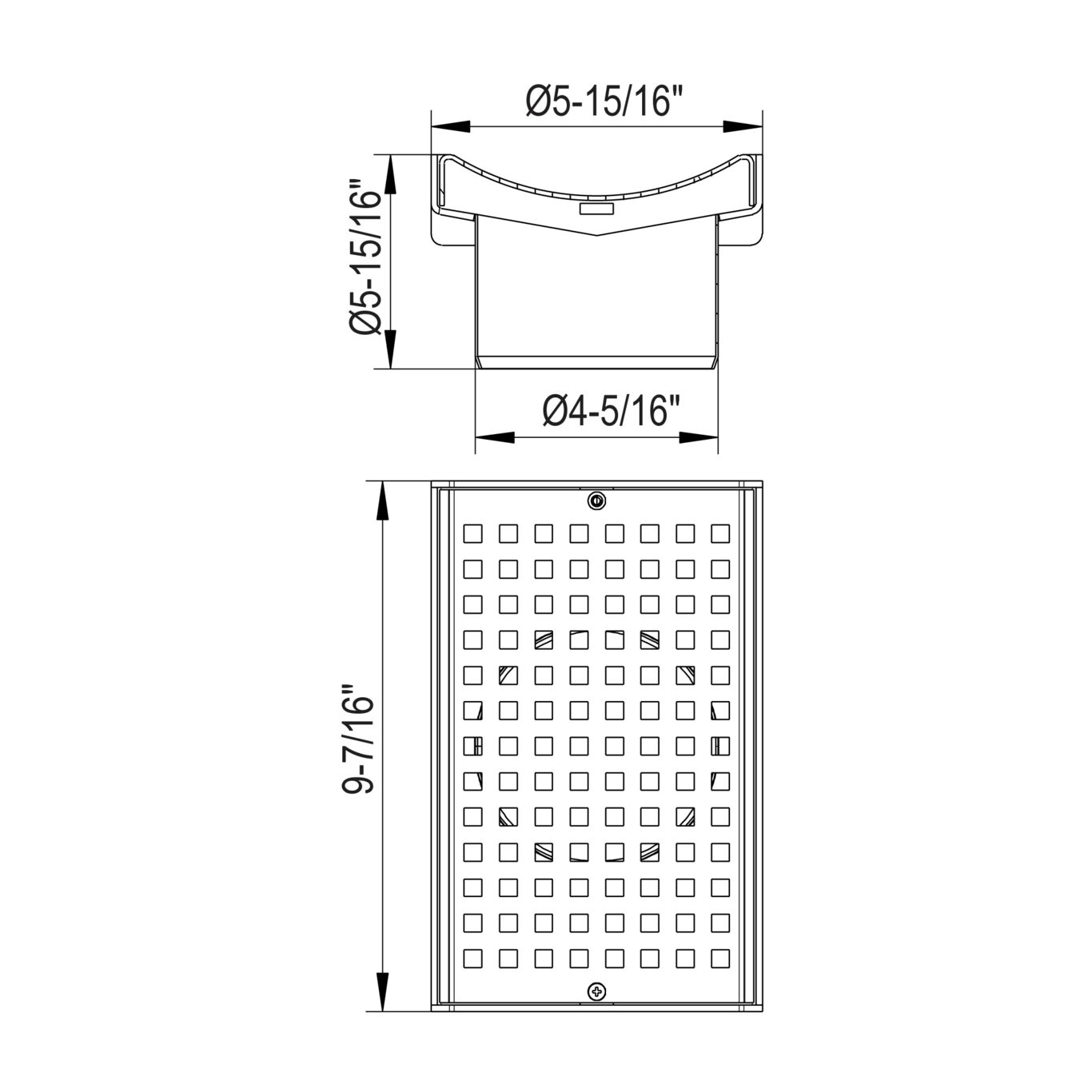

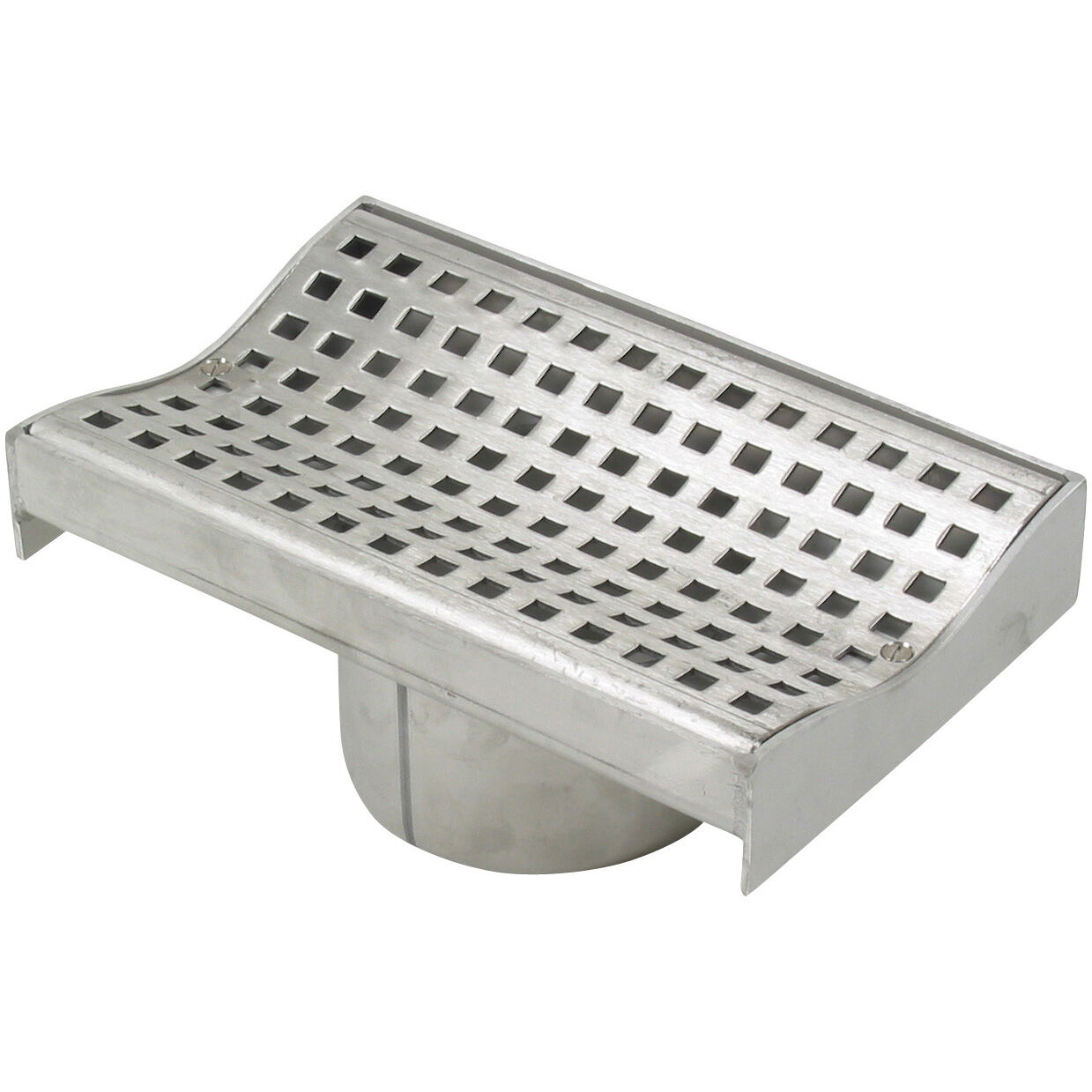

DRAIN SQUARE FOR POOL SIDE - (445.150.110 S)
×
![]()
Part Of the Series: Drain-No membrane-Rectangular
Type no.: 445.150.110 S
EAN no.: 5705499113990
Size: 150x240
DRAIN SQUARE FOR POOL SIDE
-Floor: concrete and tiled
-No membrane, frame: 5-7/8 x 9-1/2 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Frame Shape | rectangular |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 97 |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 150x240 |
| Size of Frame (Inch) | 5-7/8 x 9-1/2 |
| Weight (kg) | 2 |
| Weight (lbs) | 4.41 |
