SLOT CHANNEL 8x1000 END OUTLET - (677AN010-00BA)
×
![]()
Part Of the Series: Slot channel-Liquid membrane
Type no.: 677AN010-00BA
EAN no.: 5705499128246
Size: 8x1000

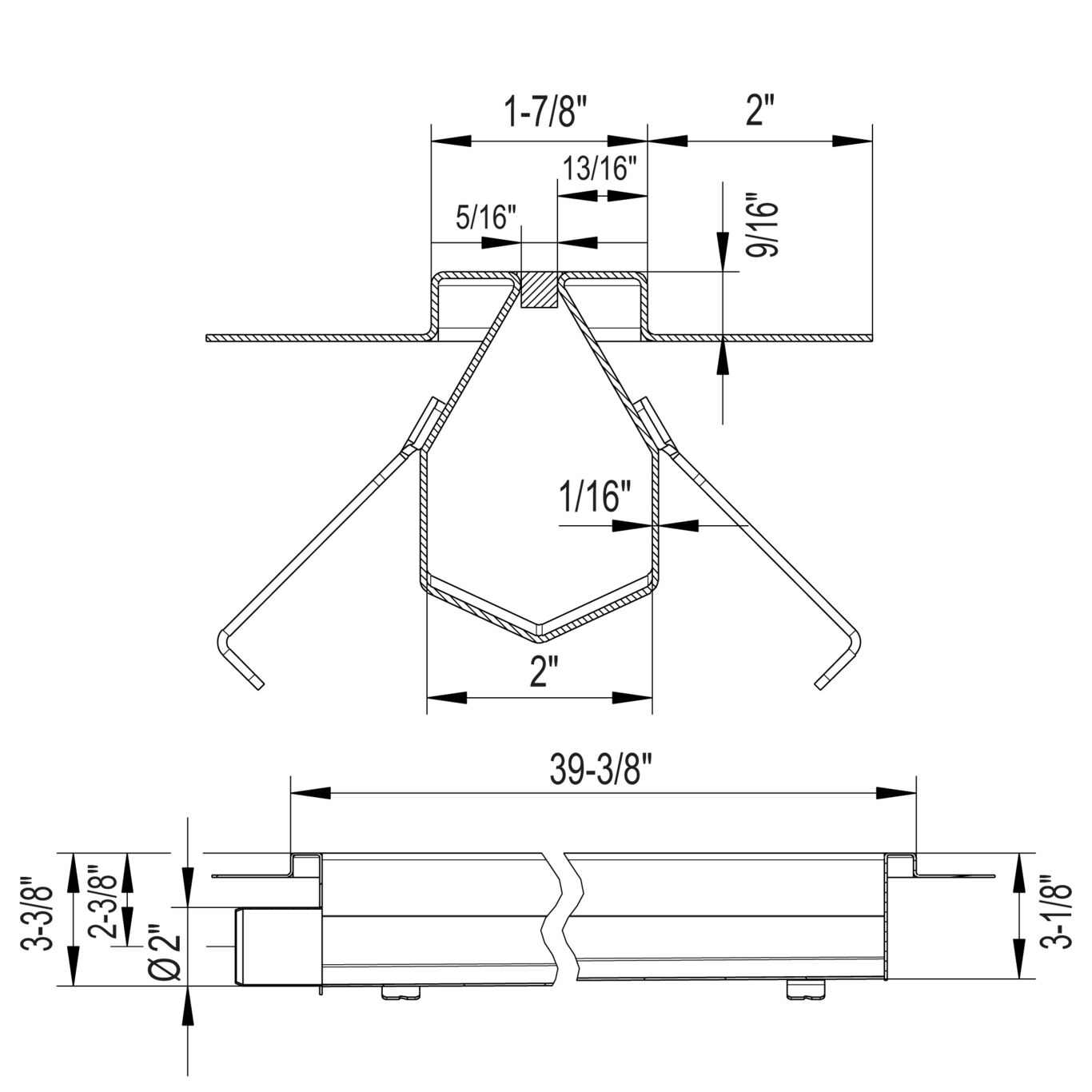

SLOT CHANNEL 8x1000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 85 |
| Outlet Box | No |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 8x1000 |
| Size of Frame (Inch) | 3/8 x 39-3/8 |
| Weight (kg) | 4.68 |
| Weight (lbs) | 10.32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
