ADJUSTABLE SHOWER DRAIN CIRCLE, LOW - (202.300.075)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 202.300.075
EAN no.: 5705499118292
VVS no.: 153616113
RSK no.: 7119215
NRF no.: 3394337
Size: Ø155

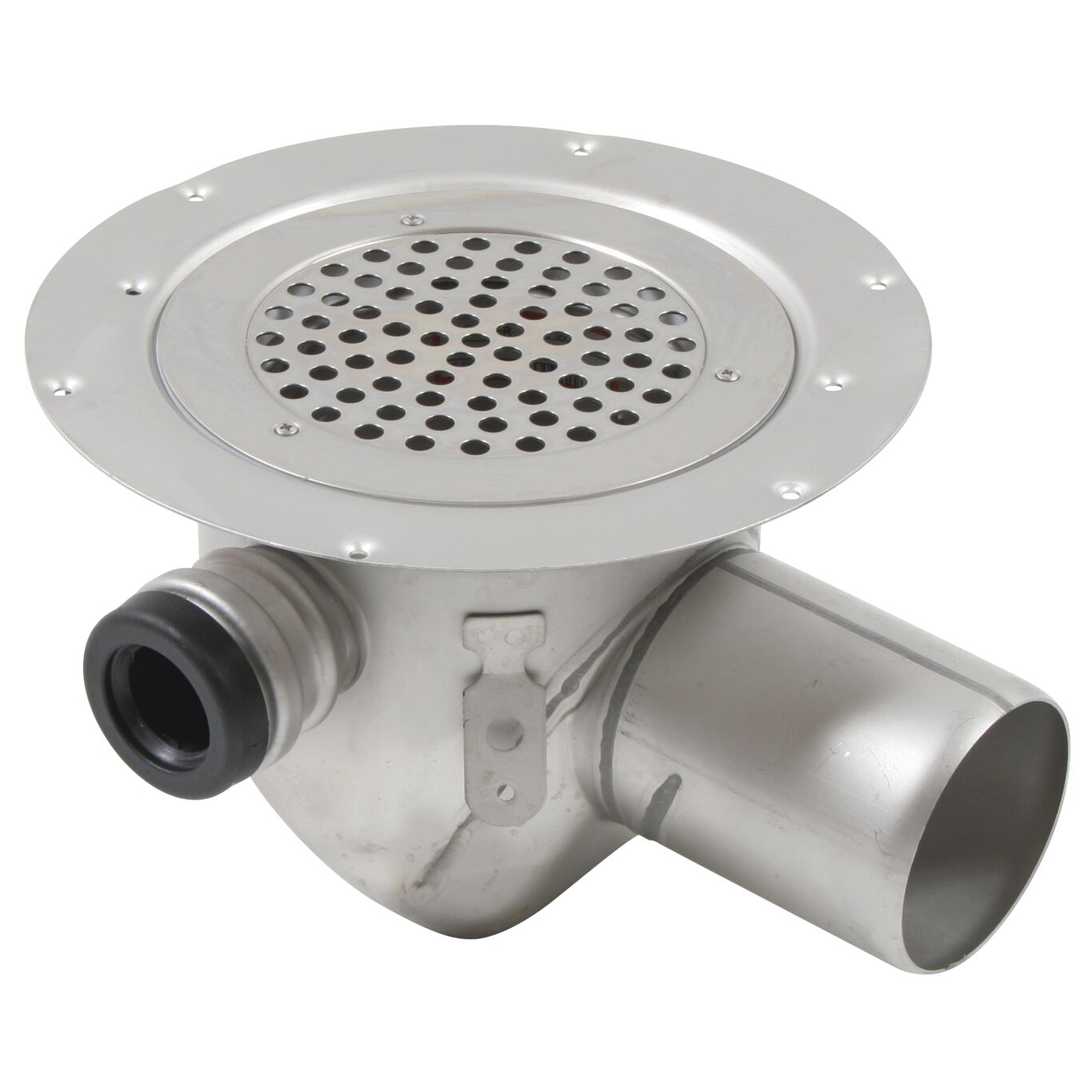

ADJUSTABLE SHOWER DRAIN CIRCLE, LOW
-With side inlets & integrated water trap
-Floor: vinyl
-Grating: Ø6-1/8 inch
-Outlet: Ø3 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 152 |
| Minimum Height (mm) | 137 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of Inlets (Inch) | 3 (Ø1-1/4 inch, 1-1/2 inch) |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 1.65 |
| Weight (lbs) | 3.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
