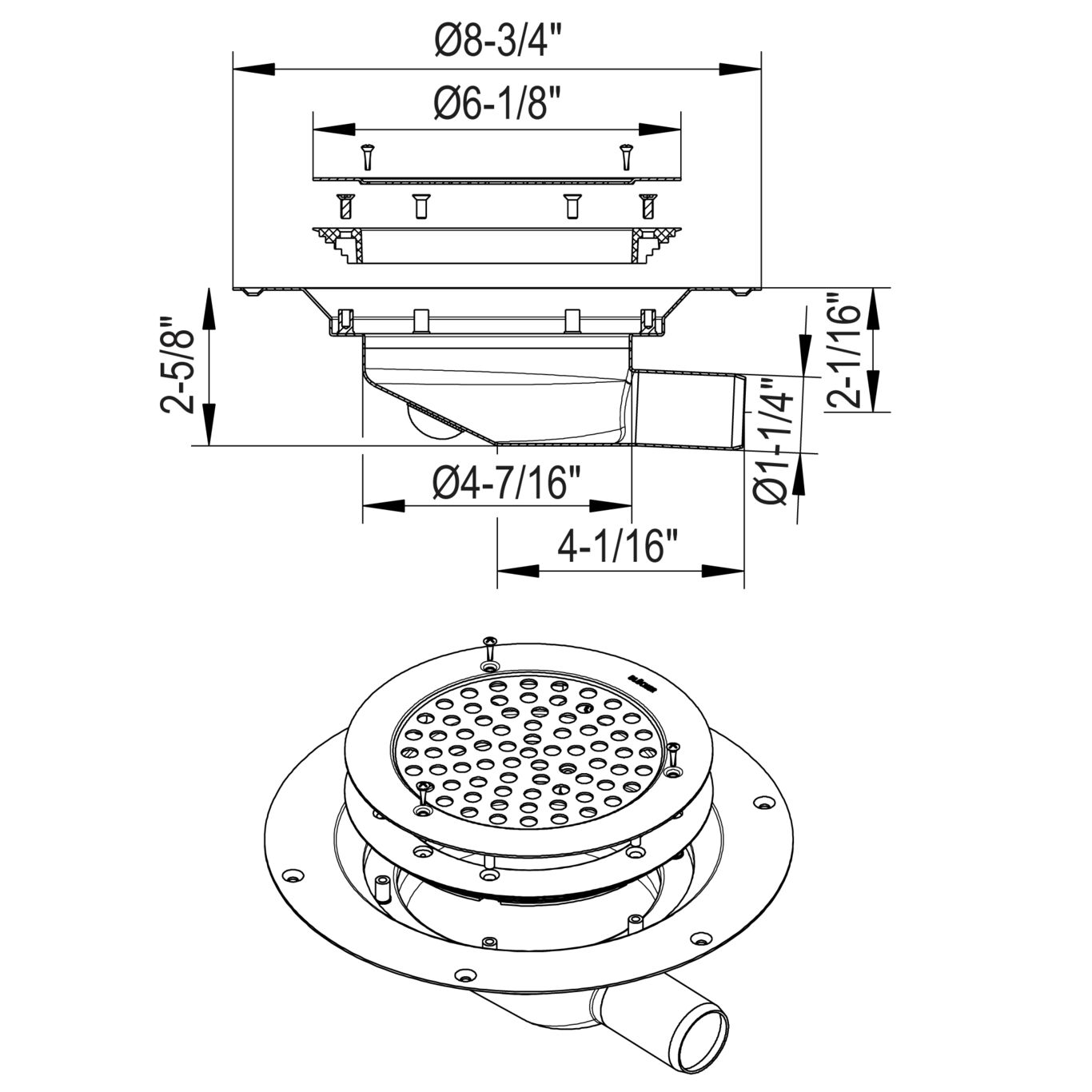

MINI SHOWER DRAIN CIRCLE - (281.300.032 S)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 281.300.032 S
EAN no.: 5705499107395
VVS no.: 153492140
LVI no.: 3304302
Size: Ø155
MINI SHOWER DRAIN CIRCLE
-Removable water trap cannot be used
-Floor: vinyl
-Grating: Ø6-1/8 inch
-Outlet: Ø1-1/4 inch, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 67 |
| Number of Inlets | 0 |
| Number of Screw Holes | 3 |
| Outlet dia. (mm) | 32 |
| Outlet Diameter (Inch) | 1-1/4 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 0.75 |
| Weight (lbs) | 1.65 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
