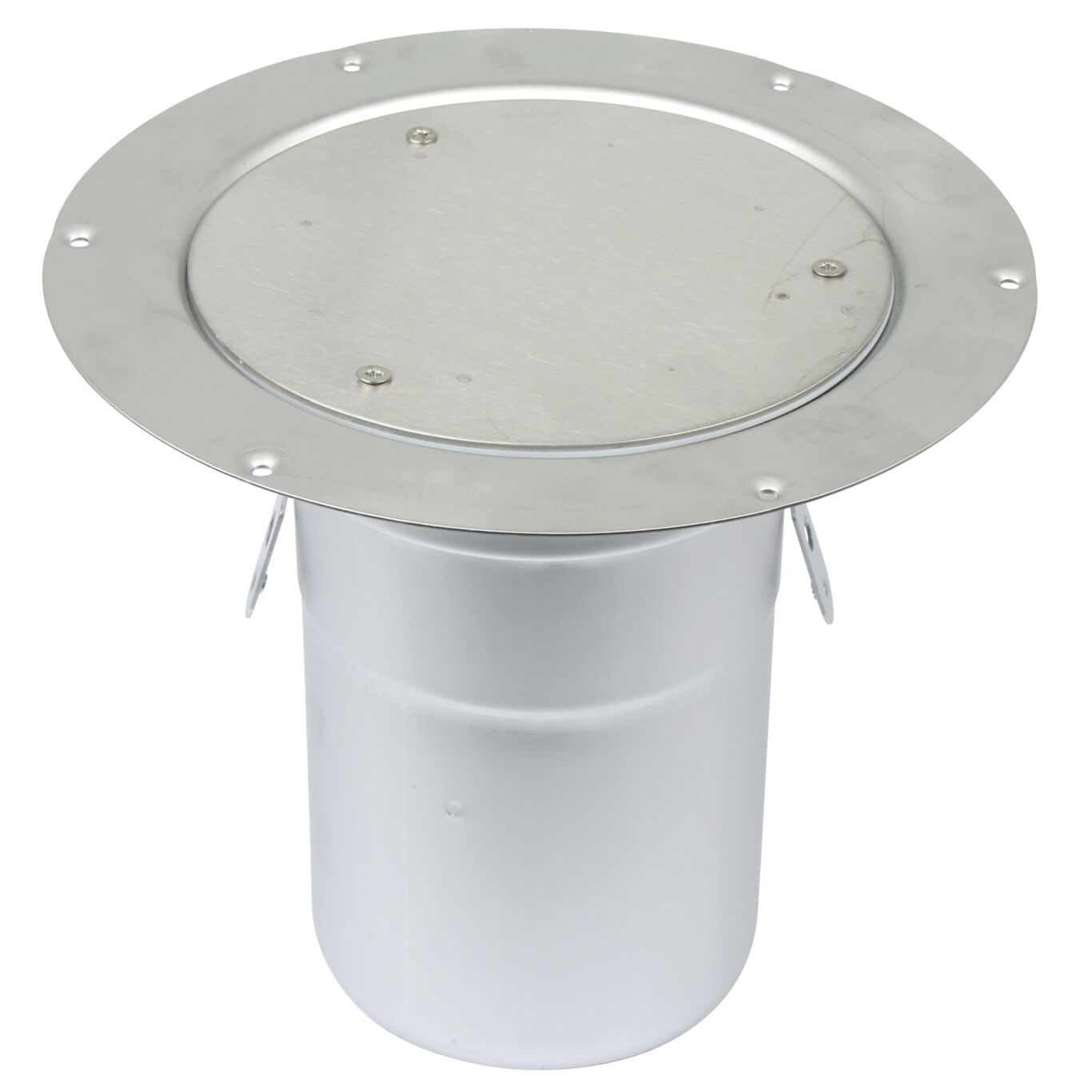

RODDING EYE FOR VACUUM HANDLE - (244.155.110 S)
×
![]()
Part Of the Series: Rodding eye-Vinyl-155
Type no.: 244.155.110 S
EAN no.: 5705499113938
RSK no.: 7120128
LVI no.: 3305819
Size: Ø155
RODDING EYE FOR VACUUM HANDLE
-Floor: vinyl
-Frame: Ø6-1/8 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI316L/EN1.4404
US order number: BCO-224-316
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 (250) |
| Load class EN1253(lbs) | K3 (551) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 192 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø155 |
| Size of Frame (Inch) | Ø6-1/8 |
| Weight (kg) | 2 |
| Weight (lbs) | 4.41 |
-
Approval Information
For approval information, please refer to the below approval certificates.
