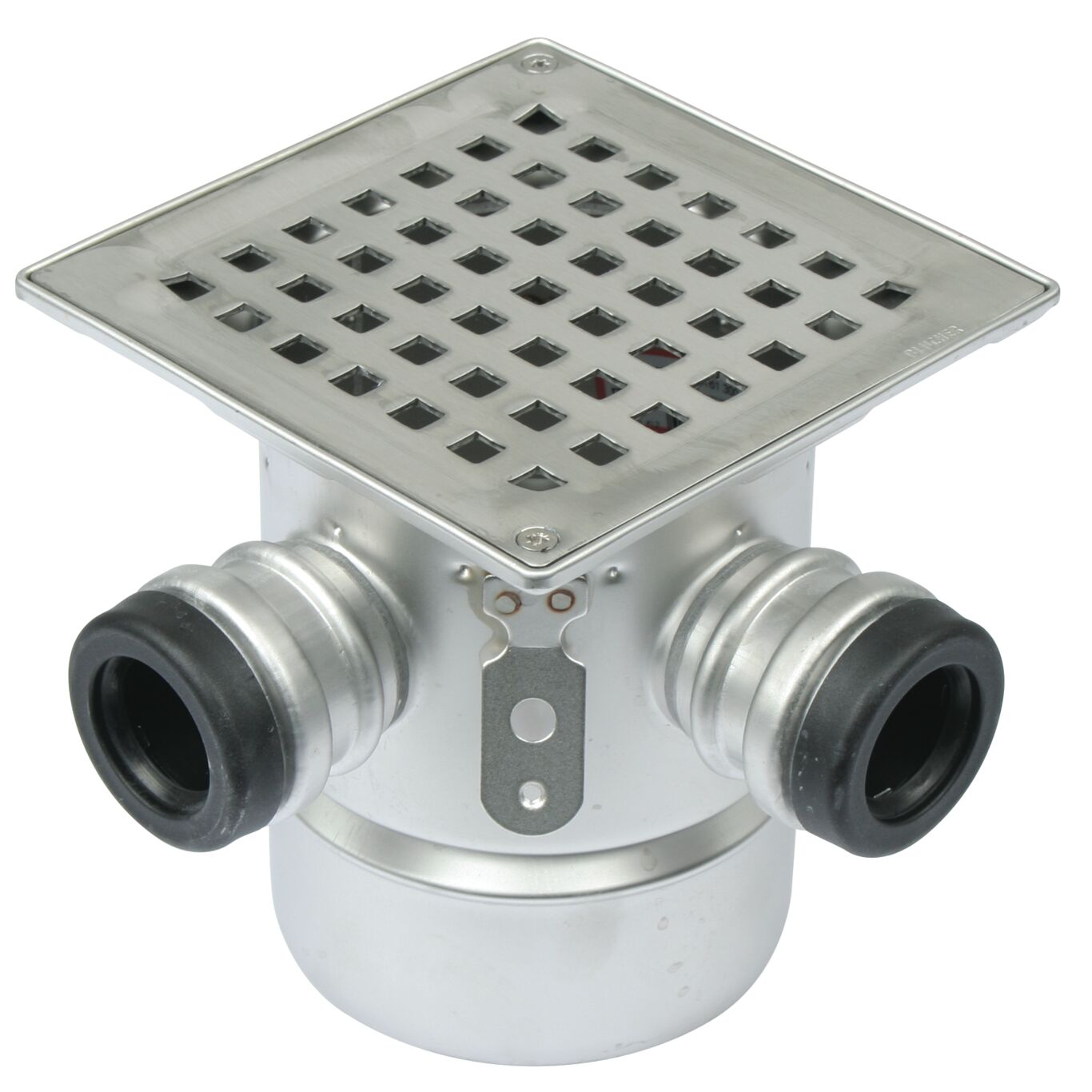

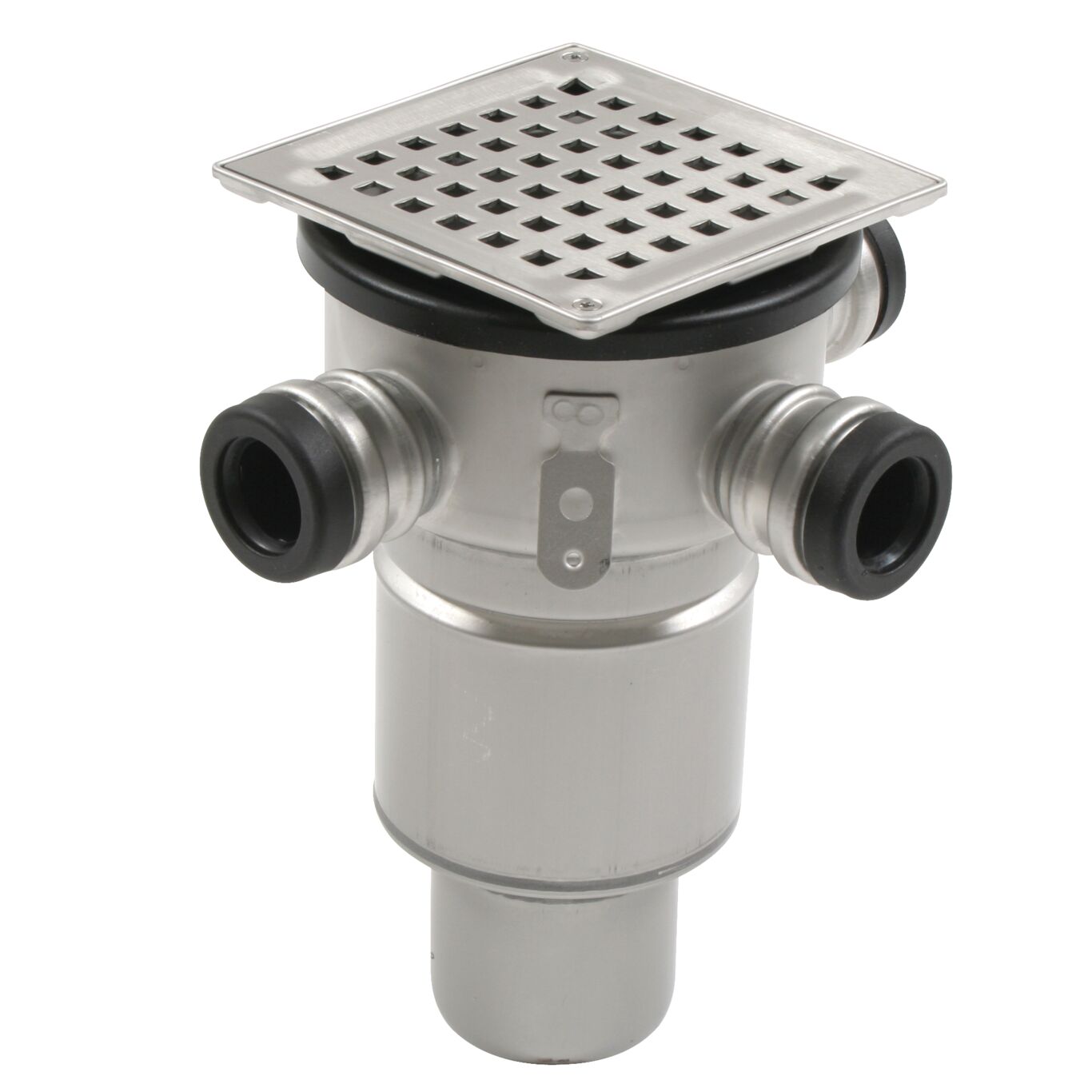

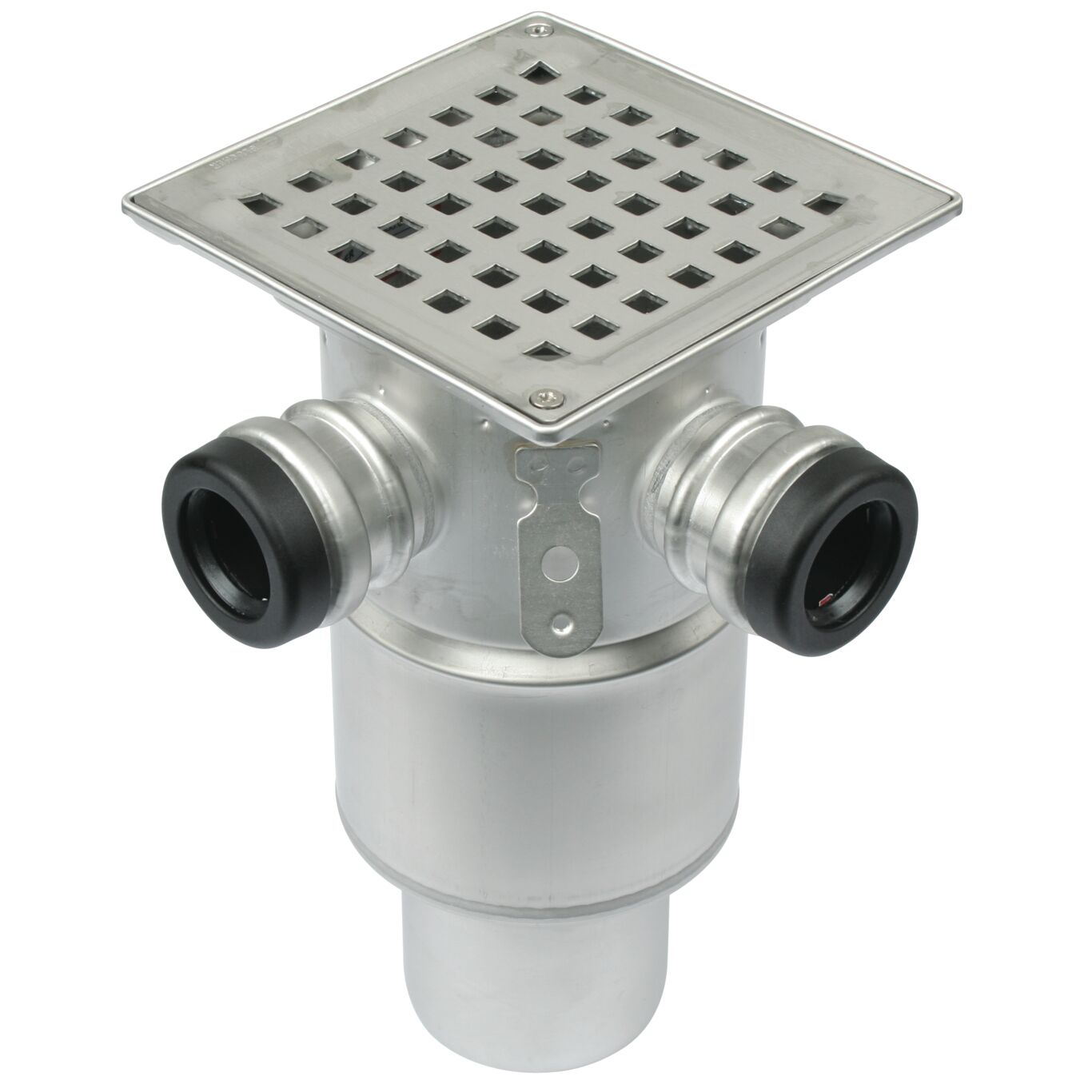

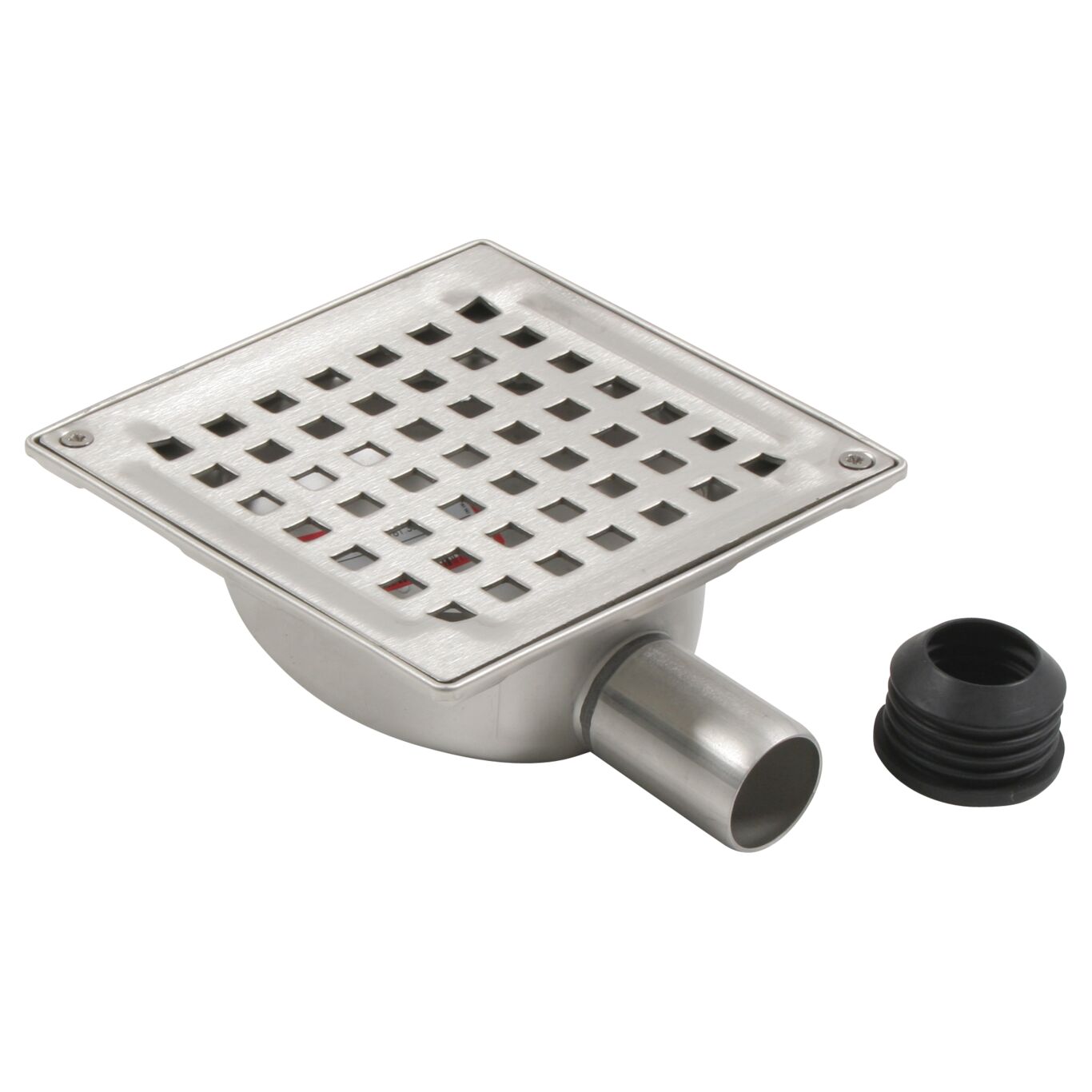

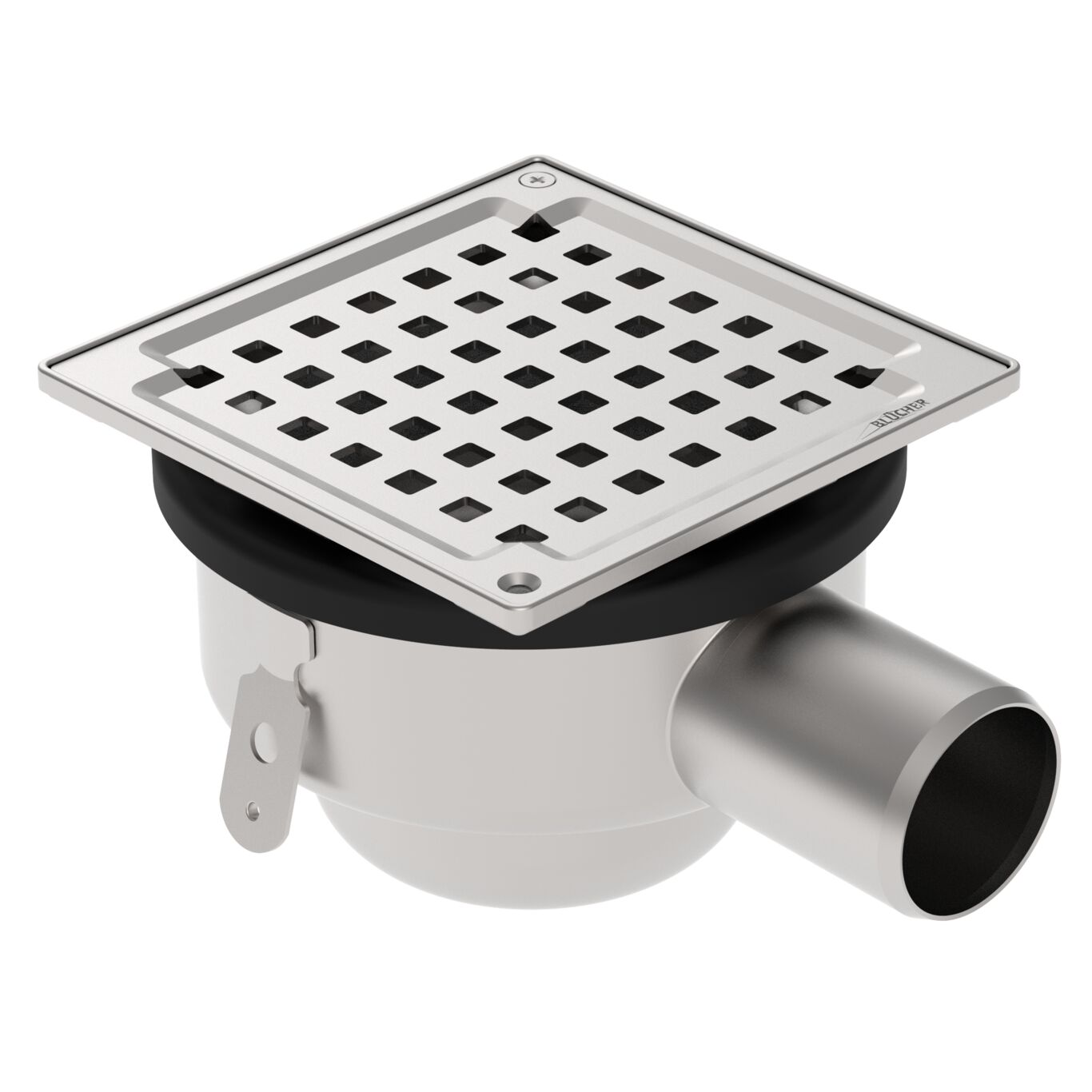

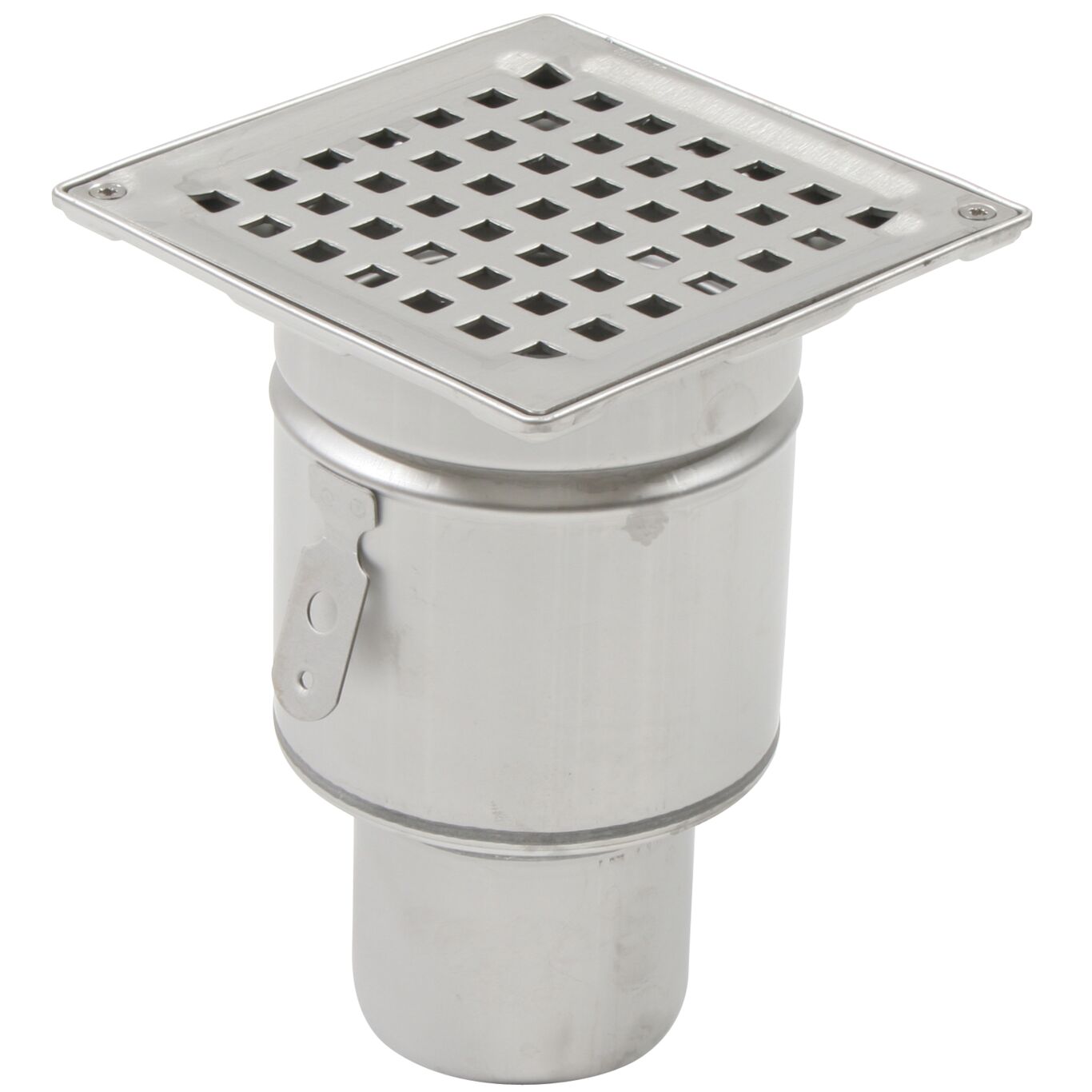

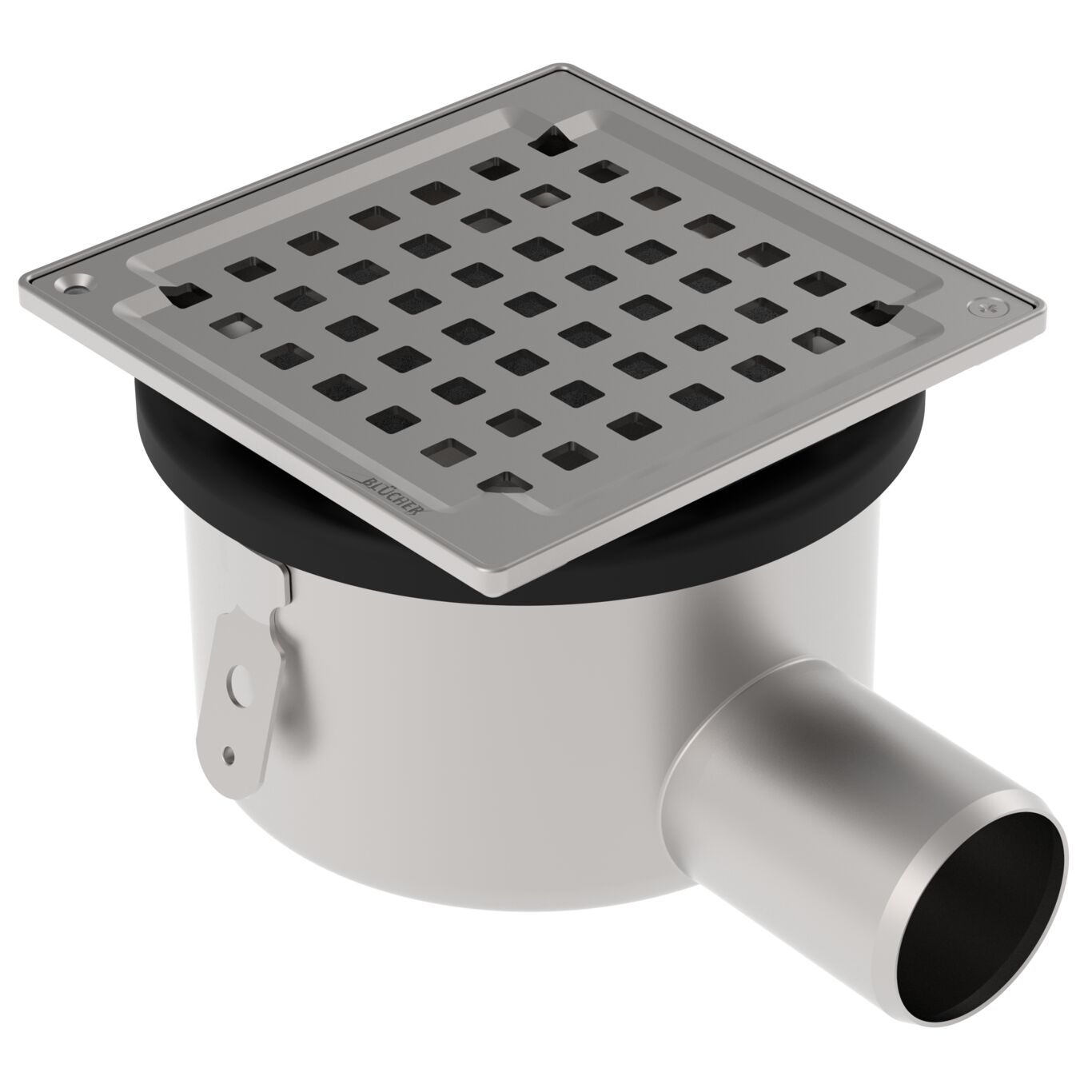

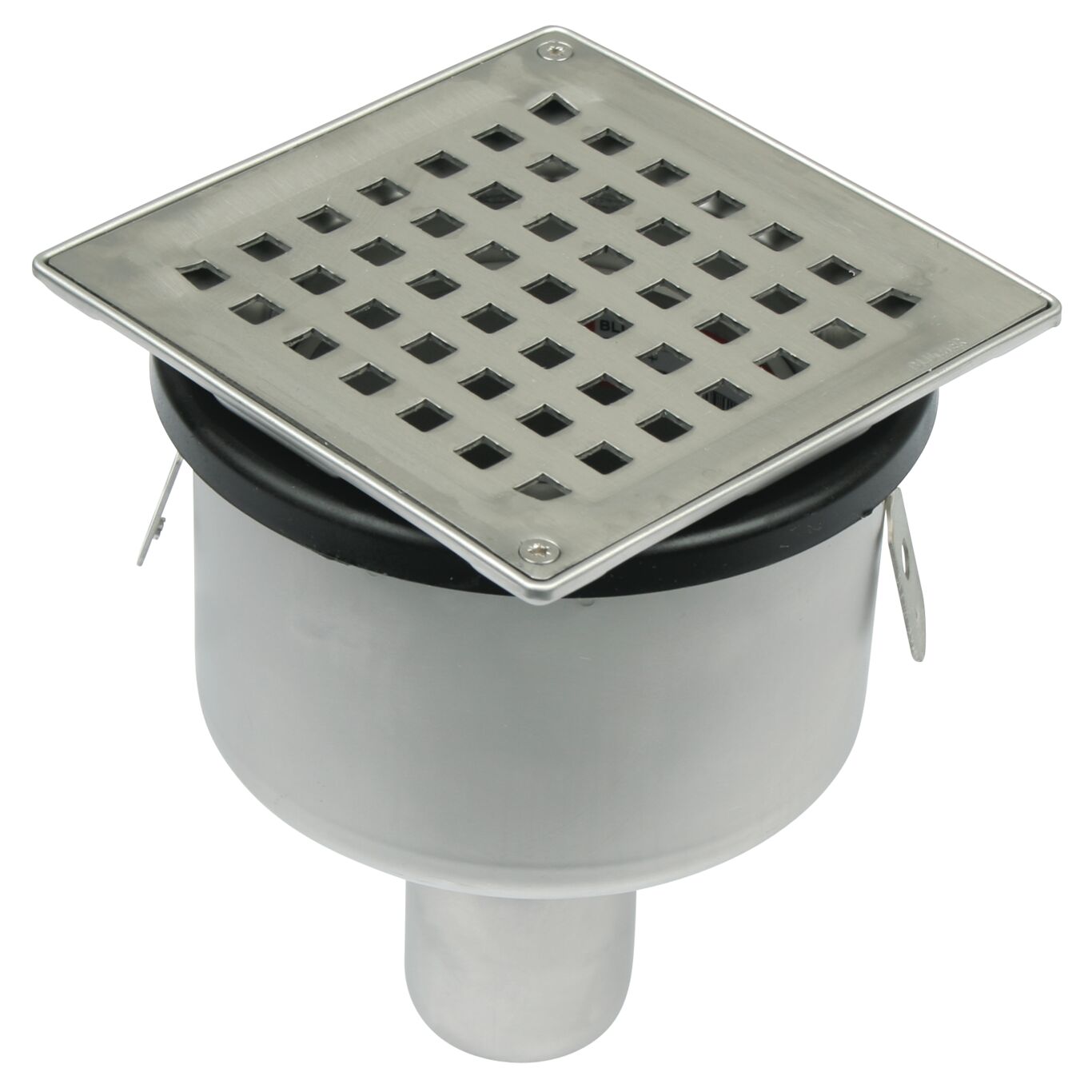

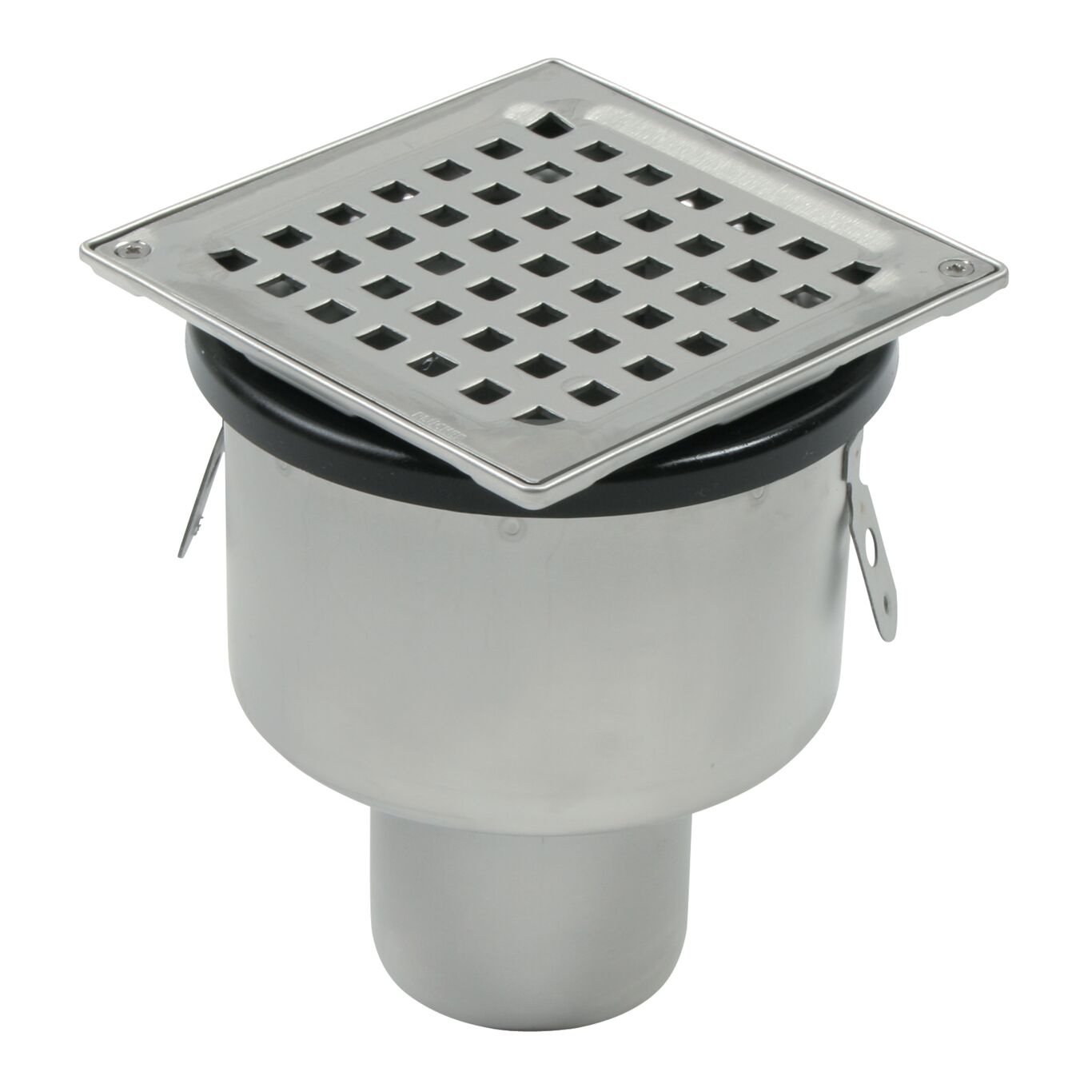

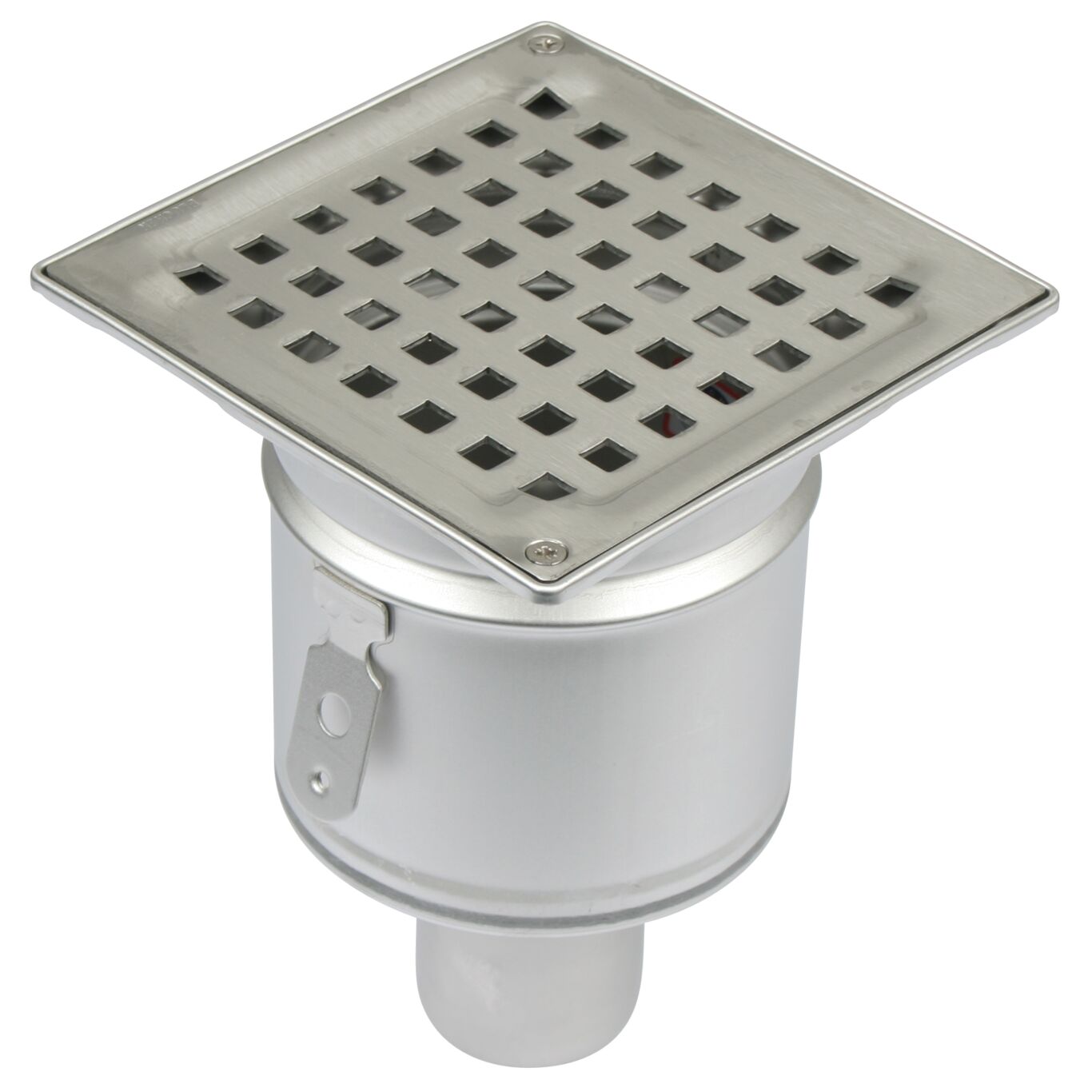

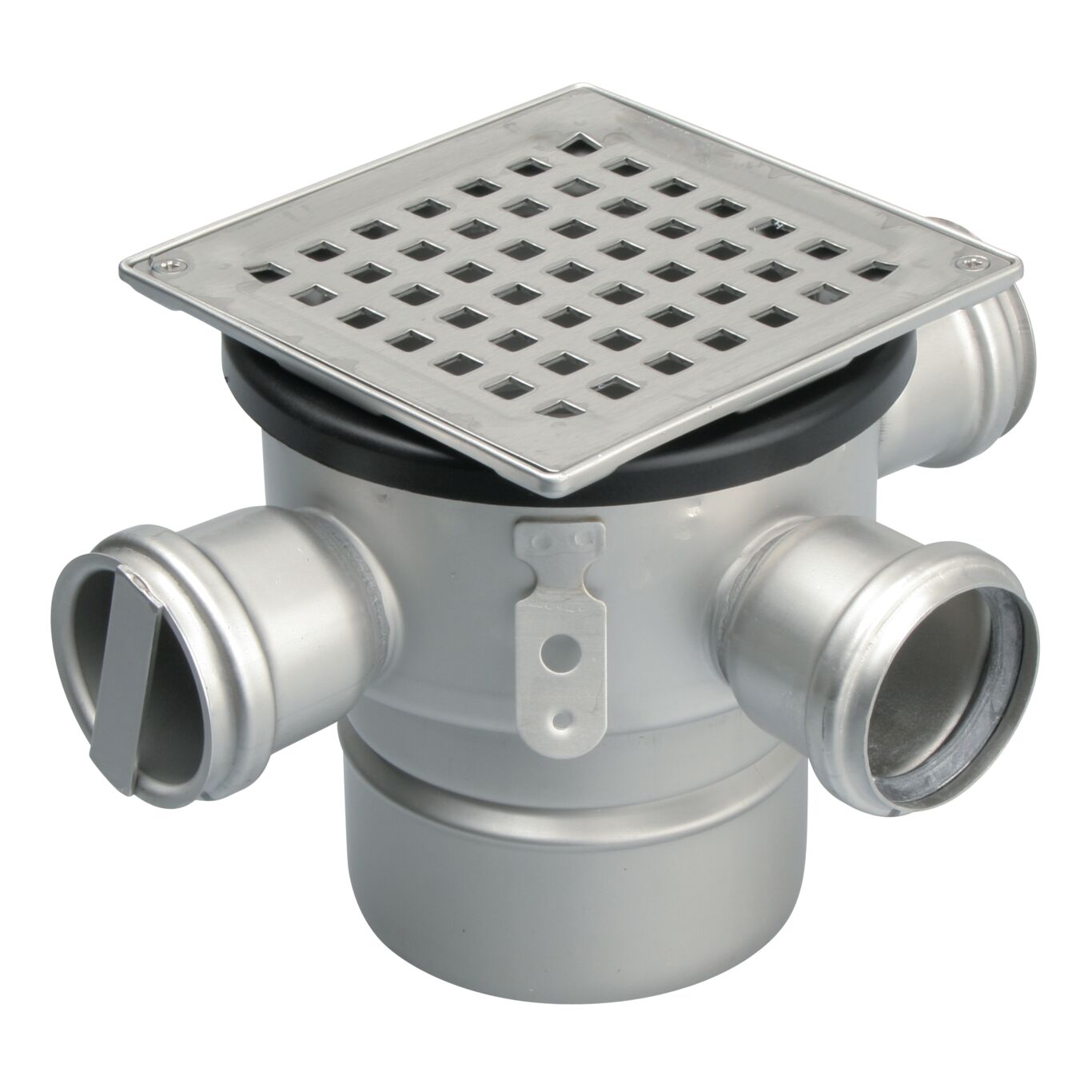

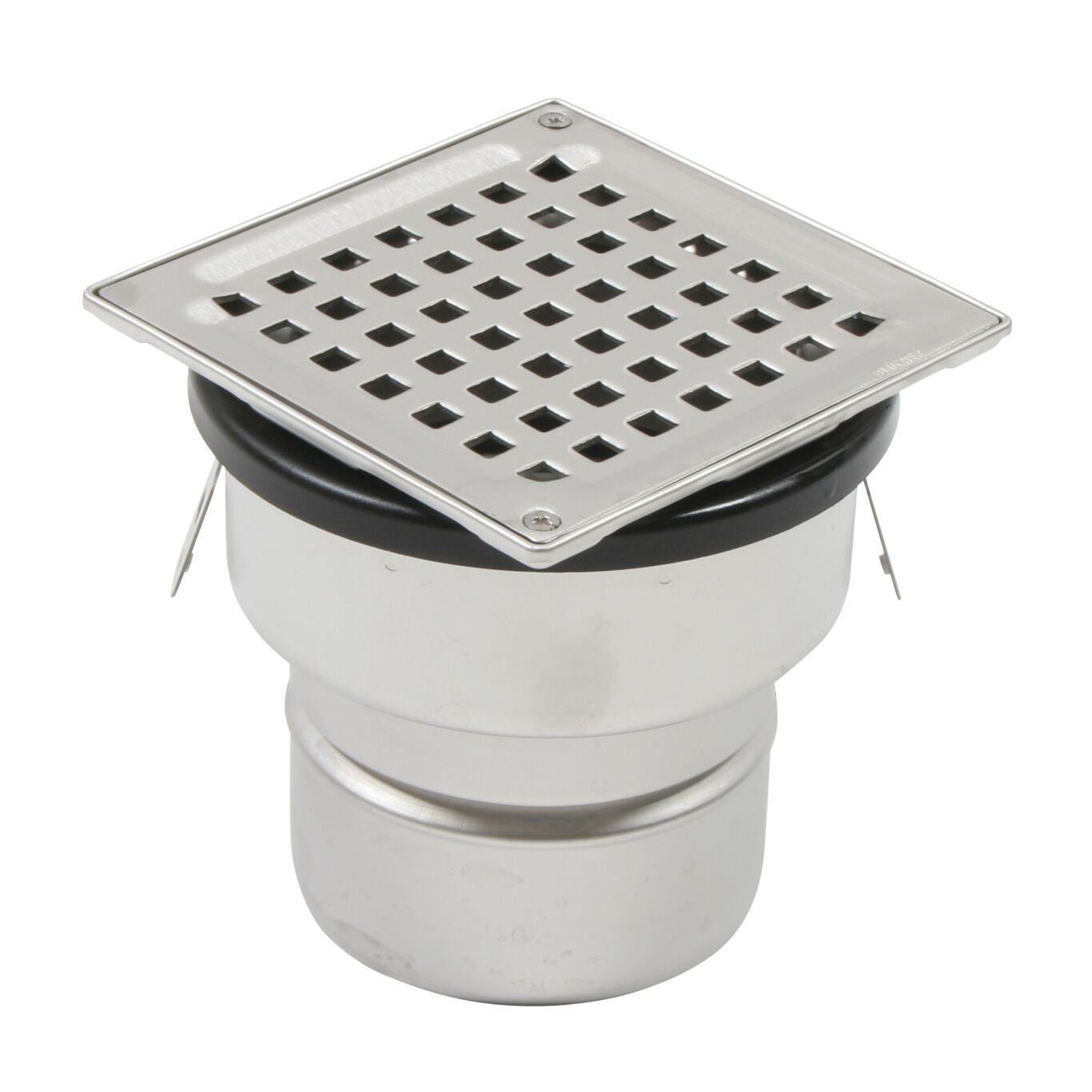

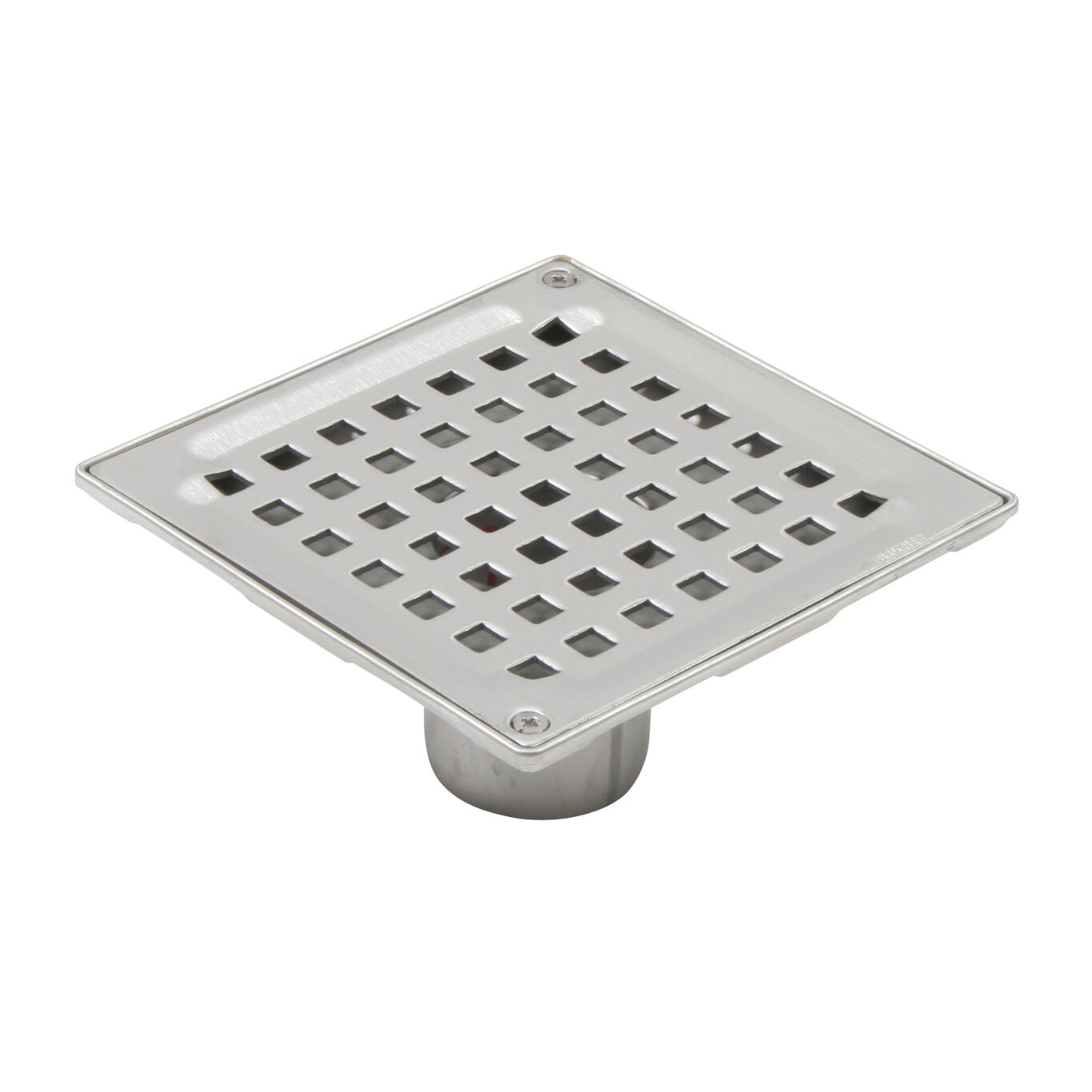

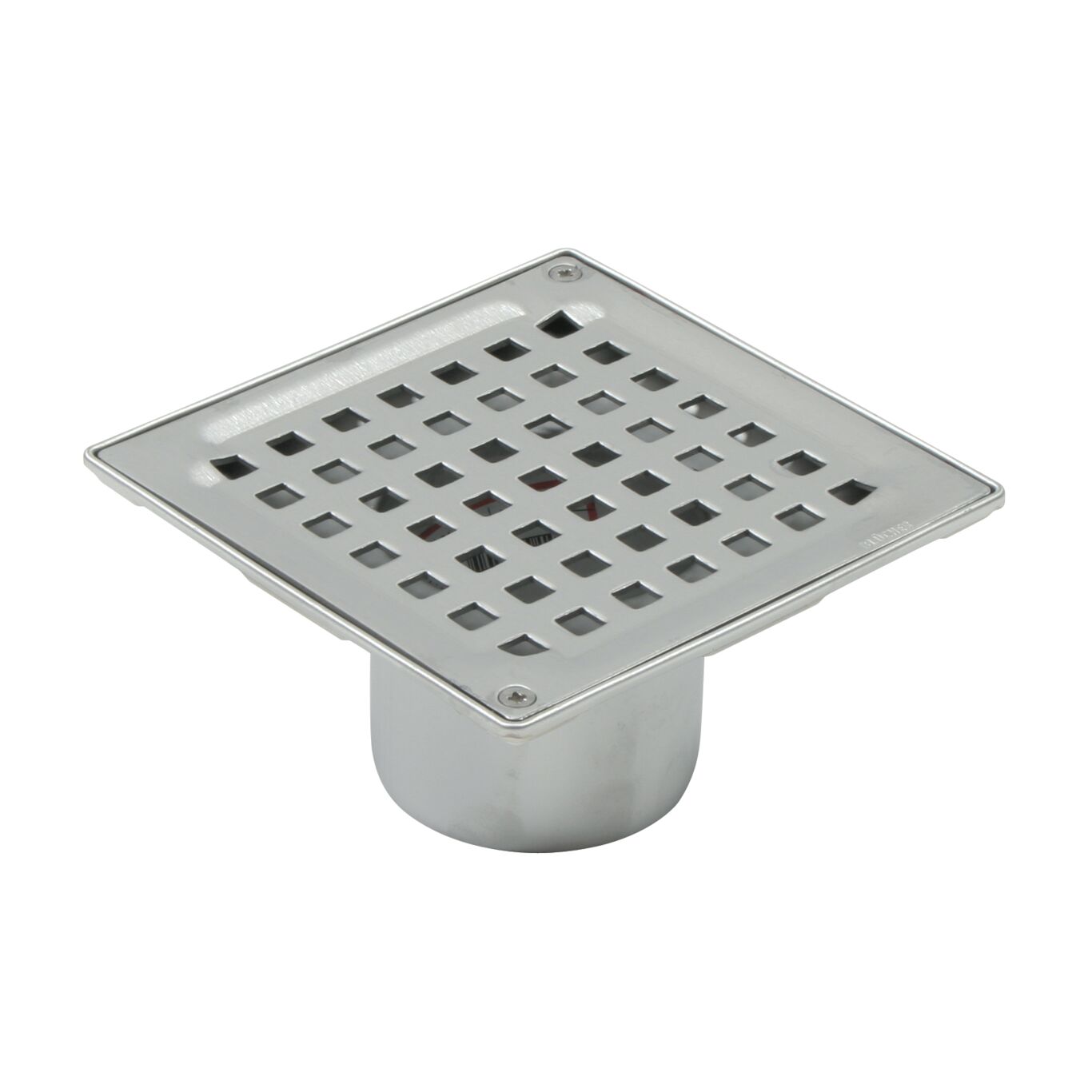

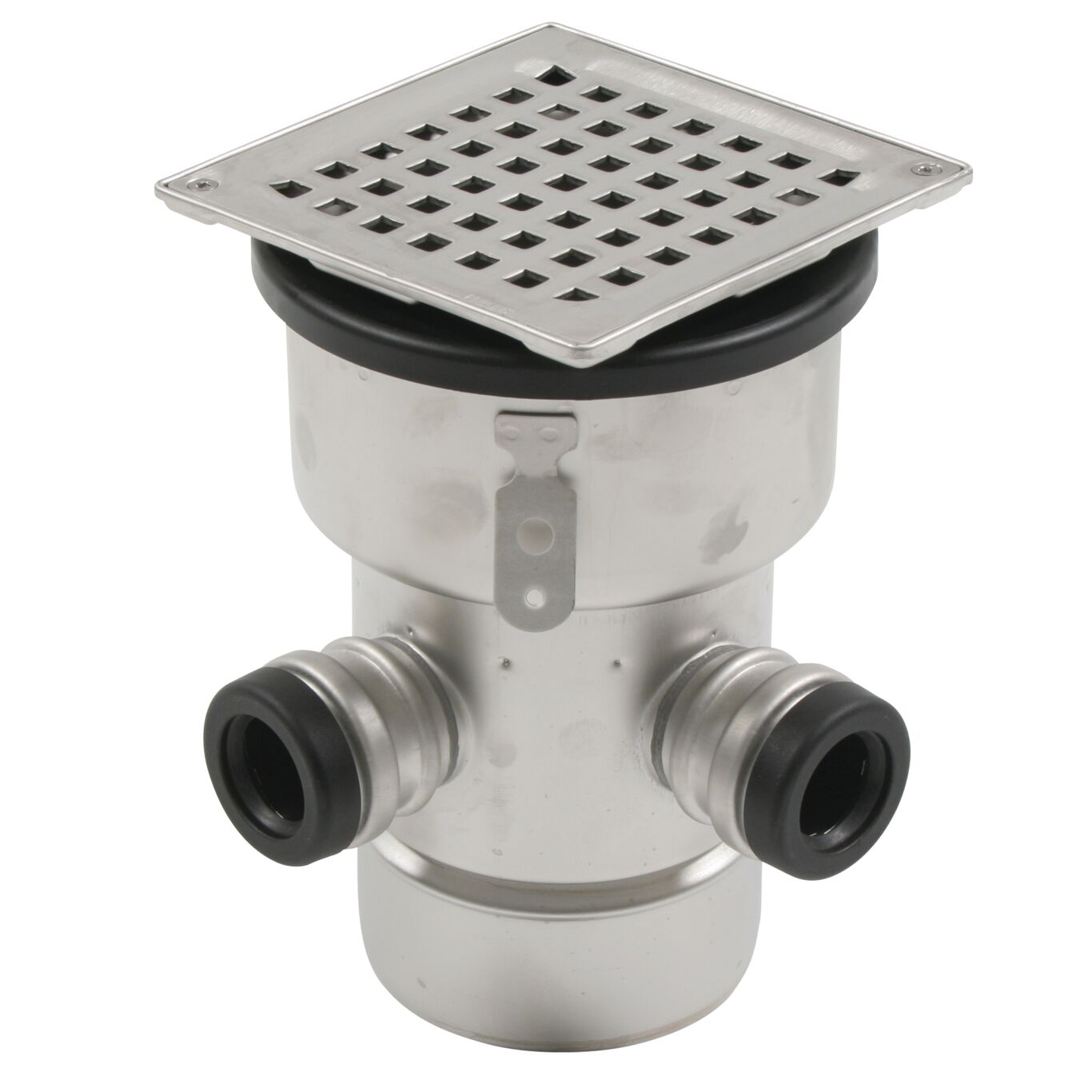

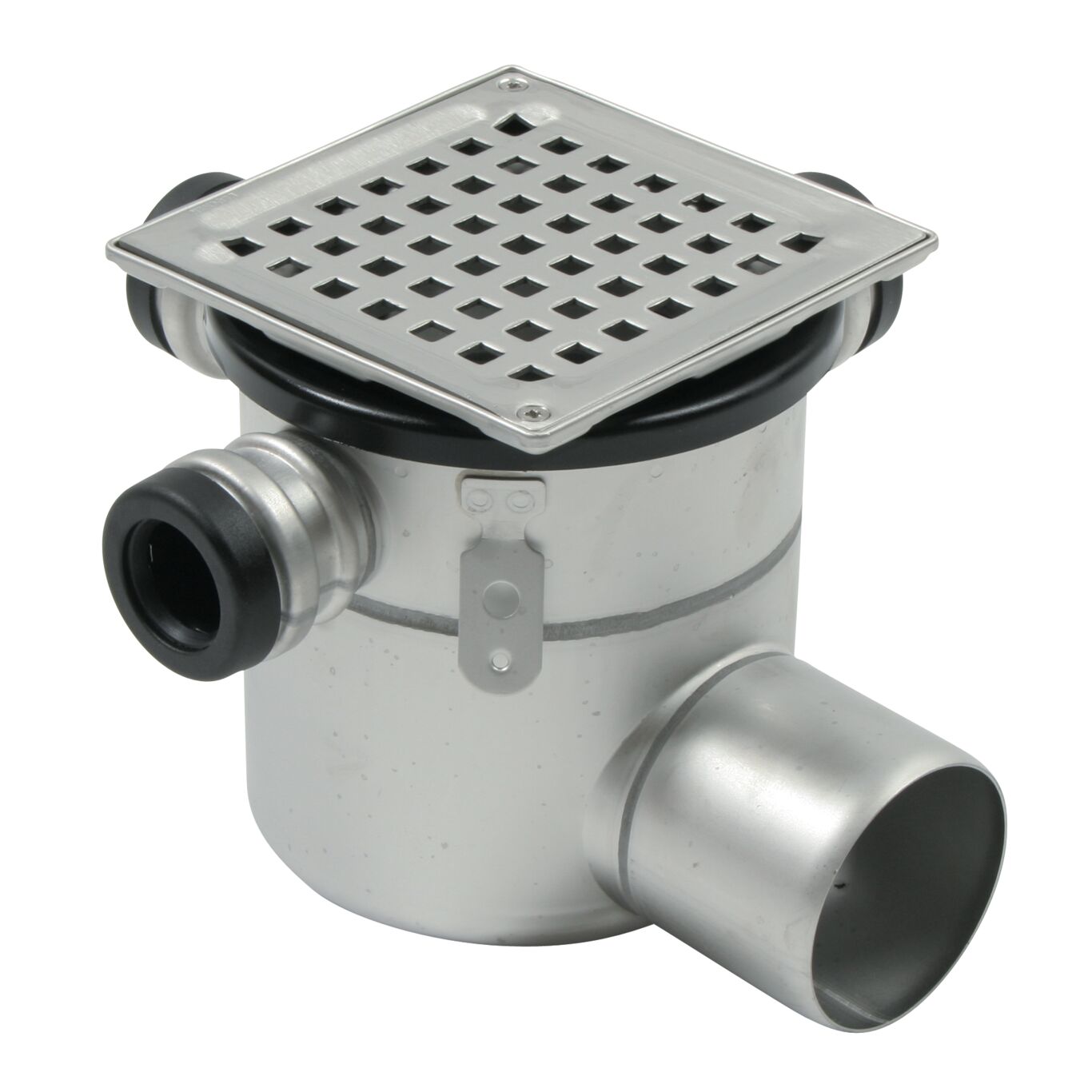

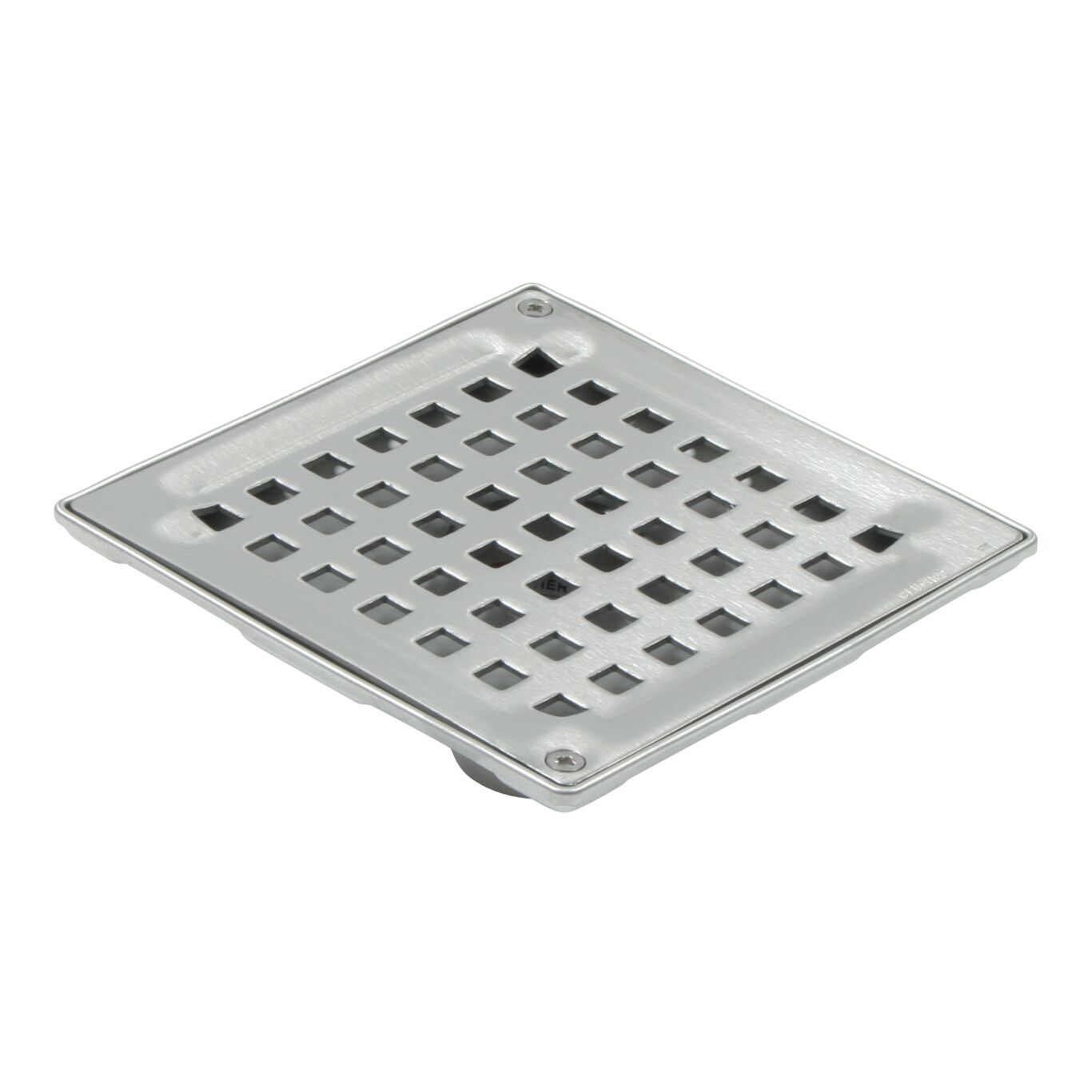

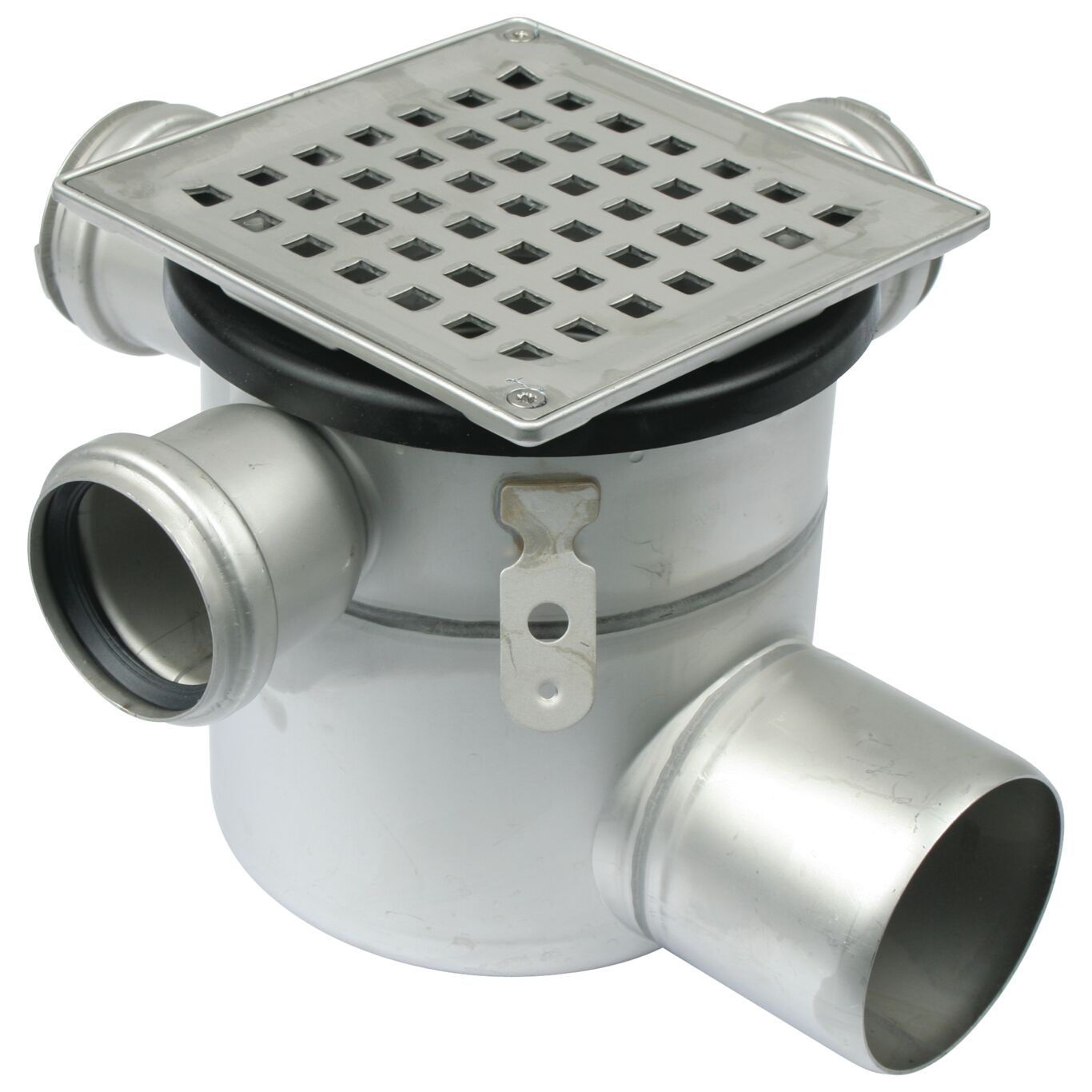

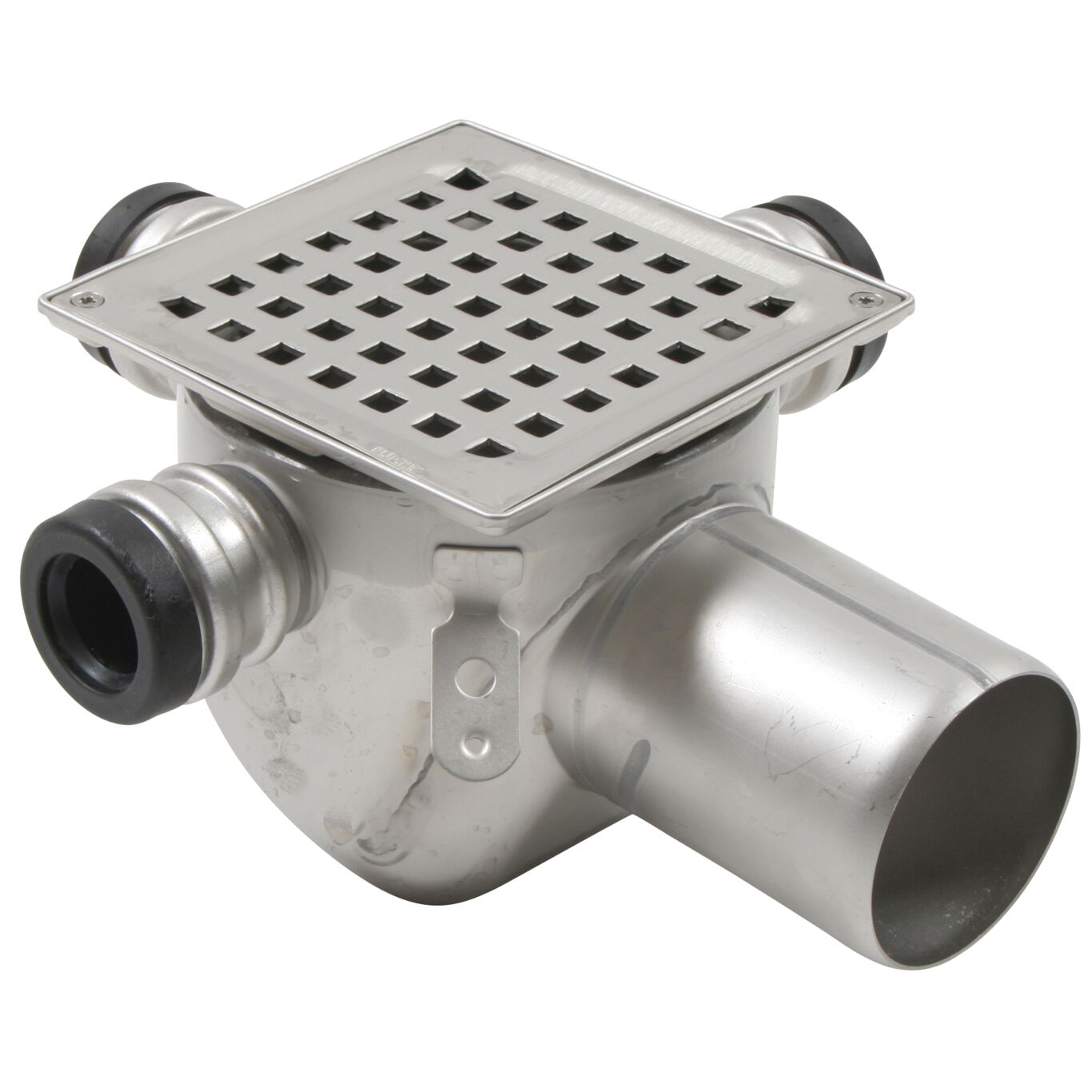

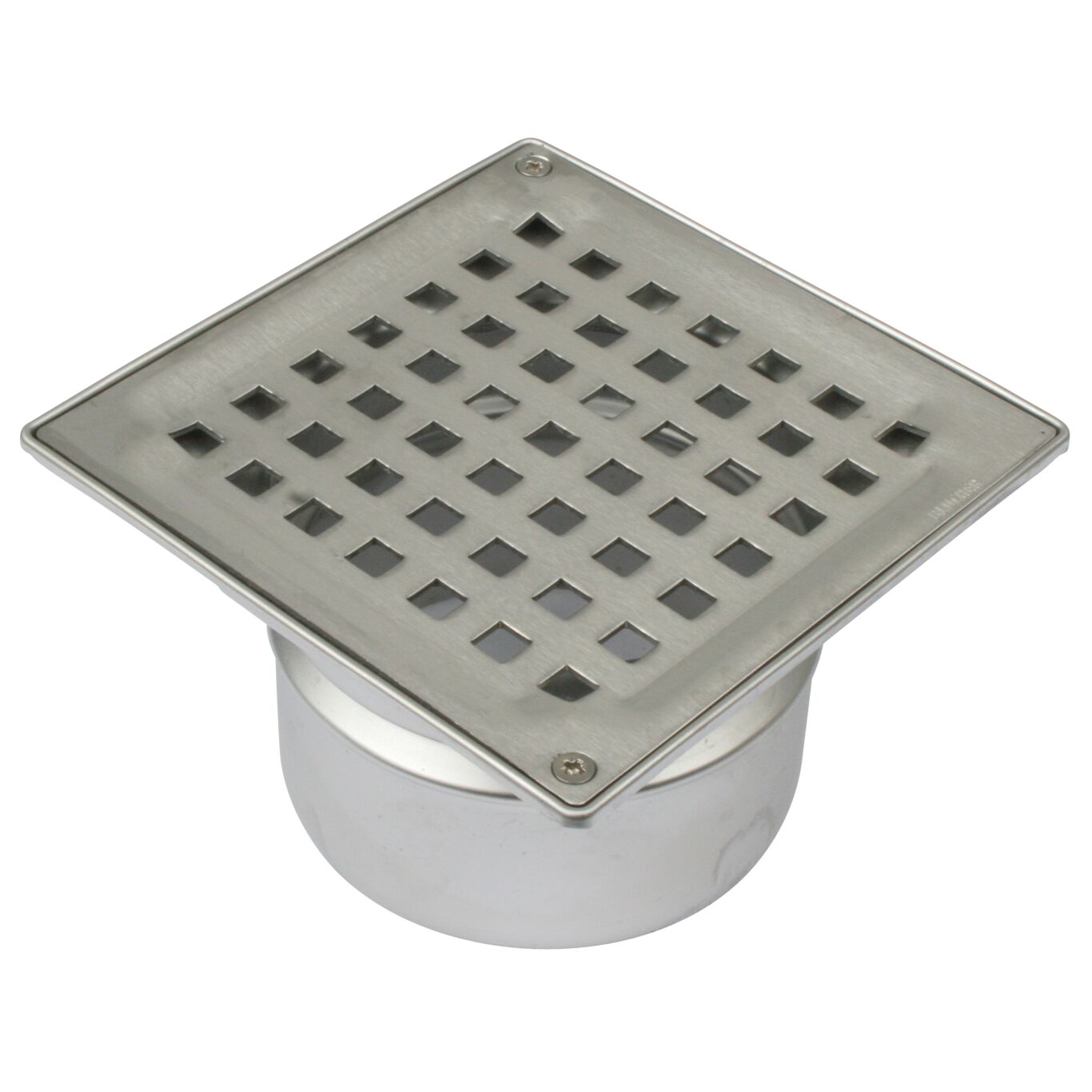

Floor drain without membrane. Frame size 145x145mm.

Download CAD Collections

2d DWG files

3d STP files


Download MasterSpec Documents

MasterSpec

Floor drain without membrane. Frame size 145x145mm.

  • Made from acid-pickled stainless steel.
  • Designed in accordance with standard EN1253.
  • Quality controlled and tested.
