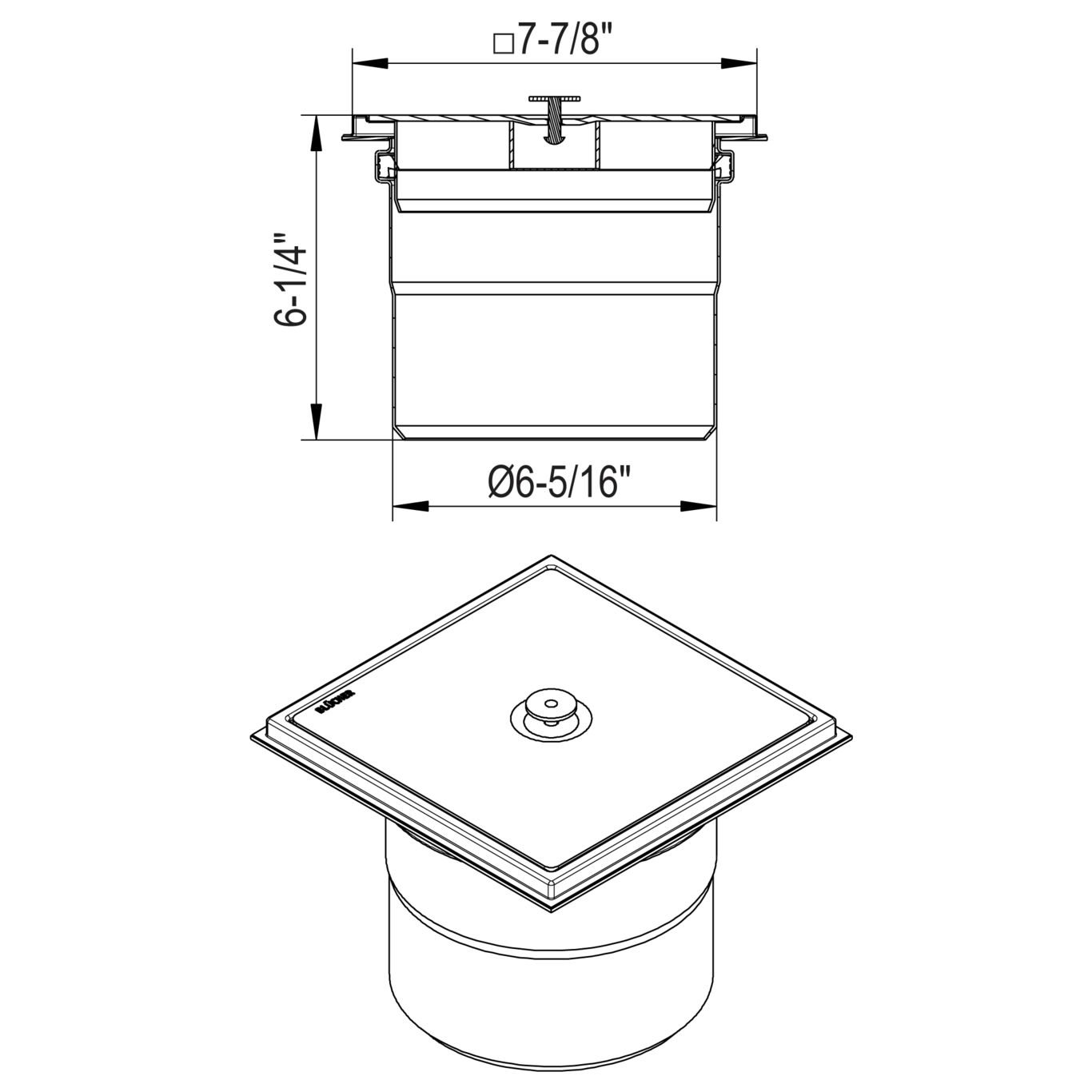

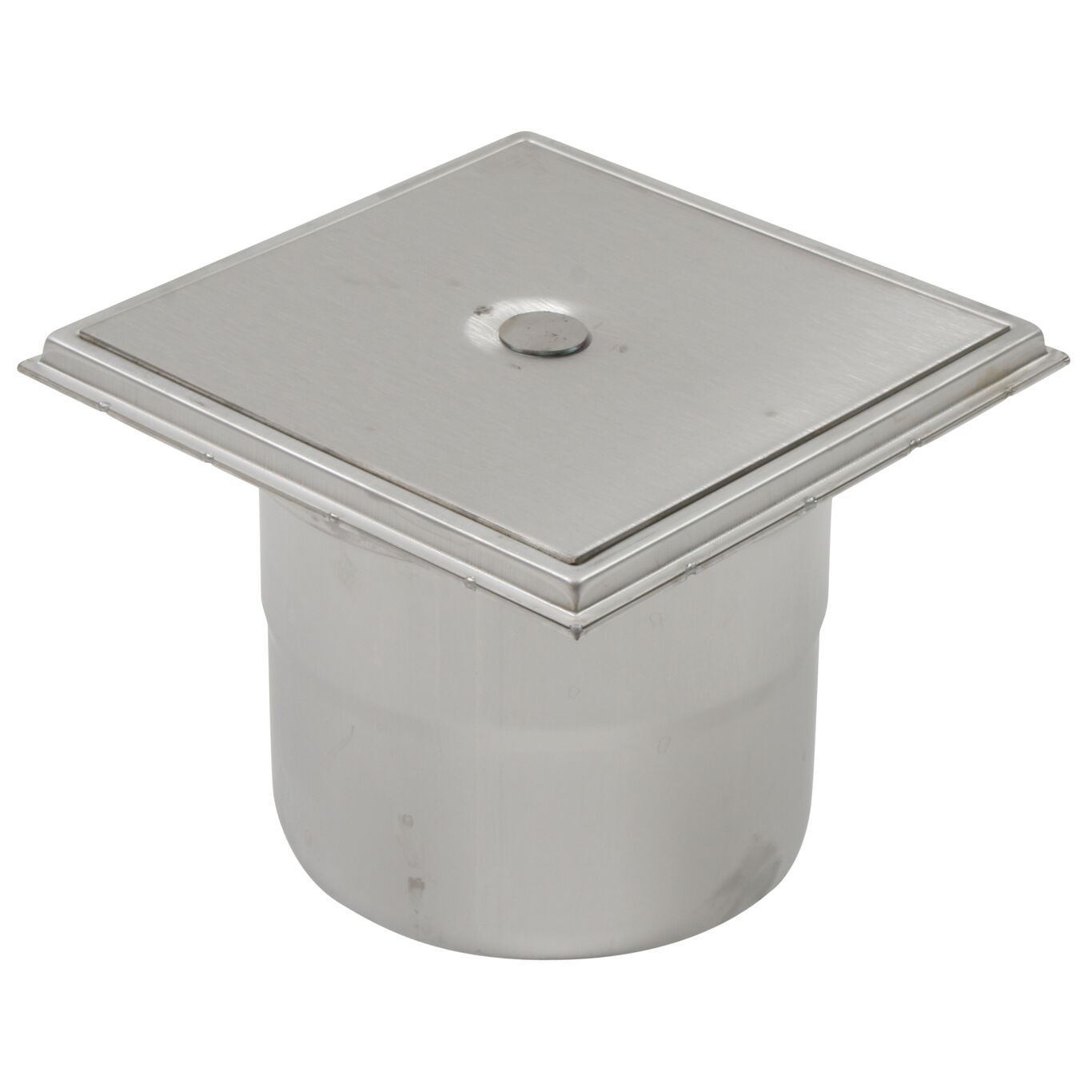

RODDING EYE WITH PULL NIPPLE - (144.200.160 S)

Part Of the Series: Rodding eye-No membrane-200

Type no.: 144.200.160 S

EAN no.: 5705499408546

LVI no.: 3305803

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled
Load Class EN1253 K3
Load class EN1253(kg) K3 (750)
Load class EN1253(lbs) K3 (1653)
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Number of Screw Holes 2
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 3.15
Weight (lbs) 6.94
