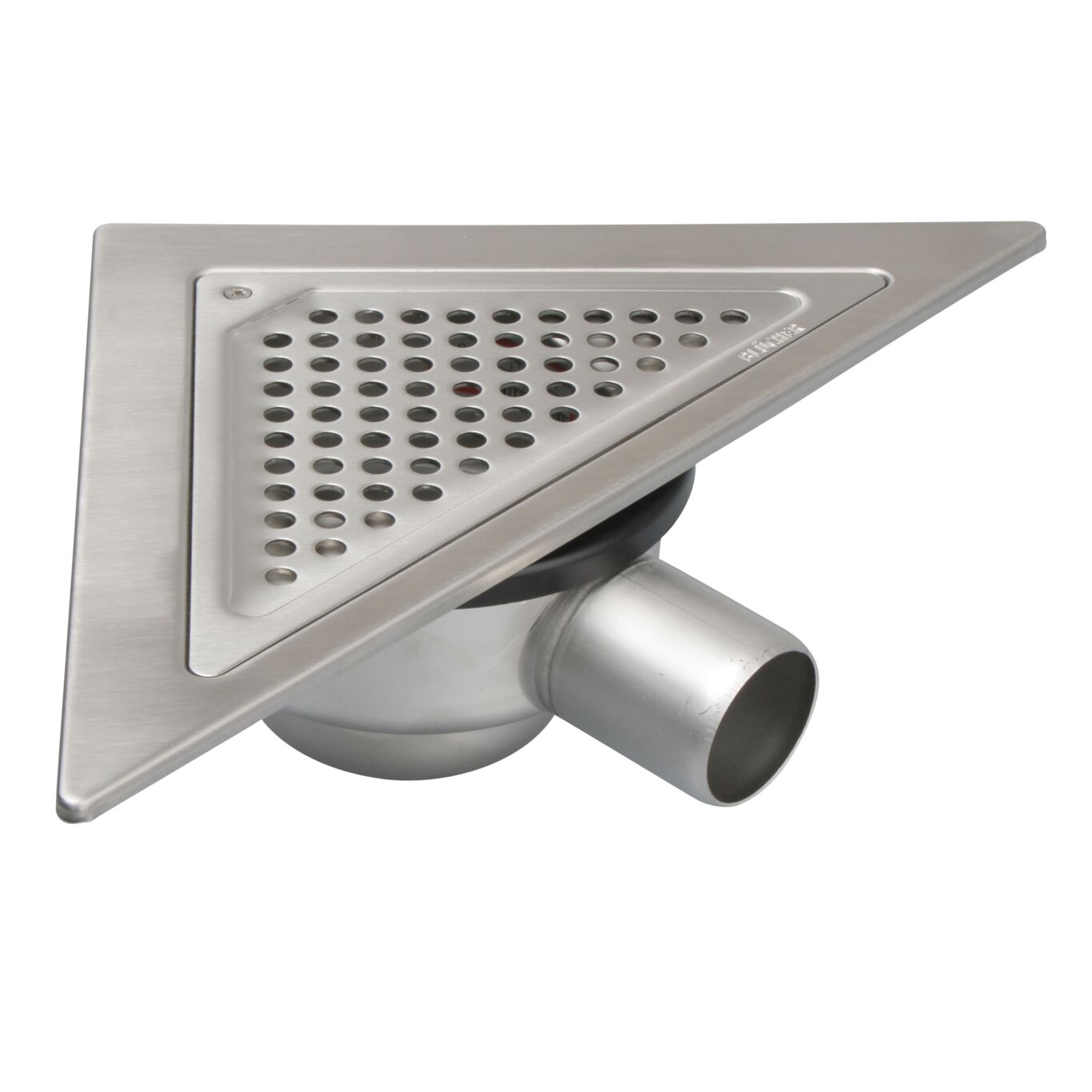

ADJUSTABLE SHOWER DRAIN TRIO, LOW - (114.360.050)
×
![]()
Part Of the Series: Drain-No membrane-Triangular
Type no.: 114.360.050
EAN no.: 5705499124118
ADJUSTABLE SHOWER DRAIN TRIO, LOW
-For installation in corner
-Floor: concrete and tiled
-No membrane, frame: triangular
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Corner |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 123 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 113 |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Shape | Triangular |
| Weight (kg) | 1.29 |
| Weight (lbs) | 2.84 |
-
Approval Information
For approval information, please refer to the below approval certificates.
