HYGIENICPRO GRATING CHANNEL - (697.250.150.57 S)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.250.150.57 S
EAN no.: 5705499138696
Size: 150x500

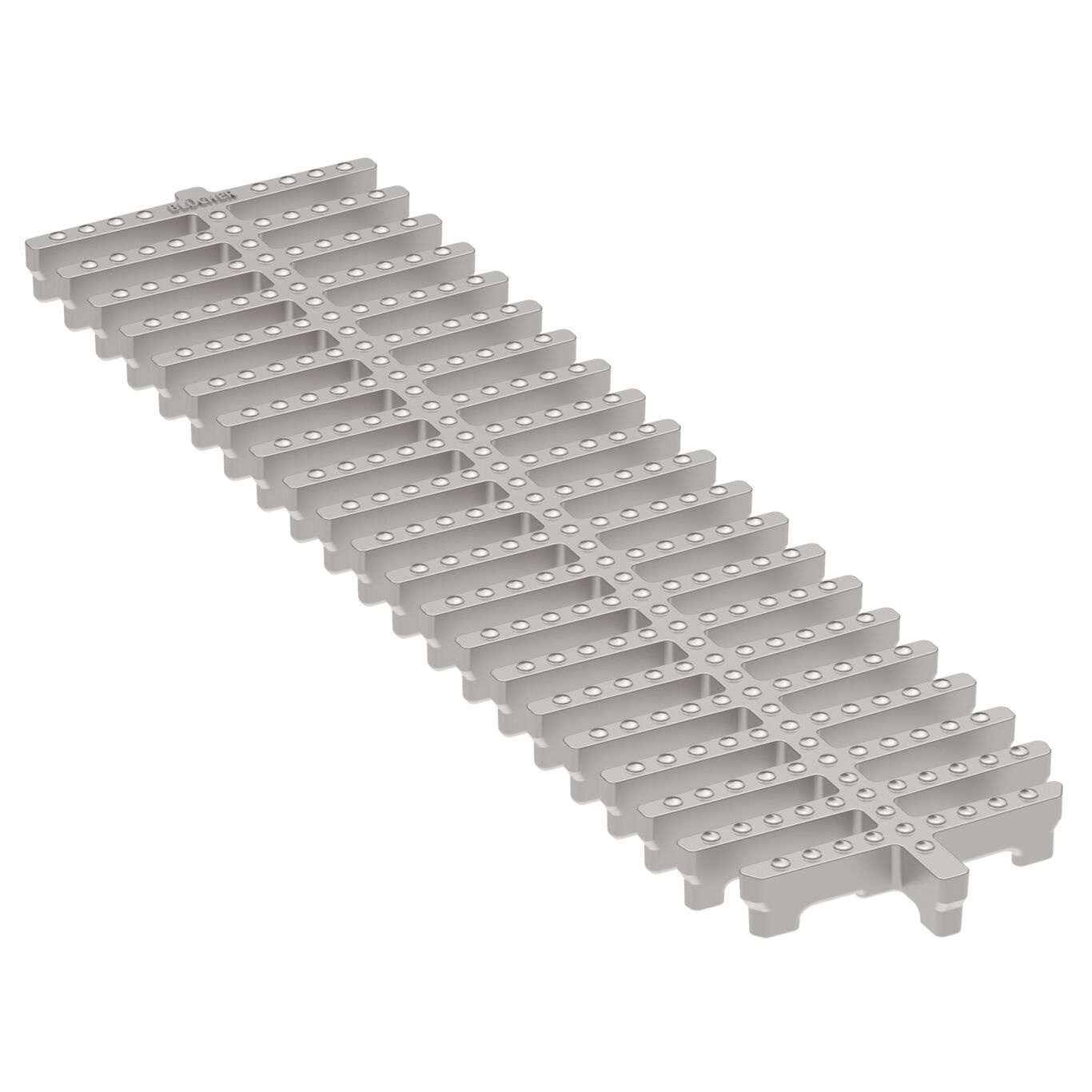

HYGIENICPRO GRATING CHANNEL
-Rounded in one end

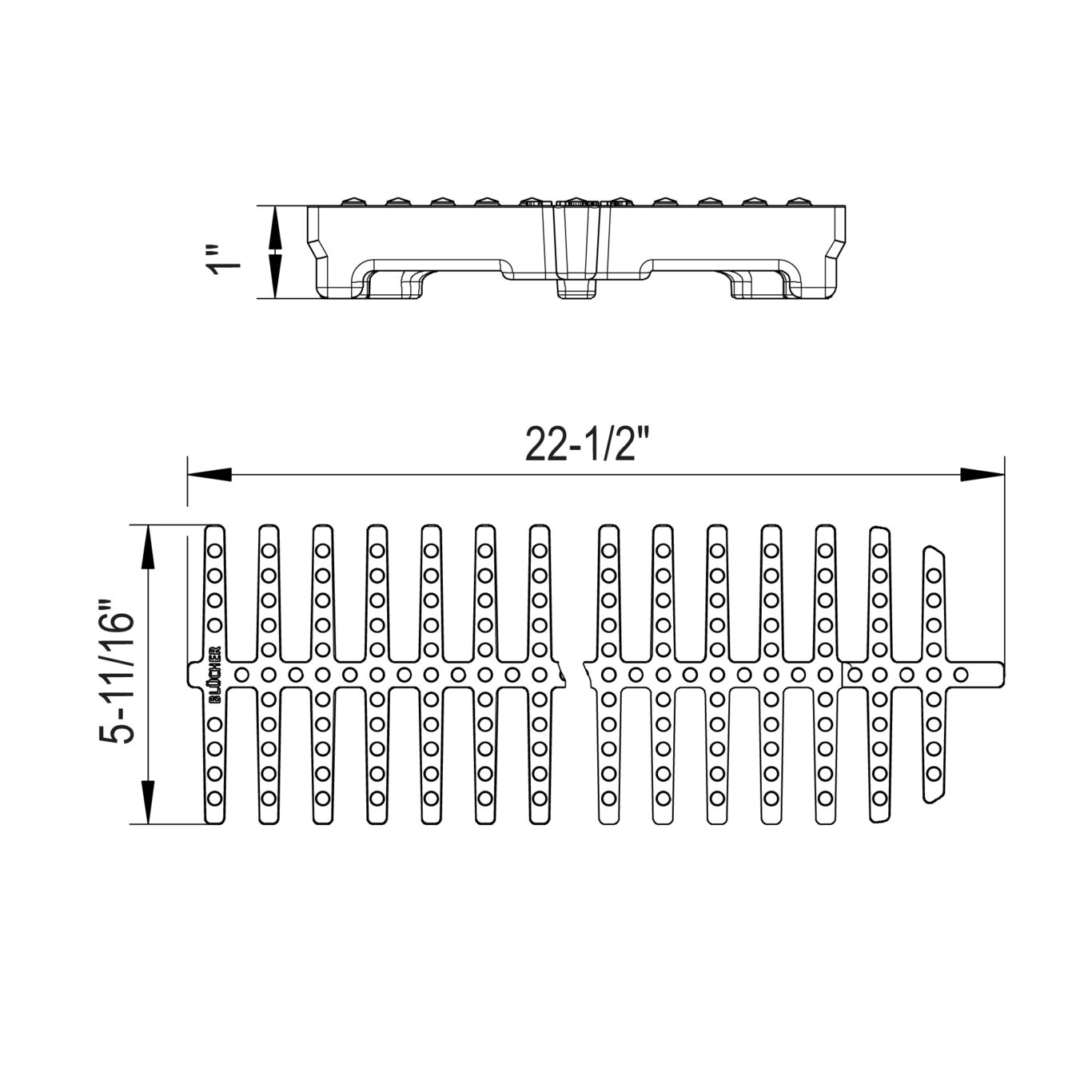

-Grating: 5-11/16 x 22-1/2 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Load class EN1253(kg) | M125 (10000) |
| Load class EN1253(lbs) | M125 (22046) |
| Load Class EN1433 | C250 |
| Load class EN1433(kg) | C250 (16.666) |
| Load class EN1433(lbs) | C250 (36742) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Size of Frame (Inch) | 5-7/8 x 19-5/8 |
| Weight (kg) | 5.28 |
| Weight (lbs) | 11.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
