LADDER GRATING CHANNEL - (697.225.150.50)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.225.150.50
EAN no.: 5705499128642
NRF no.: 3397177
Size: 150x500
LADDER GRATING CHANNEL
-1/4 inch material and fully welded

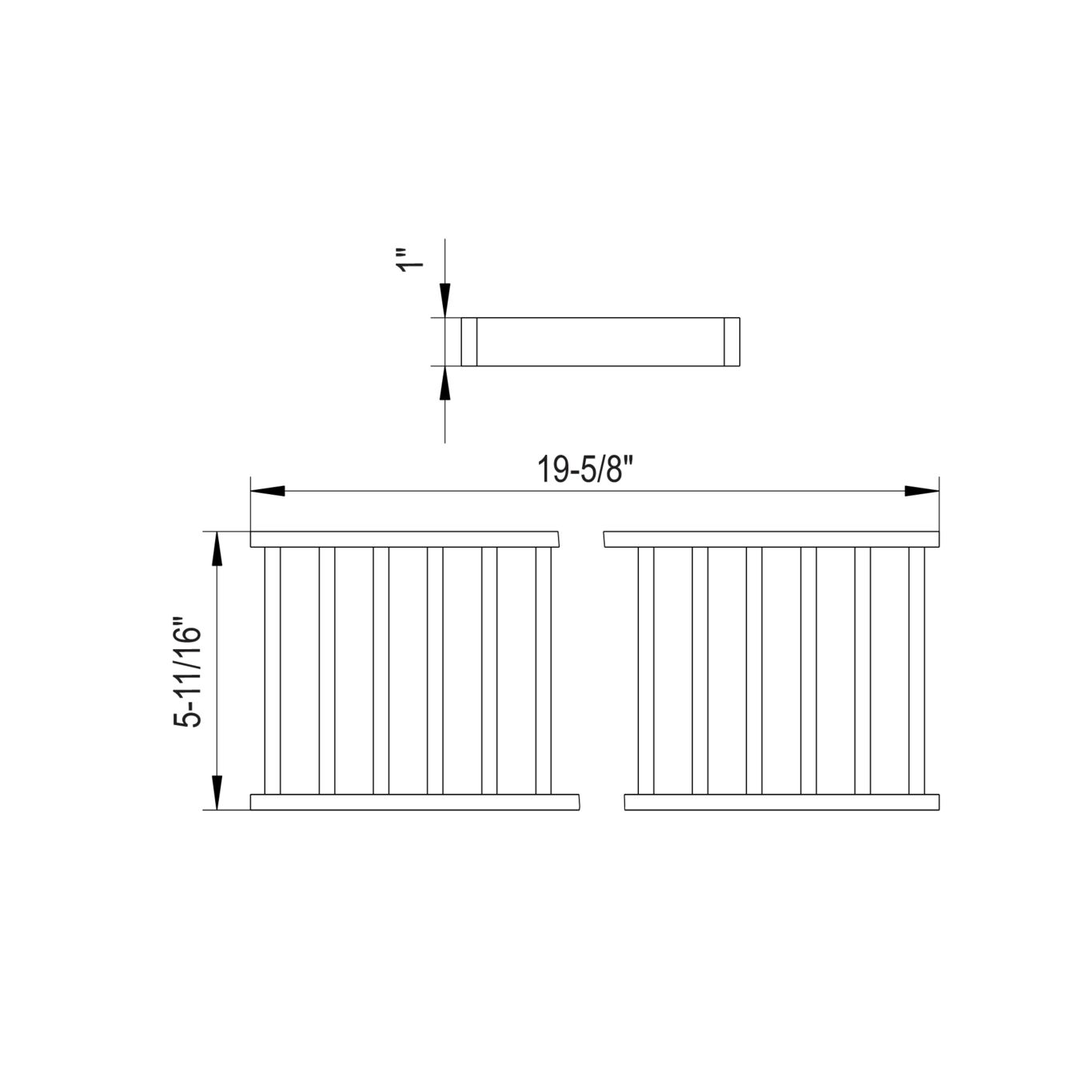

-Grating: 5-11/16 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class ASME A112.6.3 (lbs) | Special Duty (10,524) |
| Load Class EN1253 | P400 |
| Load class EN1253(kg) | P400 (40000) |
| Load class EN1253(lbs) | P400 (88185) |
| Load Class EN1433 | E600 |
| Load class EN1433(kg) | E600 (40.000) |
| Load class EN1433(lbs) | E600 (88185) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Size of Frame (Inch) | 5-7/8 x 19-5/8 |
| Weight (kg) | 5.21 |
| Weight (lbs) | 11.49 |
-
Approval Information
For approval information, please refer to the below approval certificates.
