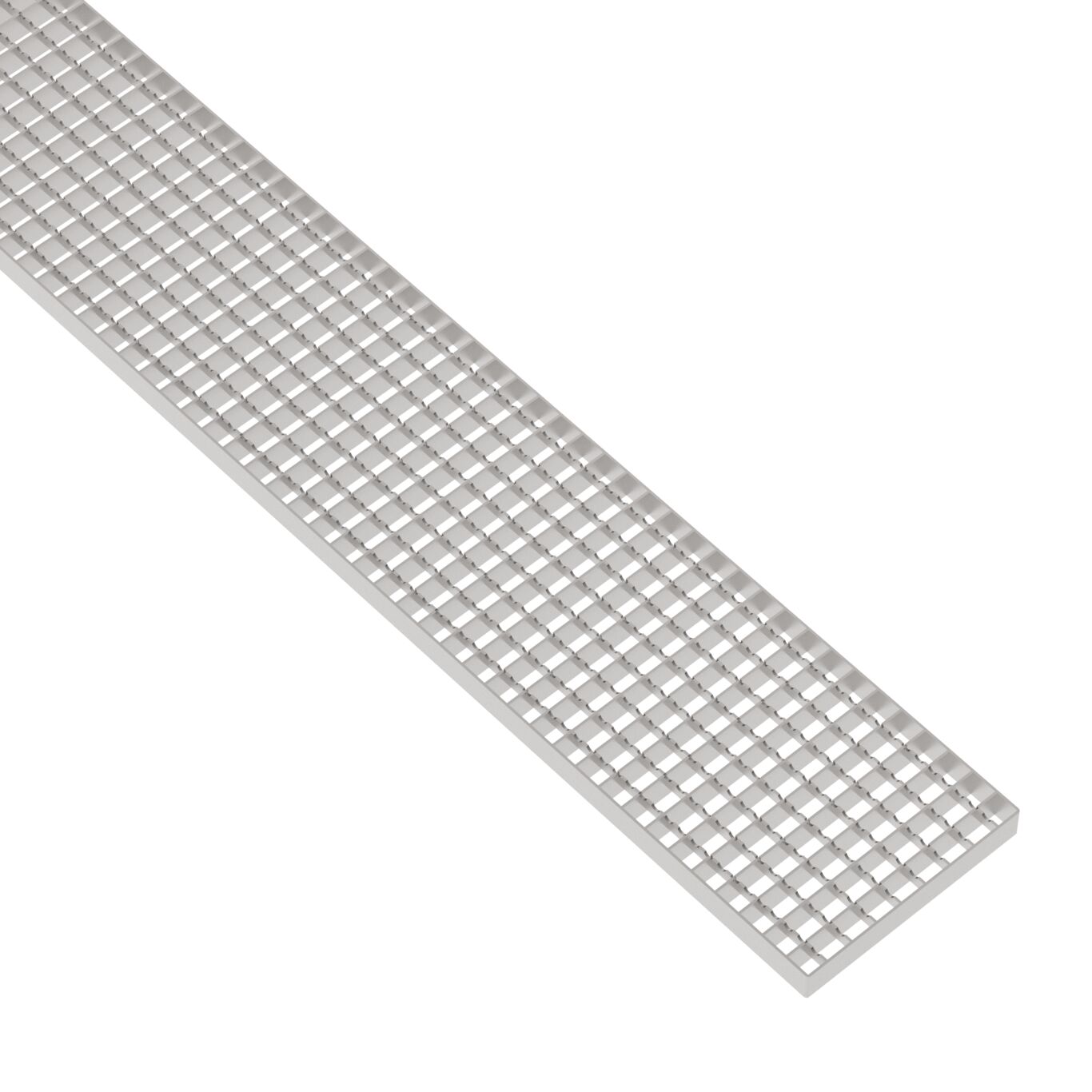

MESH GRATING CHANNEL - (696.223.144.49 S)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 696.223.144.49 S
EAN no.: 5705499124422
Size: 150x500
MESH GRATING CHANNEL

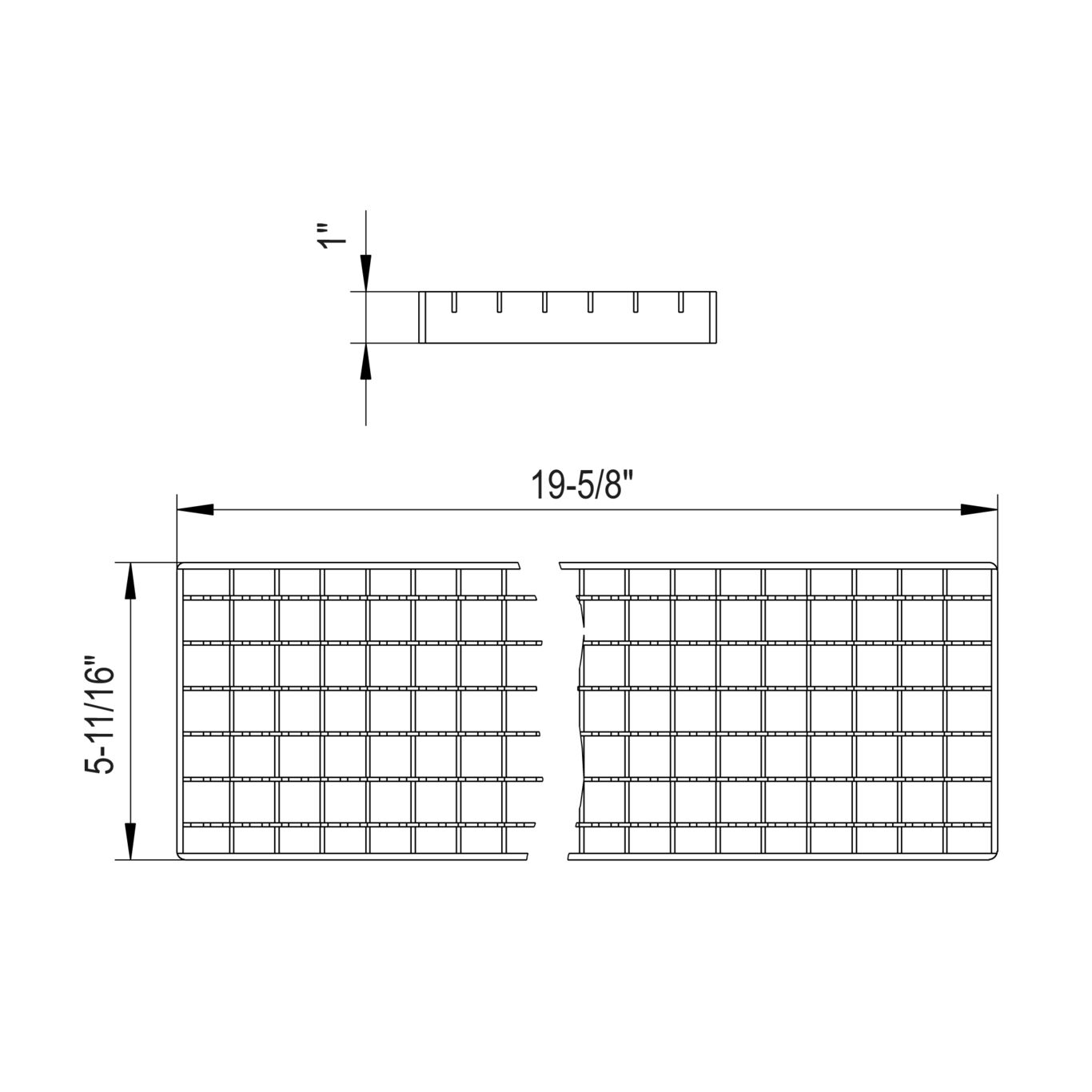

-Grating: 5-11/16 x 19-5/8 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class ASME A112.6.3 (lbs) | Extra Heavy Duty (8,525) |
| Load Class EN1253 | R50 |
| Load class EN1253(kg) | R50 (3500) |
| Load class EN1253(lbs) | R50 (7716) |
| Load Class EN1433 | B125 |
| Load class EN1433(kg) | B125 (9.000) |
| Load class EN1433(lbs) | B125 (19842) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non slip | R12 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Size of Frame (Inch) | 5-7/8 x 19-5/8 |
| Weight (kg) | 2.24 |
| Weight (lbs) | 4.94 |
-
Approval Information
For approval information, please refer to the below approval certificates.
