SLOT GRATING CHANNEL - (697.200.150.49)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.200.150.49
EAN no.: 5705499124552
NRF no.: 3397171
Size: 150x500
SLOT GRATING CHANNEL

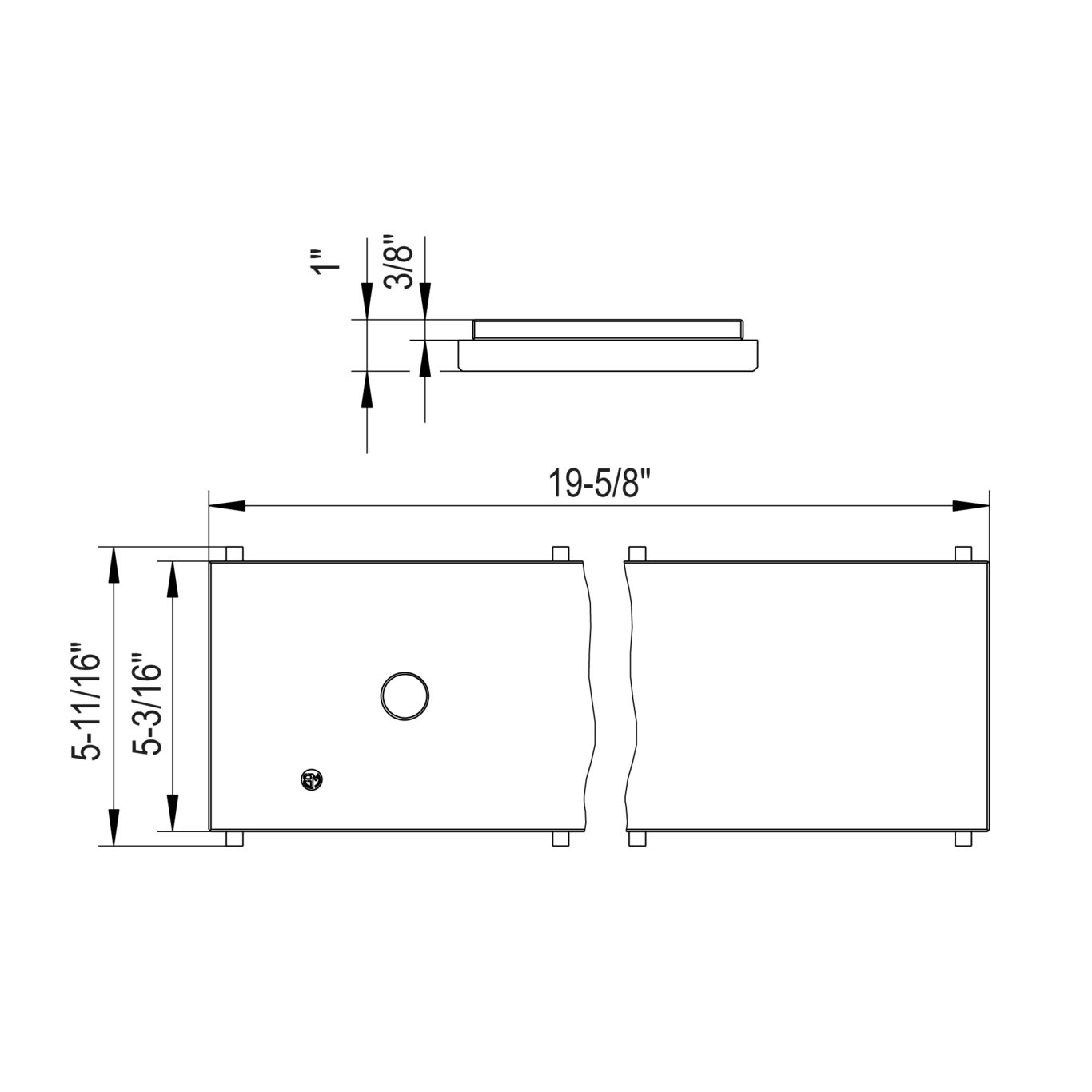

-Grating: 5-11/16 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class ASME A112.6.3 (lbs) | Extra Heavy Duty (8,608) |
| Load Class EN1253 | M125 |
| Load class EN1253(kg) | M125 (14000) |
| Load class EN1253(lbs) | M125 (30865) |
| Load Class EN1433 | C250 |
| Load class EN1433(kg) | C250 (20.000) |
| Load class EN1433(lbs) | C250 (44092) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Size of Frame (Inch) | 5-7/8 x 19-5/8 |
| Weight (kg) | 5.86 |
| Weight (lbs) | 12.92 |
-
Approval Information
For approval information, please refer to the below approval certificates.
