TILED/EPOXY GRATING CHANNEL - (697.020.150.49)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.020.150.49
EAN no.: 5705499128574
NRF no.: 3397158
Size: 150x500
TILED/EPOXY GRATING CHANNEL

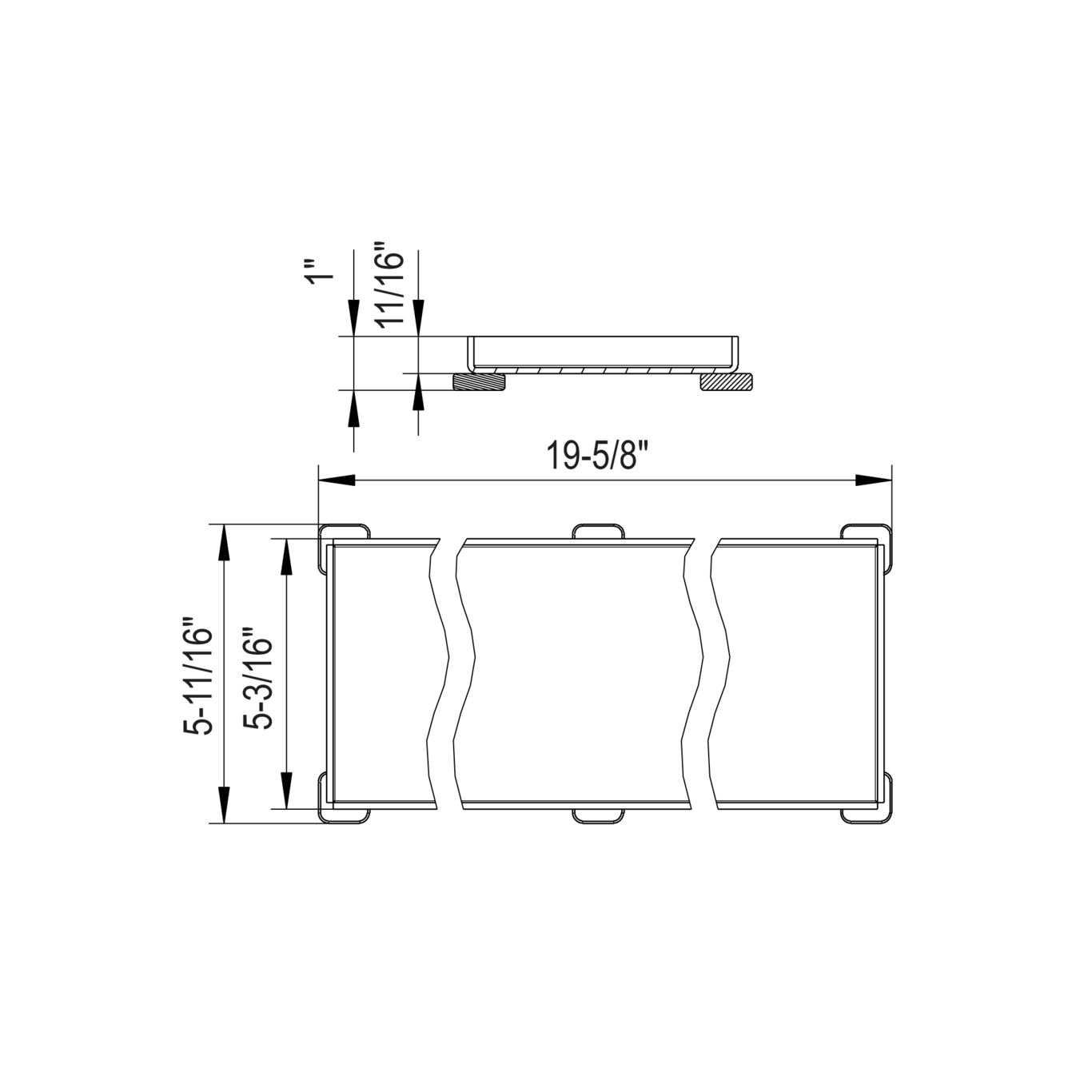

-Grating: 5-11/16 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 (900) |
| Load class EN1253(lbs) | K3 (1984) |
| Load Class EN1433 | A15 |
| Load class EN1433(kg) | A15 (2.000) |
| Load class EN1433(lbs) | A15 (4409) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Size of Frame (Inch) | 5-7/8 x 19-5/8 |
| Weight (kg) | 2.07 |
| Weight (lbs) | 4.56 |
-
Approval Information
For approval information, please refer to the below approval certificates.
