HYGIENICPRO GRATING CHANNEL - (697.250.200.50)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.250.200.50
EAN no.: 5705499117967
NRF no.: 3397184
LVI no.: 3304989
Size: 200x500

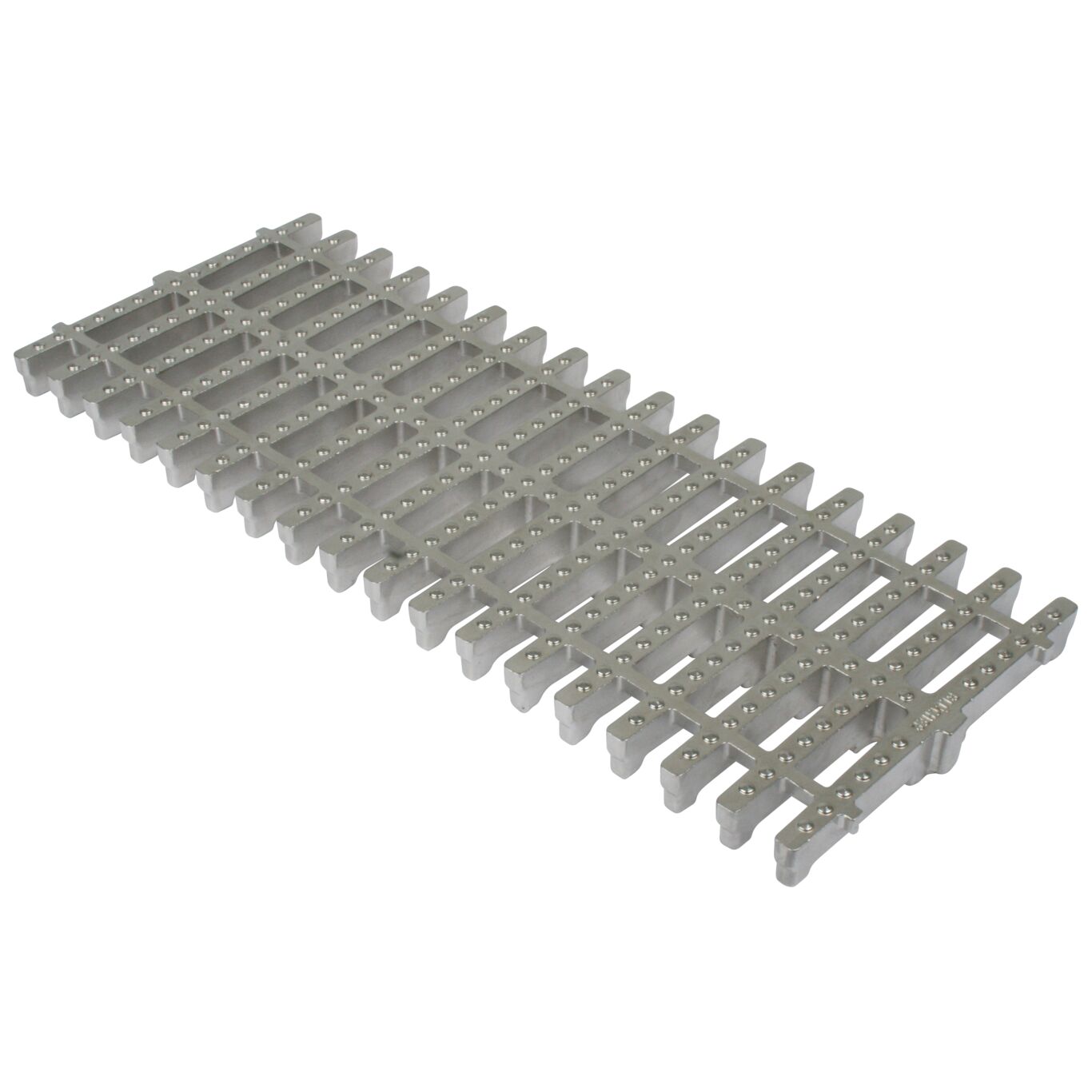

HYGIENICPRO GRATING CHANNEL

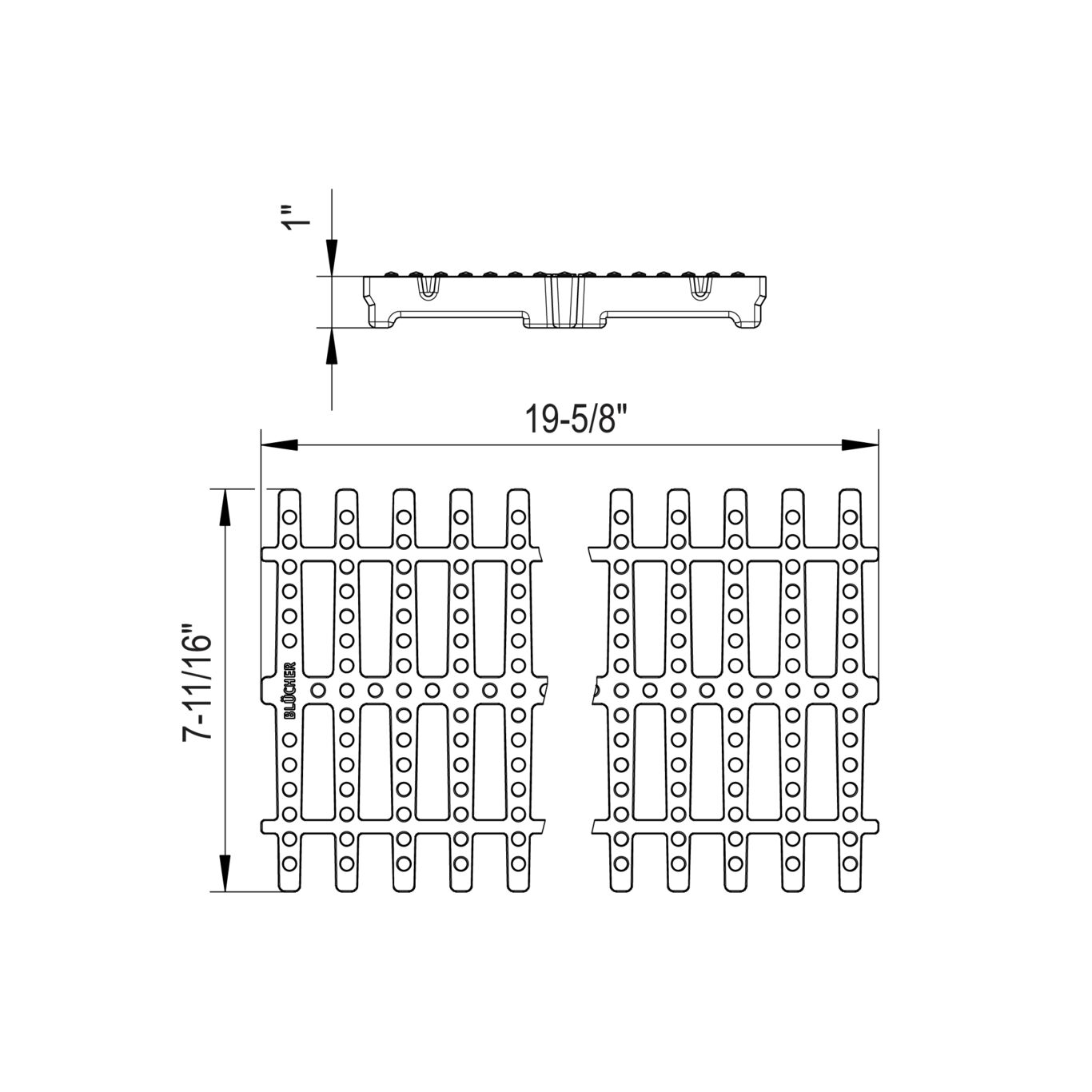

-Grating: 195 x 19-5/8 inch
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class ASME A112.6.3 (lbs) | Special Duty (10,506) |
| Load Class EN1253 | M125 |
| Load class EN1253(kg) | M125 (10000) |
| Load class EN1253(lbs) | M125 (22046) |
| Load Class EN1433 | B125 |
| Load class EN1433(kg) | B125 (13.000) |
| Load class EN1433(lbs) | B125 (28660) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 25 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Size of Frame (Inch) | 7-7/8 x 19-5/8 |
| Weight (kg) | 7.5 |
| Weight (lbs) | 16.53 |
-
Approval Information
For approval information, please refer to the below approval certificates.
