LADDER GRATING CHANNEL - (697.125.200.50)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.125.200.50
EAN no.: 5705499103502
VVS no.: 154255020
NRF no.: 3397163
Size: 200x500
LADDER GRATING CHANNEL

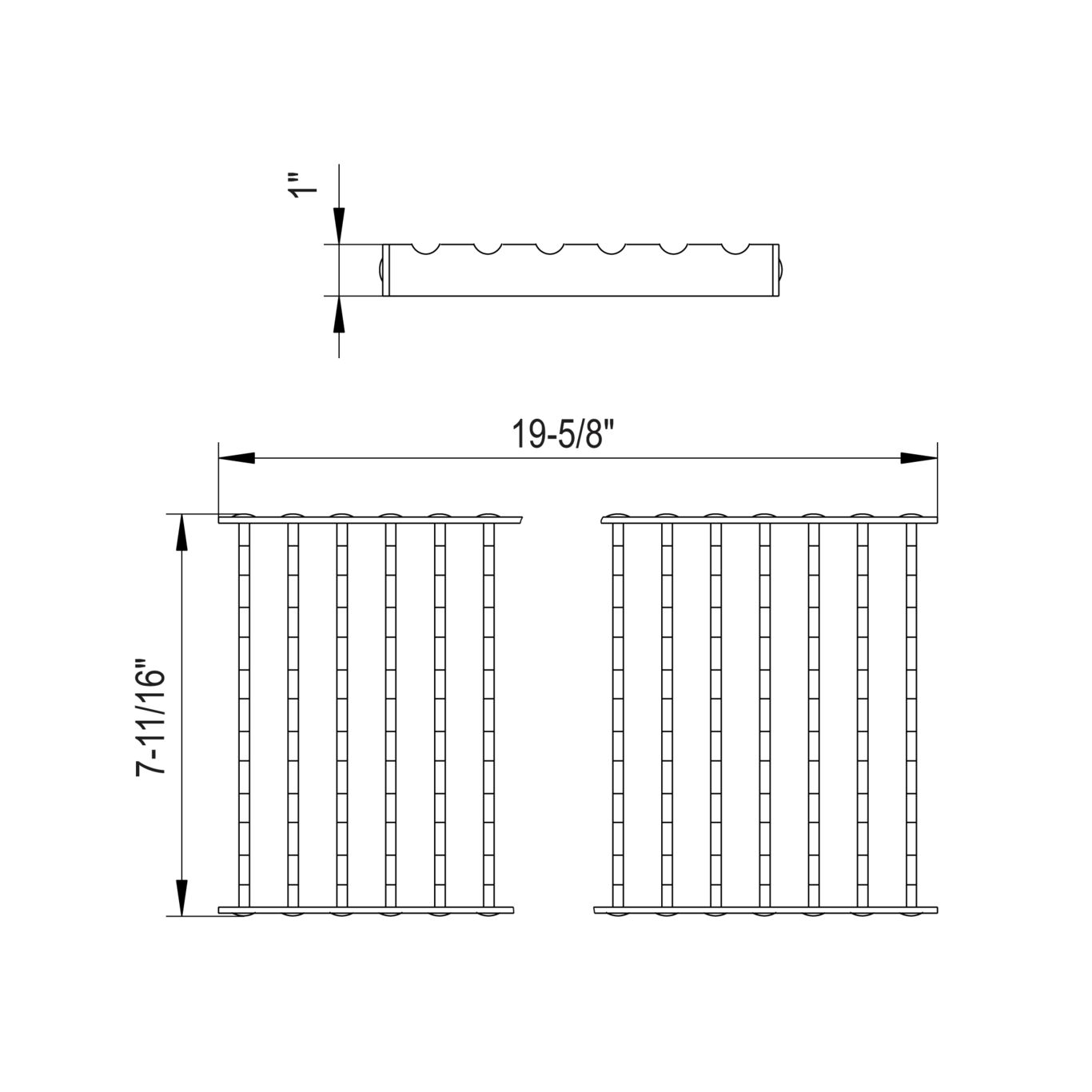

-1 inch height
-Grating: 195 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load class EN1253(kg) | R50 (7000) |
| Load class EN1253(lbs) | R50 (15432) |
| Load Class EN1433 | B125 |
| Load class EN1433(kg) | B125 (14.000) |
| Load class EN1433(lbs) | B125 (30865) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 200x500 |
| Size of Frame (Inch) | 7-7/8 x 19-5/8 |
| Weight (kg) | 4.19 |
| Weight (lbs) | 9.24 |
-
Approval Information
For approval information, please refer to the below approval certificates.
