LADDER GRATING CHANNEL - (697.225.200.50)

Part Of the Series: Grating-Channel-200

Type no.: 697.225.200.50

EAN no.: 5705499128659

NRF no.: 3397178

Size: 200x500


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class ASME A112.6.3 (lbs) Special Duty (10,520)
Load Class EN1253 N250
Load class EN1253(kg) N250 (20000)
Load class EN1253(lbs) N250 (44092)
Load Class EN1433 C250
Load class EN1433(kg) C250 (20.000)
Load class EN1433(lbs) C250 (44092)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R11
Number of Screws 0
Shape Rectangular
Size (mm) 200x500

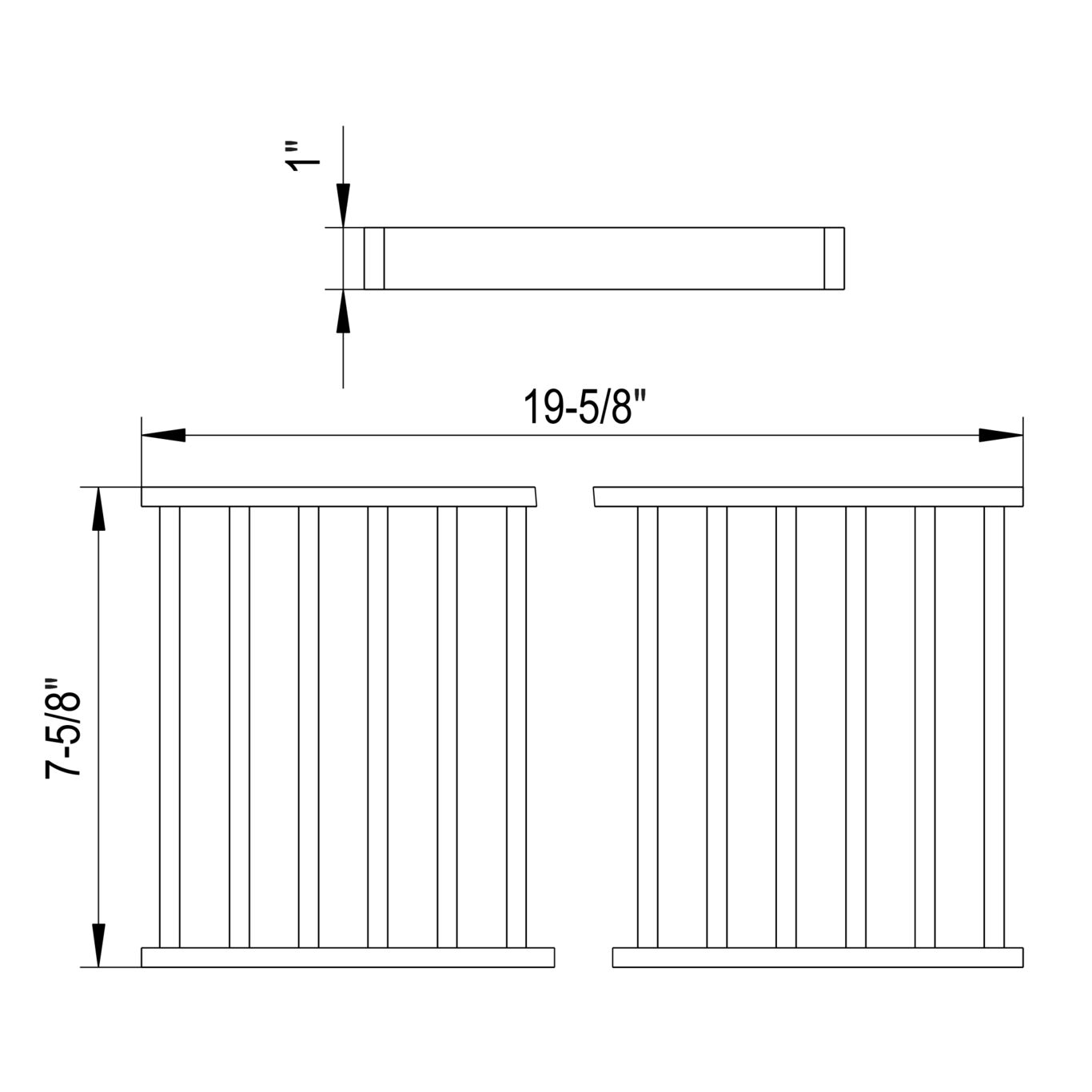

Size of Frame (Inch) 7-7/8 x 19-5/8
Weight (kg) 6.63
Weight (lbs) 14.62
